715001456, Rev. A 2 of 4
Connecting your detector
For detailed installation information and cautionary statements regarding this product, refer to the
2489 UV/Visible Detector Operator’s Guide.

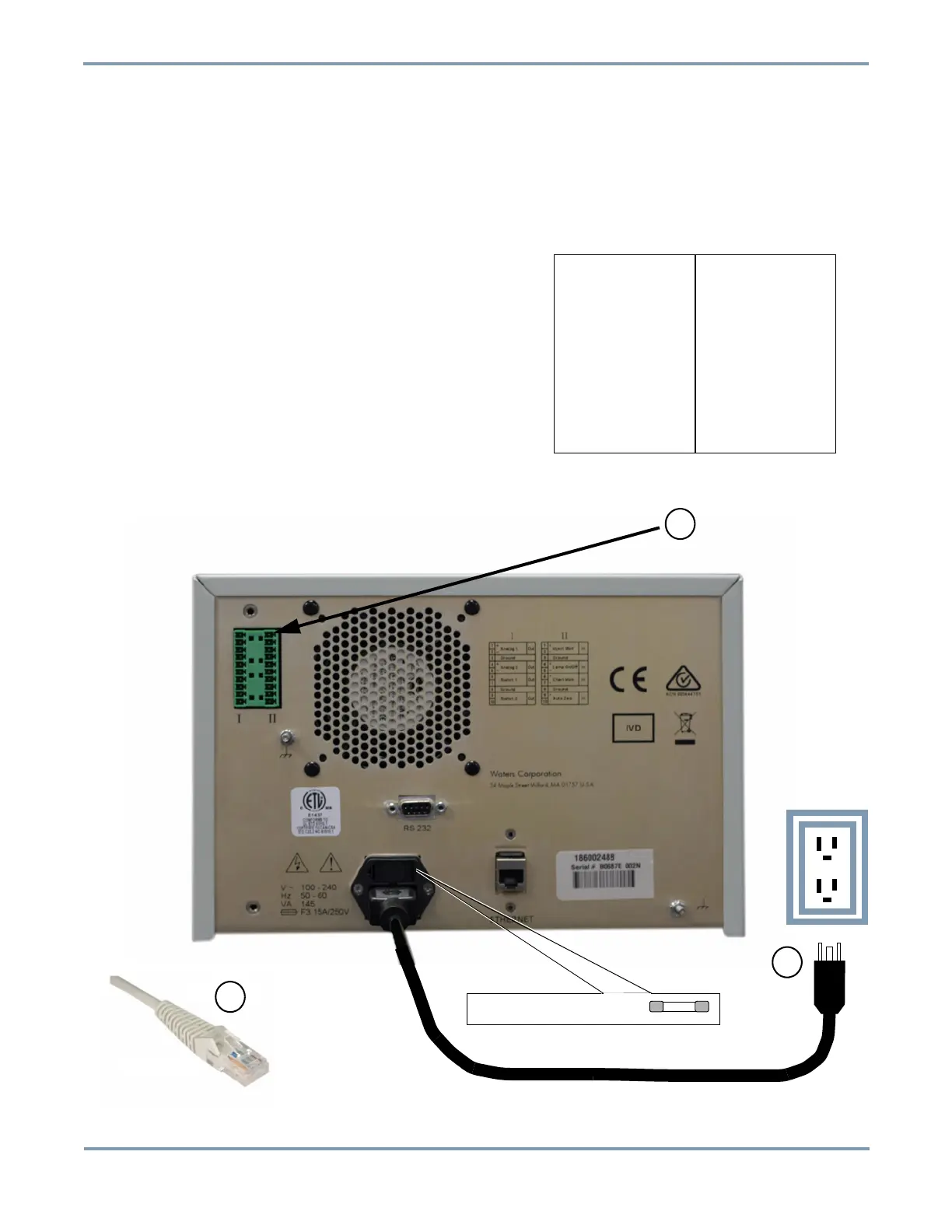

Electrical Connections
A. Connect any required event or signal cables.
B. If necessary, connect an Ethernet cable from the
detector to the system LAN switch or to the
network card on the acquisition computer.
C. Connect the power cable to a grounded receptacle.
Analog 1 +
Analog 1 –
Ground
Analog 2 +
Analog 2 –
Switch 1
Switch 1
Ground
Switch 2
Switch 2
1
2
3
4
5
6
7
8
9
10
Inject Start +
Inject Start –
Ground
Lamp On/Off +
Lamp On/Off –
Chart Mark +
Chart Mark –
Ground
Auto Zero +
Auto Zero –
I
II
Fuse: 3.15A / 250V
C
A
B
Ethernet Cable
110/220 V
