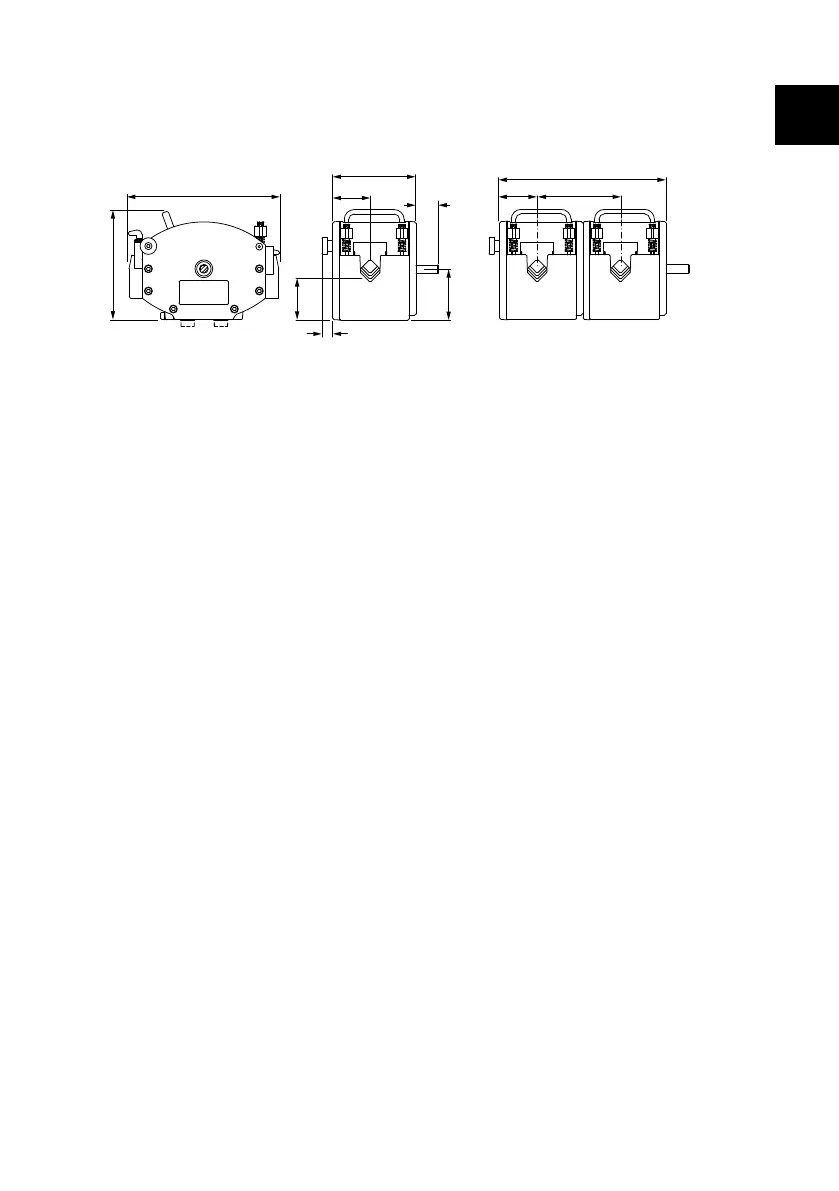

20 Dimensions
MARLOW
WATSON
A
B
D
H
C
G
F
E
I
J K
701RXA/RA
A
270mm (10.6") 701RA/RXA
310mm (12.2") 701 REA/REXA
B 200mm (7.87") (optionalfeet additional 10mm)
C 70mm (2.76")
D 20mm (0.79")
E 65mm (2.56")
F 150mm (5.91")
G 40mm (1.57")
H 92mm (3.62")
I 300mm (11.8")
J 65mm (2.56")
K 150mm (5.91")
21 Replacements
Spares and replacements should be ordered through Watson-Marlow pumps or through an official
representative. Only Watson-Marlow spares and replacements should be used in order to guarantee
continued compliance with the ATEX directive.
Watson-Marlow’s policy is to provide spare parts for all products for a minimum of 7 years from
discontinuation. The ability to implement this policy is not entirely within Watson-Marlow’s control and
cannot be guaranteed, but every effort willbe made to honour this policy.
Please contact your local Watson-Marlow representative for assistance.
PB0348:m-701atex-en-04 31
