Watts 315 User Manual

9

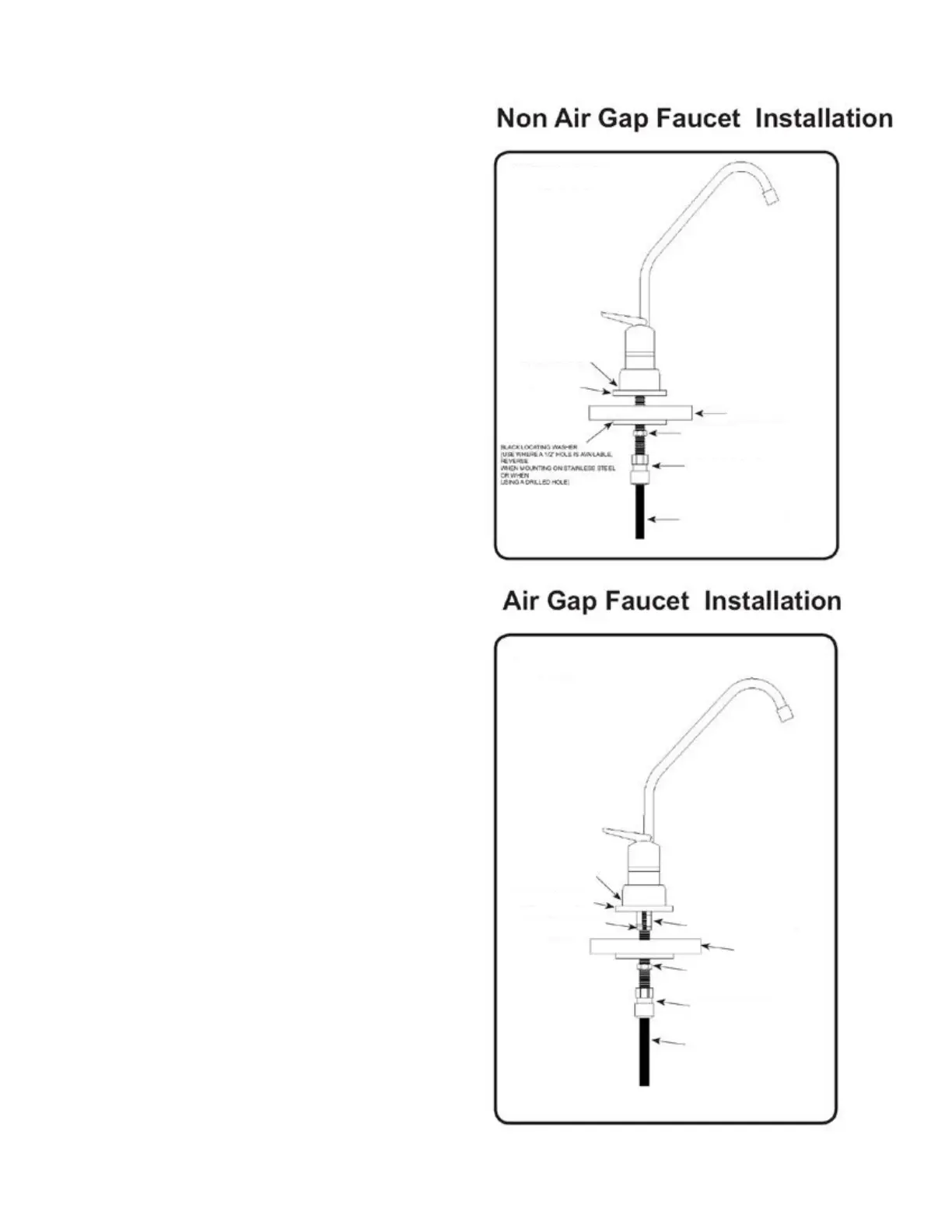

Typical RO Faucet Installation
3/8”BLUE TUBING FROM
RO MODULE
1/4” RED LINE TO
RO MODULE
3/8” BLUE TUBING FROM
RO MODULE
Drinking Feed Tube Connection
Non Air Gap Faucet
Locate the 3/8” threaded quick connect tting in
the parts bag. After the faucet has been mounted,
thread the tting on the to faucet stem. Connect the
3/8” blue feed tube to the 3/8” quick connect t-
ting on the faucet stem. The nal polishing lter is
clipped on to the top of the RO membrane
housing. Attached to the polishing lter is a 3/8”
quick connect elbow tting. Attach the open end of
the 3/8” blue tubing from the RO faucet to the 3/8”
quick connect elbow on the polishing lter.
With Non Air-Gap faucets this will be the only tube
connected to the RO faucet.
Air Gap Faucet
Follow the drinking feed tube connection instruc-
tions above. Connect the 1/4” drain tube from the
RO module up to the 1/4” tting on the RO faucet.
The 3/8” drain tube from the RO faucet will connect
to the 3/8” drain saddle.
3/8” FAUCET CONNECTOR
LOCK WASHER
COUNTER TOP/SINK
ESCUTCHEON PLATE
BLACK RUBBER
WASHER
3/8” BLUE TUBING FROM
RO MODULE
3/8” FAUCET CONNECTOR
LOCK WASHER
COUNTER TOP/SINK
ESCUTCHEON PLATE
BLACK RUBBER
WASHER
3/8” LINE TO DRAIN
SADDLE

Watts 315 Specifications

General

Brand	Watts
Model	315
Category	Water Filtration Systems
Language	English
