10
Use the 1/4” Drain Saddle with non air-gap faucet and 3/8” with air-gap faucet.

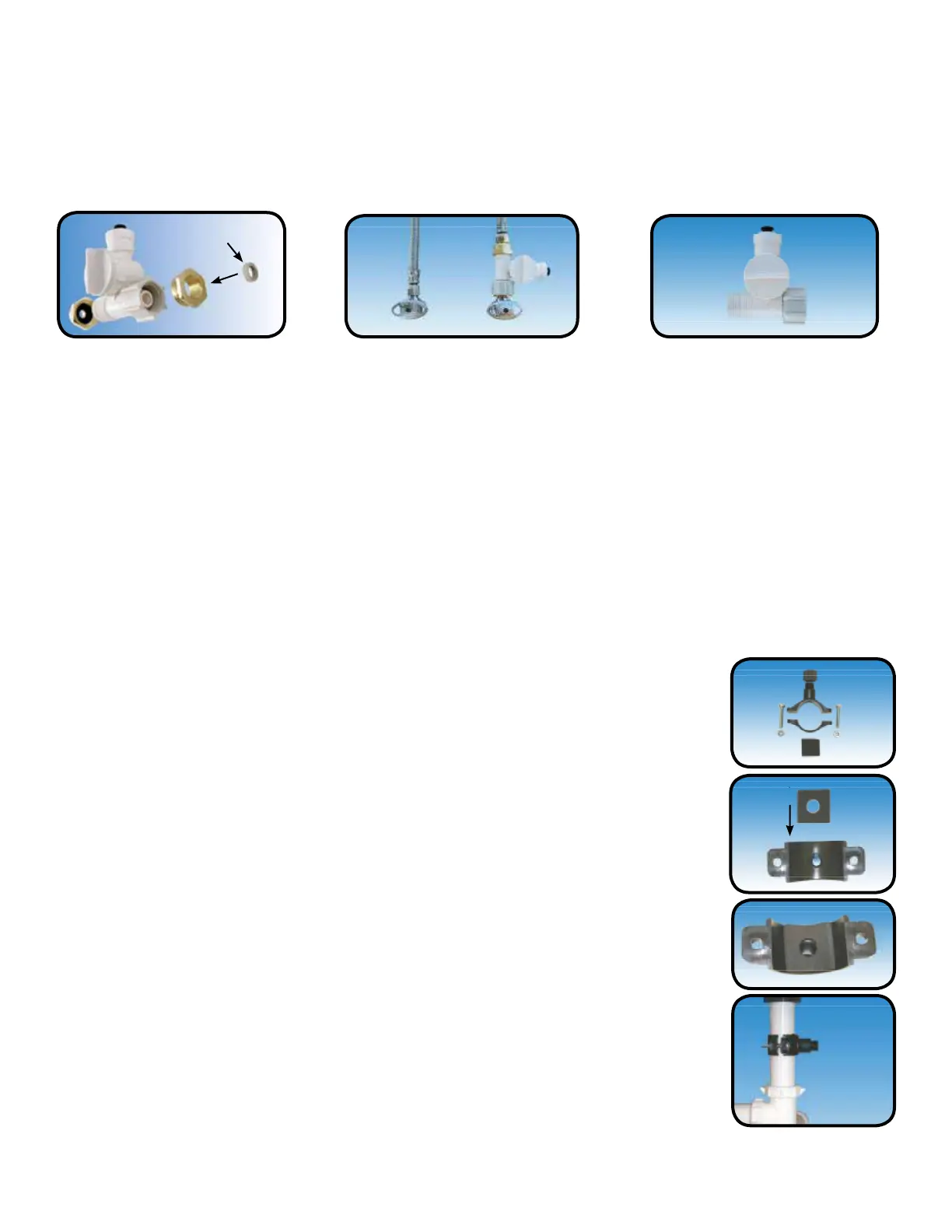

DRAIN SADDLE INSTALLATION
1)
2)
3)
The drain saddle must be mounted at least 1 ½” above the nut of the P-trap or cross bar
from the garbage disposal to insure proper drainage. Assemble the drain saddle around
the drain pipe at the best available location. Using Phillips screw driver tighten screws
evenly and securely on both sides of the drain saddle. Keep the plastic compression
nut off at this time.
The small square black foam gasket with a circle cut out of the middle must be applied
to the inside of the drain saddle. Remove sticky tape backing and stick to the drain
saddle as shown.
1 Black compression nut 1 Semicircle bracket with opening
2 Screws 1 Foam gasket
2 Nuts for screws 1 Semicircle bracket
Gather the pieces of the drain saddle
Caution:
Do not over tighten the screws. It may crack the drain saddle.
If you have a garbage disposal, do not install the drain saddle near it. Installation
of the drain saddle must be either above the garbage disposal, or if a second sink
drain is available, install it above the cross bar on the second drain. Installation of
the drain saddle near a garbage disposal may cause the drain line to plug.
Caution:
Turn off the cold water supply to the faucet by turning the angle stop valve completely off.
Attach the adapt-a-valve as illustrated in the three photos above, choosing the conguration that ts your
plumbing.
FEED WATER VALVE INSTALLATION
Conguration for 3/8”
(With Brass Fittings)
* Insert White Washer
Hot
Supply
Cold
Supply
Conguration for 1/2”
(Without Brass Fittings)
* Washer
Do not use Teon tape with the Adapt-a-Valve.WARNING:
Caution:
Water supply line to the system must be from the cold water supply line only.
Hot water will severely damage your system.
1)
2)
