Benchmark Platinum-Edge: Operation-Service Manual
SECTION 8 – MAINTENANCE
OMM-0137_D • GF-211 • 7/16/2019 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 107 of 146

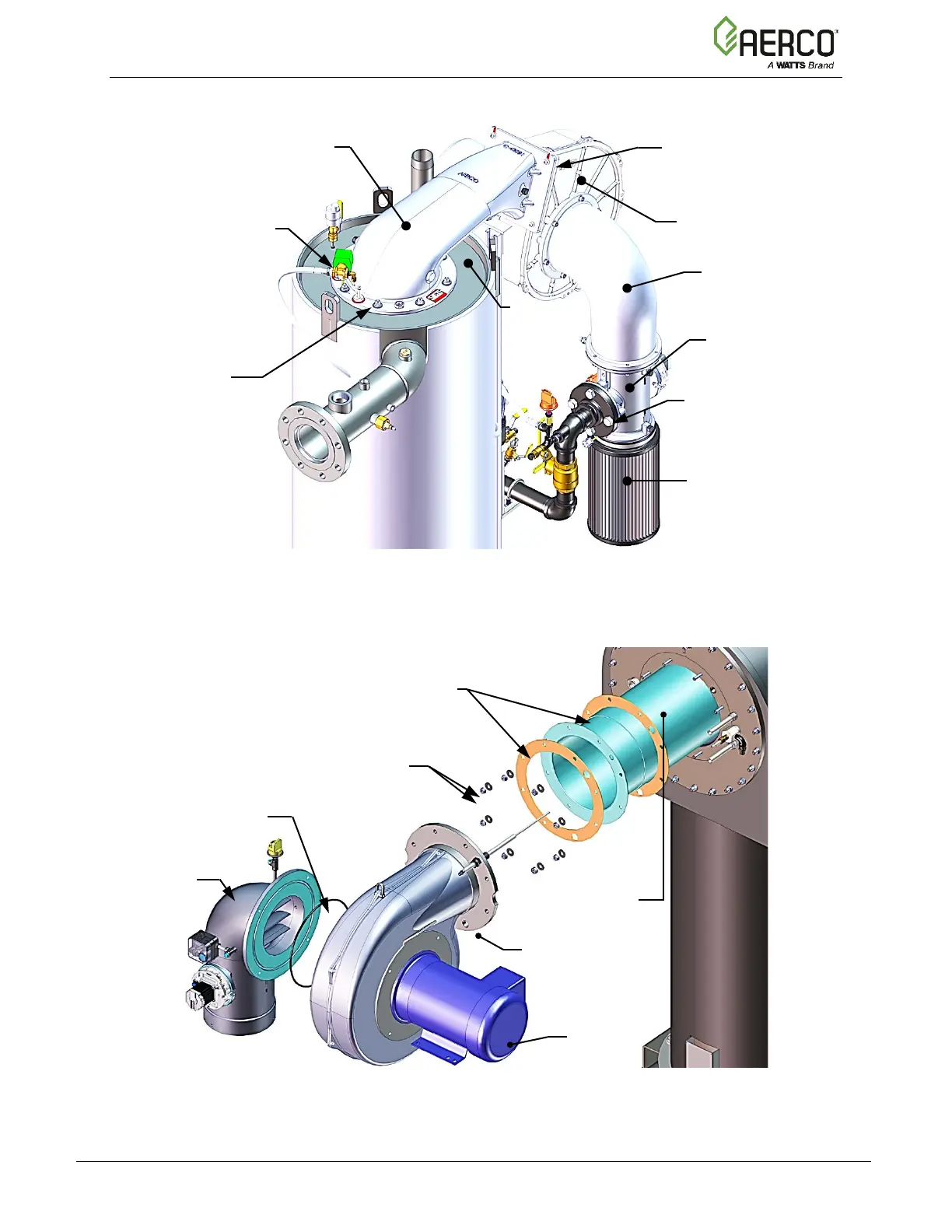

Figure 8-5c: Burner Assembly Mounting Details – BMK 2500/3000
Figure 8-5d: Burner Assembly Exploded View – BMK 5000 & 6000
BLOWER GASKET
(P/N 81157)
BLOWER PLENUM
AIR FILTER
(P/N 88014)
A/F VALVE PLENUM
BLOWER
BURNER
PLATE
3/8”-16
HEX NUTS
(8 each)
AIR/FUEL VALVE
IGNITER-
INJECTOR
ASSEMBLY
5/8” NUTS
& BOLTS (4 each)
AIR/FUEL
VALVE
BLOWER TO AIR-FUEL
VALVE O-RING
(P/N 88016)
BLOWER FLANGE
BLOWER
3/8” HEX NUTS/WASHERS (8 EA.)
BURNER GASKETS (2)
(P/N 81159)
BURNER
