Current outdoor air temperature as measured by the outdoor
sensor. This is also the default display for the control.
Section
Advanced
Installer
Display Description Range
Current boiler supply water temperature as measured by the
boiler sensor.
14 to 266°F
(-10 to 130°C)
B3
Target boiler supply is the temperature the control is currently
trying to maintain at the boiler sensor.
---, 14 to 266°F
(---, -10 to 130°C)
B1
B3
-67 to 149°F
(-55 to 65°C)
The desired room air temperature during an occupied
(Day) period.
35 to 100°F
(2 to 38°C)
B2
The desired room air temperature during an
unoccupied (Night) period.
35 to 100°F
(2 to 38°C)
B2
The design outdoor air temperature used in the
heat loss calculation for the heating system.
-60 to 32°F
(-51 to 0°C)
B2
The type of terminal units that are being used in the
heating system.
B2
Section
Advanced
Installer
Display Description Range
Actual
Setting
The design indoor air temperature used in the heat
loss calculation for the heating system.
35 to 100°F
(2 to 38°C)
B3
The design supply water temperature used in the
heat loss calculation for the heating system.
70 to 220°F
(21 to 109°C)
B3
1 (High Mass Radi-
ant), 2 (Low Mass
Radiant), 3 (Fancoil),
4 (Fin-tube Convec-
tor), 5 (Radiator),
6 (Baseboard)

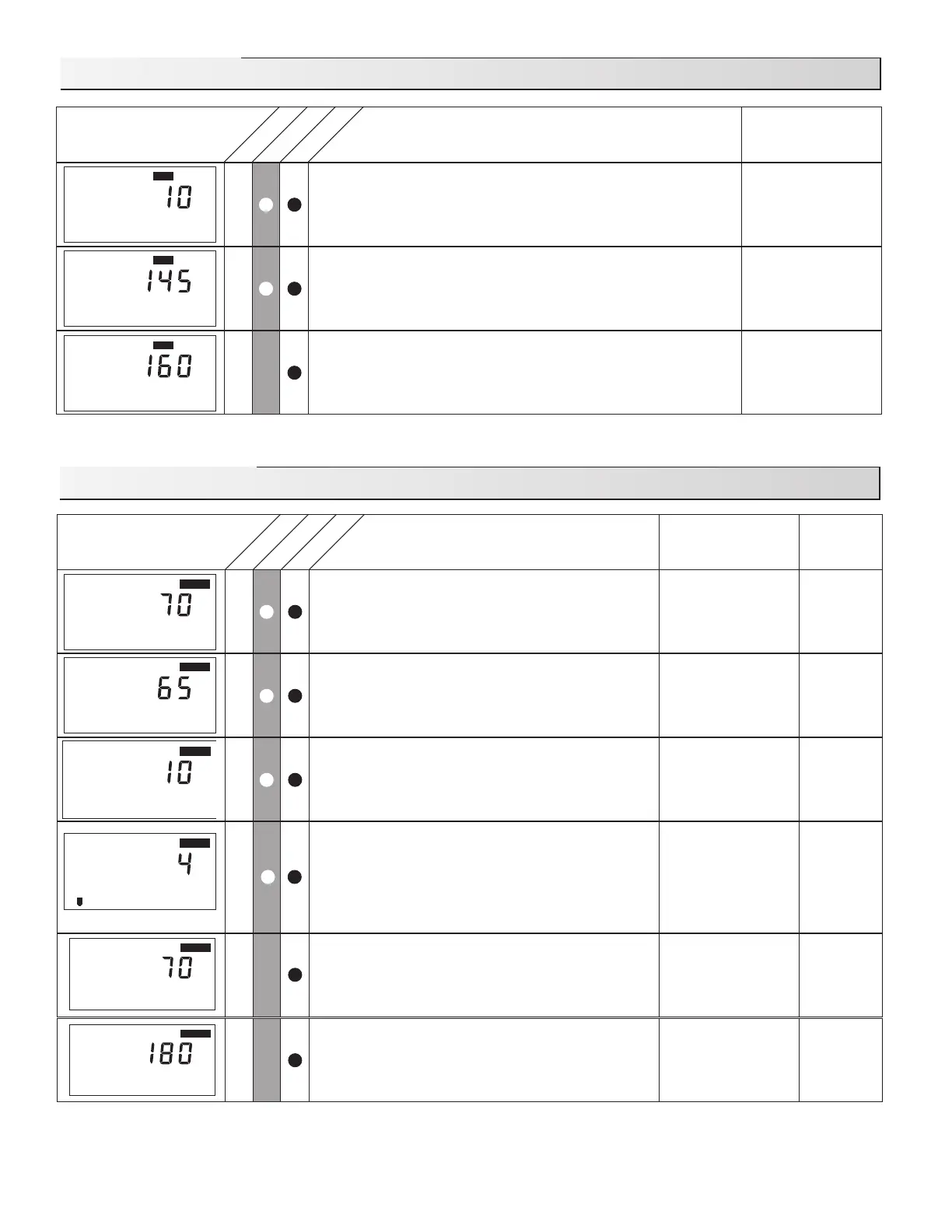

View Menu (1 of 1)
Adjust Menu (1 of 2)
16 of 20
© 2019 tekmar 256
_
D - 09/19
