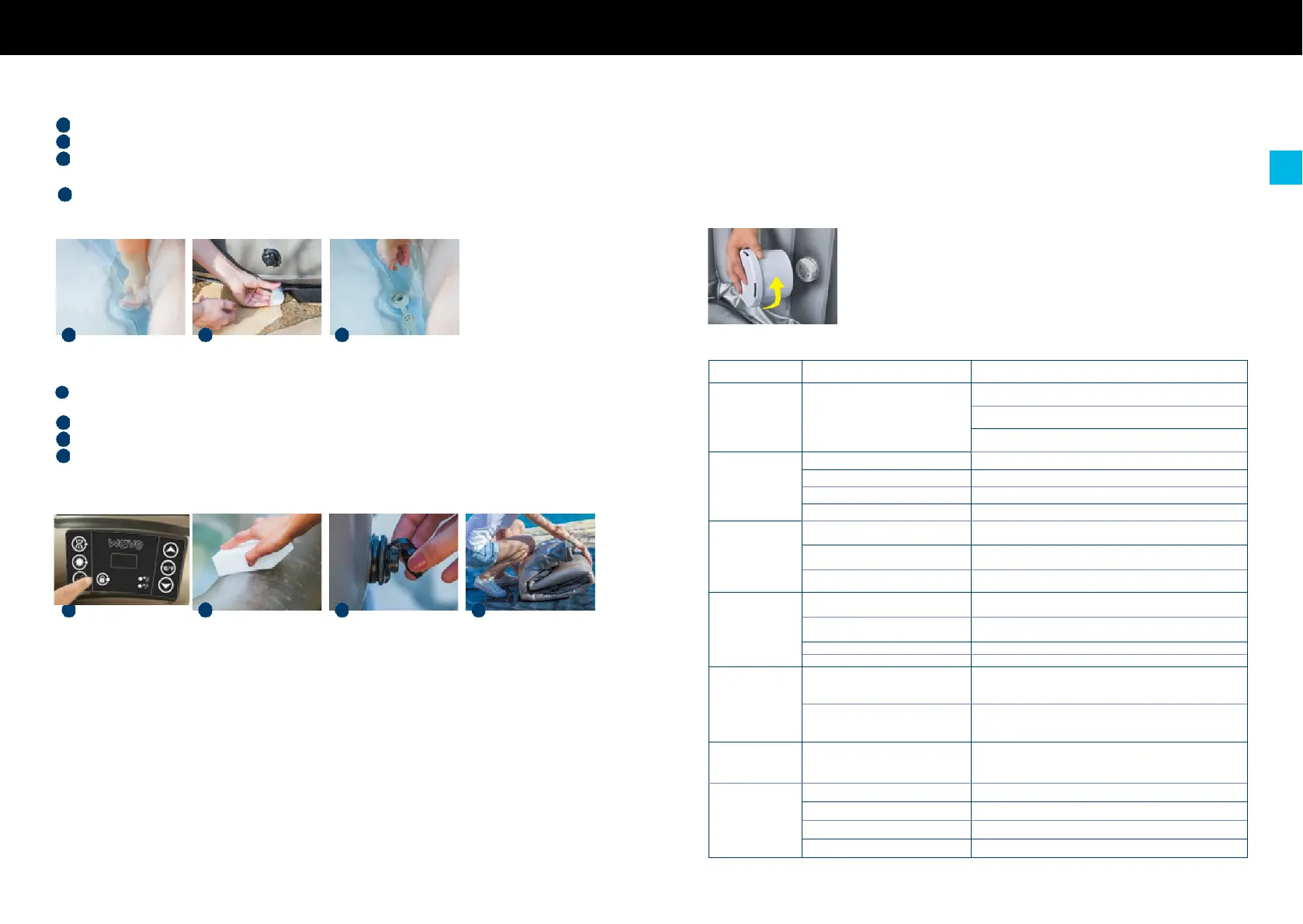

5.3. Drainage and storage
Drainage
Check the stopper on the bottom of the spa and the drain cap.
Unscrew the drain cap.
Remove the stopper on the bottom of the spa. Completely drain all water from the
spa.
4 Once empty, the spa can be cleaned with soap and water.
Storage
5 Press the bubbling button to blow out the water inside the jet holes. Unplug the
pump, remove the filter cartridge from the inner wall of the spa.
Use a towel to wipe off the spa, dry for 24 hours.
Unscrew the valves to deflate the spa.
Fold the spa.
It is recommended to store the spa in its original package in a warm dry place.
5.4. Repair kit
Little holes or punctures can be repaired with the repair kit included and glue can be
adhered to the spa liner.
1. Find the leak.
2. Thoroughly clean the area surrounding the leak.
3. Cut a piece of repair material in round shape, which should be larger than the
damaged area.
4. Apply adhesive to the back of the patch and around the area to be repaired.
5. Put the patch on the damaged area and press down firmly. Allow 12 hours for repair
to dry. After the patch has dried, apply glue around the edges for a complete seal (dry
4 hours). Ensure NO bubbles are left under the patch.
6.1. Troubleshooting
Here are some useful tips to help you to diagnose and rectify common problems
Reference
Inlet – The inlet is where the filter is attached
Outlet – The water outlet is directly above of the filter and is where the hot water
is recirculated back into the spa from the heater unit.
Problem
Cause
Solution
Control panel
screen does not
operate
Check power source
Power failure
Reset the RCD plug / Check if the wiring system is adapted to
the power of the pump unit (1540W)
Contact service centre for service if it does not reset
SPA pump does not
heat properly
Temperature set is too low
Set to a higher temperature
Filter Cartridge is dirty
Clean or Replace the cartridge (see chapter 5.2)
Too low water level
Fill water to minimum water level
Heating element defective
Contact service centre
Bubble system
does not work
Pump is overheating
Cut off the power and wait until the pump has cooled.
Auto shut-down feature (30min) is
activated
Press the bubble button to reactivate
Malfunction of the pump unit
Contact service centre if it does not reset
Water filtration does
not work
Filter Cartridge is dirty
Clean or Replace the cartridge (see chapter 5.2)
Inlet and outlet blocked
Clean the inlet and outlet
Air inside the pump
Fill water to minimum water level
Malfunction of the pump unit
Contact service centre if it does not reset
Pump leakage
Adaptor seal in wrong position
Replace the seal in the right position
Water leakage from pump body
Check the pump body, Contact service centre
Spa leakage
Spa is torn or punctured
Use provided repair kit (see chapter 5.4)
Water is not clean
Insufficient filtering time
Filters must be changed once a week
Filter Cartridge is dirty
Clean or Replace the cartridge (see chapter 5.2)
Spa filled water quality
Change the spa water completely
Improper water treatment
Refer to the chemical manufacturer’s instructions
