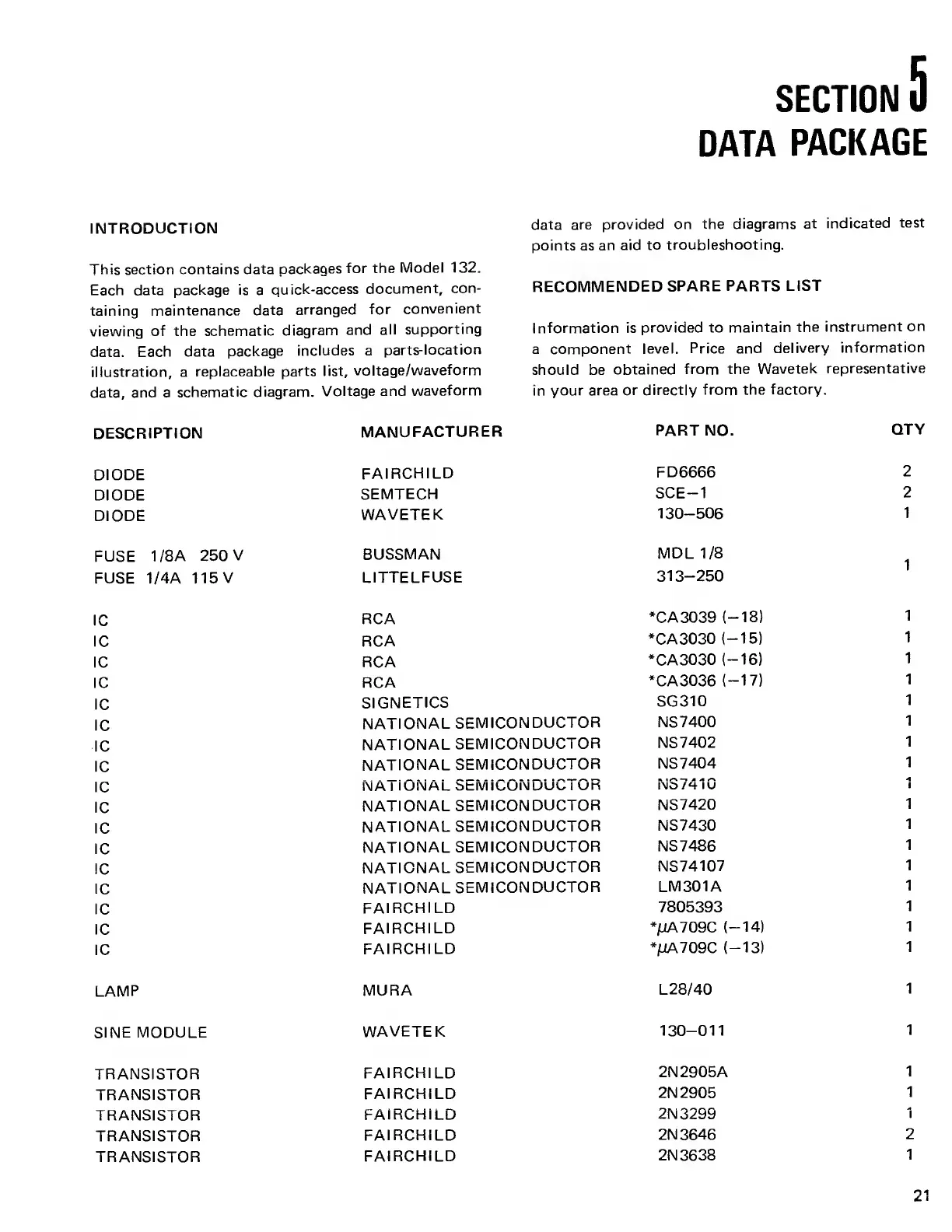

SECTION
5
DATA
PACKAGE
INTRODUCTION
This
section contains
data
packages
for the
Model 132.
Each data
package is
a
quick-access
document,
con-
taining
maintenance
data
arranged
for
convenient
viewing
of the
schematic
diagram
and
all
supporting
data.
Each data
package
includes a
parts-location
illustration, a
replaceable parts
list,
voltage/waveform
data, and a
schematic
diagram.
Voltage and
waveform
data are
provided on
the diagrams
at
indicated
test
points as
an aid
to troubleshooting.
RECOMMENDED
SPARE
PARTS LIST
Information is
provided
to
maintain
the
instrument
on
a component
level.
Price and
delivery
information
should be
obtained
from the
Wavetek
representative
in
your area
or directly
from the
factory.
DESCRIPTION
MANUFACTURER
PART NO.
QTY
DIODE
FAIRCHILD
FD6666
2
DIODE
SEMTECH
SCE-1
2
DIODE
WAVETEK
130-506
1
FUSE
1/8A 250
V
BUSSMAN
MDL 1/8
1
FUSE 1/4A
115
V
LITTELFUSE
313-250
1C
RCA
*CA3039
(-18)
1
1C
RCA
*CA3030
(-15)
1
1C
RCA
*CA3030
(-16)
1
1C
RCA
*CA3036
(-17)
1
1C
SIGNETICS
SG310
1
1C
NATIONAL
SEMICONDUCTOR
NS
7400
1
1C
NATIONAL
SEMICONDUCTOR
NS7402
1
1C
NATIONAL
SEMICONDUCTOR
NS
7404
1
1C
NATIONAL
SEMICONDUCTOR
NS7410
+
1
1C
NATIONAL
SEMICONDUCTOR
NS7420
1
1C
NATIONAL
SEMICONDUCTOR
NS7430
1
1C
NATIONAL
SEMICONDUCTOR
NS7486
1
1C
NATIONAL
SEMICONDUCTOR
NS74107
1
1C
NATIONAL
SEMICONDUCTOR
LM301A
1
1C
FAIRCHILD
7805393
1
1C
FAIRCHILD
*/lA709C
(-14) 1
1C
FAIRCHILD
*
11
A709C
(-13)
1
LAMP
MURA
L28/40
1
SINE MODULE
WAVETEK
130-011
1
TRANSISTOR
FAIRCHILD
2N2905A
1
TRANSISTOR
FAIRCHILD
2N2905
1
TRANSISTOR
FAIRCHILD
2N3299
1
TRANSISTOR
FAIRCHILD
2N3646
2
TRANSISTOR
FAIRCHILD
2N3638
1
21
