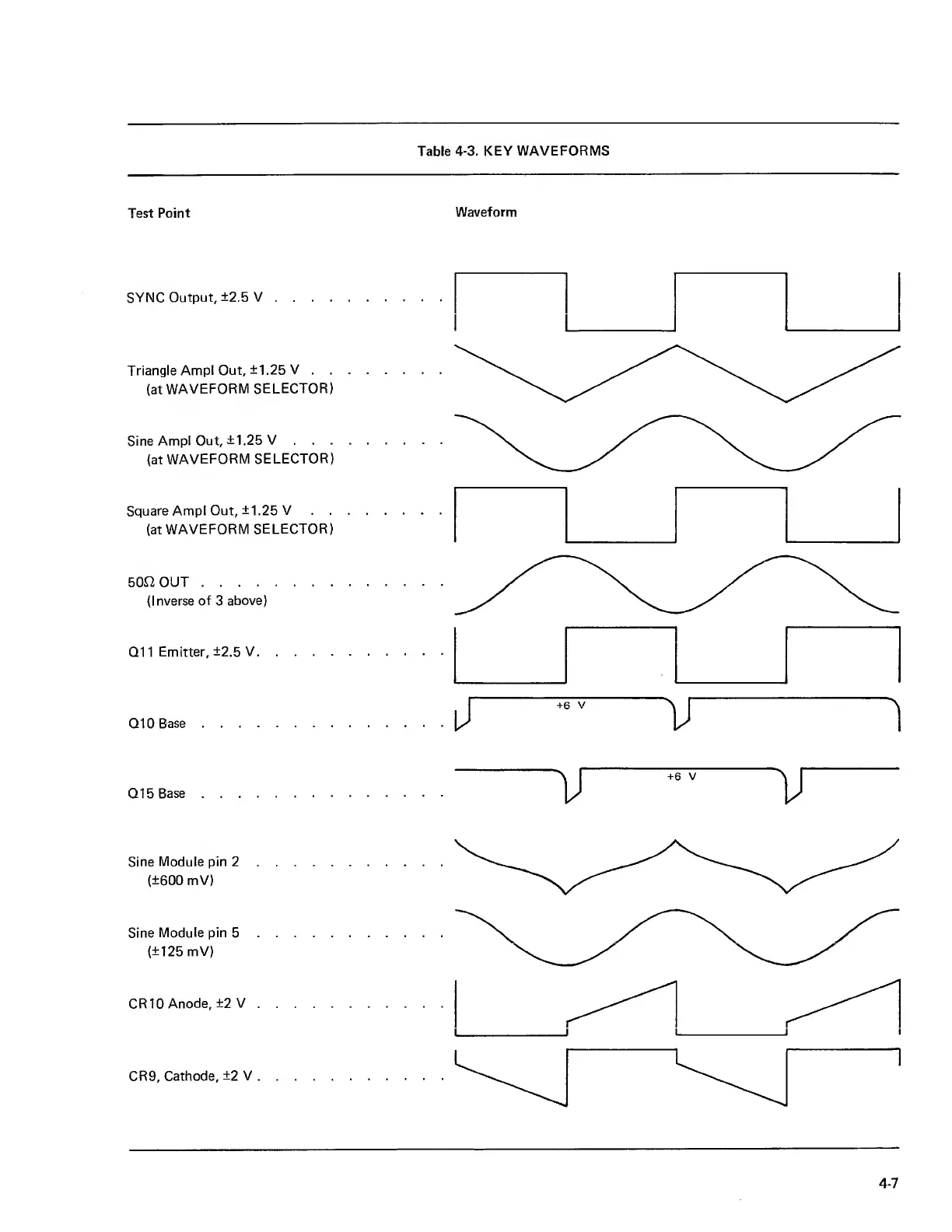

Wavetek 142 - Page 28

Test
Point
Waveform
SYNC
Output,
±2.5 V
Triangle
AmpI Out,
±1.25
V
. .
(at
WAVEFORM
SELECTOR)
Sine
AmpI Out,
±1.25 V
.
. .
(at
WAVEFORM SELECTOR)
Square
AmpI Out,
±1.25 V . .
(at
WAVEFORM
SELECTOR)
50J2OUT
....
(Inverse
of
3
above)
Oil
Emitter, ±2.5
V
01 0
Base
015
Base
Sine
Module pin 2
(±600
mV)
Sine
Module pin
5
(±125
mV)
CR
10
Anode,
±2 V
CR9, Cathode,
±2
V
