Model 9100 — Operator's Guide: Conductance Function 8-1
User's H'b'k
Page Ref
Conductance Calibration
8.1 Interconnections
The general connection scheme for UUT calibration
is illustrated in
Fig. 8.1 . The use of either 4-wire
remote sensing at the UUT terminals, or 2-wire local
sensing at the 9100 terminals, is served by the same
connections from the 9105 at the work mat. Selection
of 2/4-wire is carried out on the 9100 front panel.

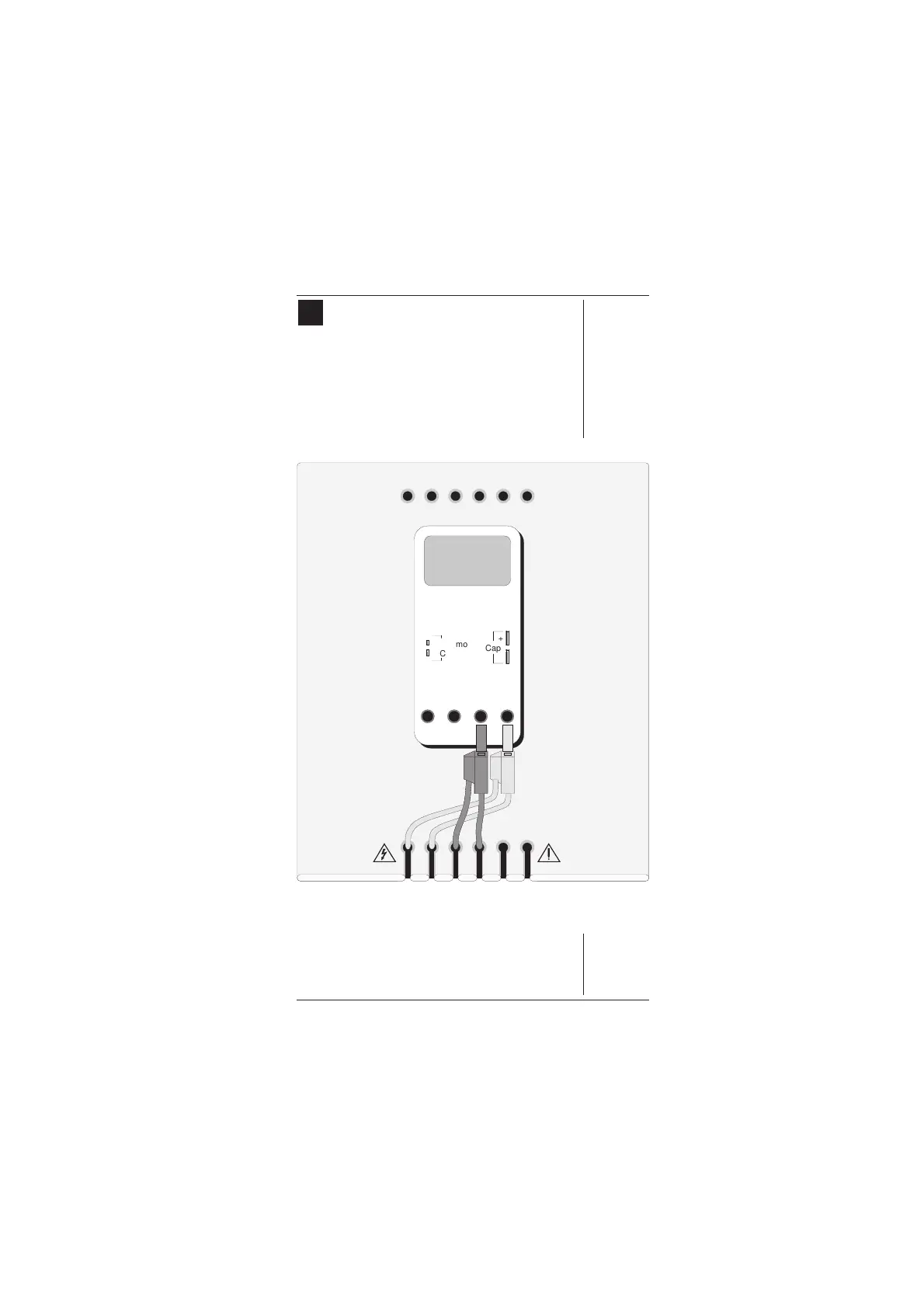

Fig. 8.1
Connections for 4-Wire & 2-Wire Conductance Calibration
10A mA COM V-
A
A
A
A
Cap
+
-
I+mAI+ 20ALI-
sLsHH
WhiYellBlkBlkRedRed
Adaptor Parking Holes
Work Mat
UUT
A
A
A
Thermo
Couple
+
-
8
