Wavetek MS1200 - Appendix C: Interface Port; Serial Interface Connector; Pin Assignments for Interface Port

53
MODEL MS1200
CONNECTOR
The MS1200 has a serial interface with RS232 drive, using a 3-pin
stereo connector. The serial interface has a driver built in for RS232
serial binary data interchange. The connector is located on the
bottom of the unit behind a waterproof cover.

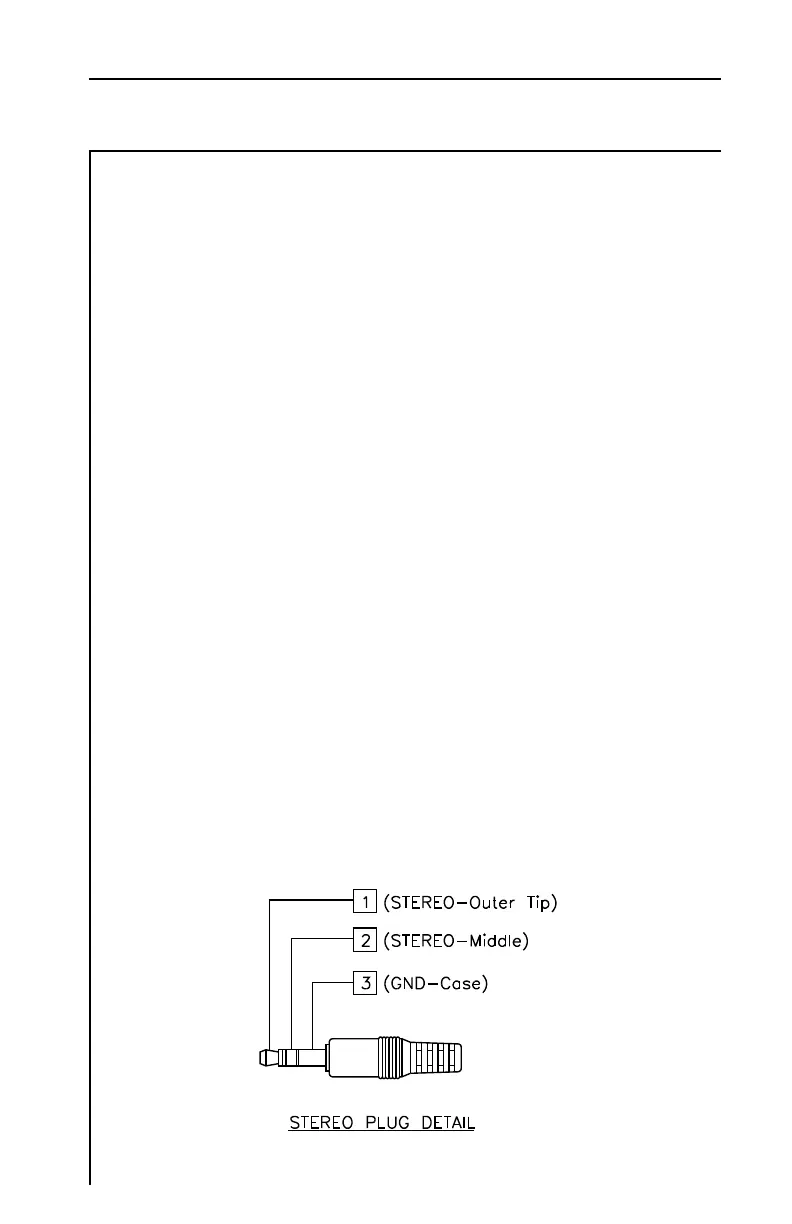

Pin Assignments for Interface Port
Signal Pin Description
TXD 1 Transmitted Data
RXD 2 Received Data
GND 3 Ground
C
Appendix C:
Interface Port
