to 1/4” inside the jamb edge. Temporarily secure the weatherstrip with equally spaced nails.
Repeat for other side. This will keep the bottom section from falling out of the opening during
installation. Equally space nails approximately 12” to 18” apart.
HEADROOM REQUIREMENT: Headroom is defined as the space needed above the top of
the door for tracks, springs, etc. to allow the door to open properly. If the door is to be motor
operated, 2-1/2” (64 mm) of additional headroom is required.
NOTE: 6” low headroom conversion kit is available for 12” radius only. Contact your local
Wayne Dalton dealer.
BACKROOM REQUIREMENT: Backroom is defined as the distance needed from the opening
back into the garage to allow the door to open fully.
*NOTE: For door heights from 10’1” to 14’0”, refer to your operator manufacture installation
instructions for appropriate depth into room.
BACKROOM REQUIREMENTS
Door Height Track Manual Lift Motor Operated
6’0” to 7’0” 12”, 14” Radius 102.5” (2601 mm) 125” (3175 mm)
7’1” to 8’0” 12”, 14” Radius 114.5” (2908 mm) 137” (3480 mm)
8’1” to 9’0” 12”, 14” Radius 127” (3226 mm) 168” (4267 mm)
9’1” to 10’0” 12”, 14” Radius 139” (3531 mm) 168” (4267 mm)
10’1” to 12’0” 12”, 14” Radius 163.5” (4153 mm) See *NOTE
12’1” to 14’0” 12”, 14” Radius 187.5” (4763 mm) See *NOTE
HEADROOM REQUIREMENTS
Track Type Space Needed
12” Radius 12-1/2” (318 mm)
14” Radius 14-1/2” (368 mm)
Weatherstrips
Level header
Finished
Door width
Jambs
Backroom
Plumb
jambs
Finished
Door
Height
Nail
Headroom
Header board 2”x 6”
lumber preferred
Suitable mounting surface
2”x 6” lumber minimum
Weatherstrips
Jamb
1/8” to 1/4”
Min. Side
room
Clearance
is 3-1/2”
Min. Side
room
Clearance
is 3-1/2”

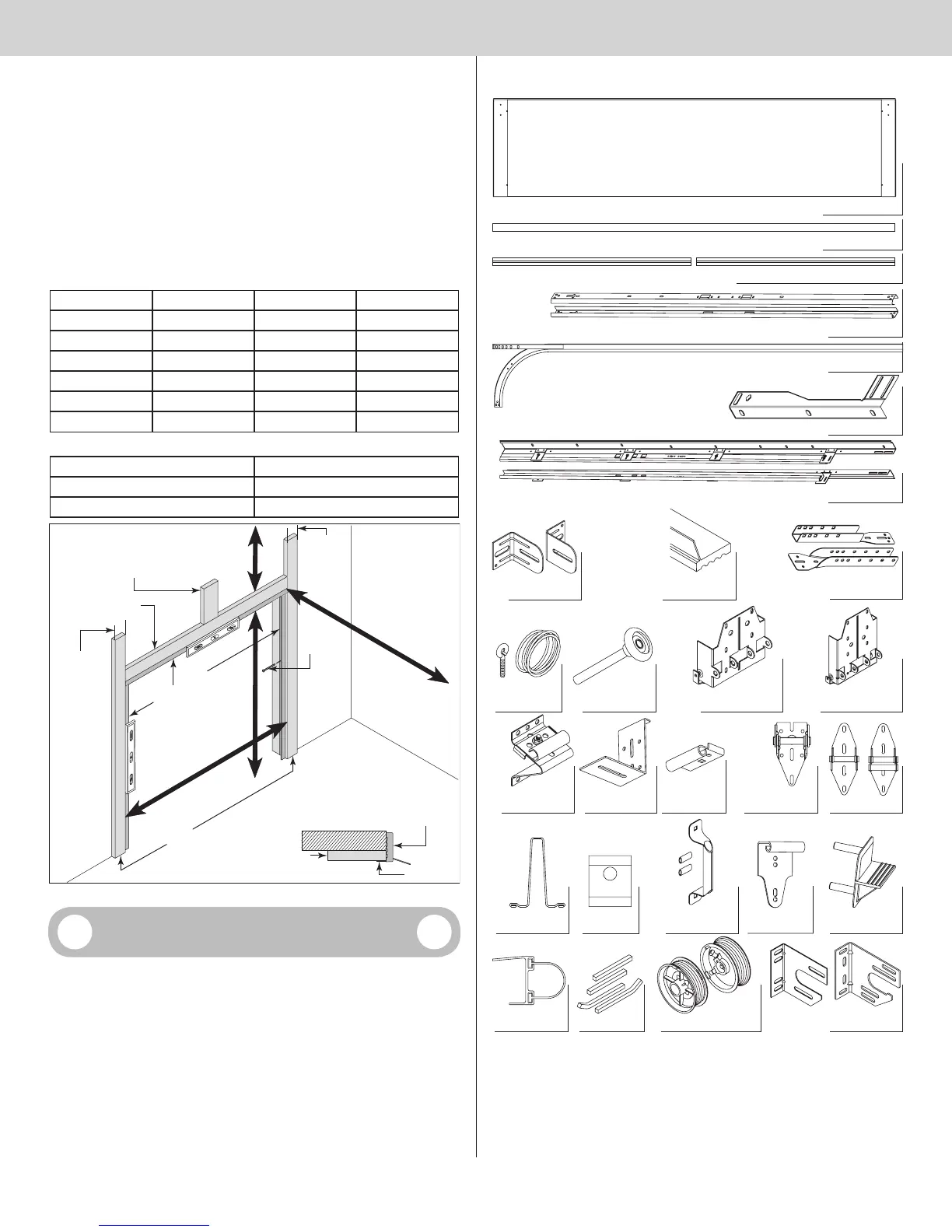

Package Contents
NOTE: Depending on the door model, some parts listed will not be supplied if not required.
Rear Back Hangs may not be included with your door.
Door sections (as required)
Torsion shaft / Torsion keyed shaft (as required)
Torsion keyed shafts (as required)
Angle mount vertical track assemblies RH/LH (as required)
Vertical tracks RH/LH
Horizontal tracks RH/LH
Flag angles RH/LH (as required)
Weather seals & nails
(If included)
Drawbar operator
bracket (if included)
Jamb brackets
(as required)
Pull down rope
(if included)
Track rollers
(as required)
Top fixturue
slide
(as required)
Top fixture base
(as required) Graduated hinges
Half center
hinges (If included)
Top
fixture assemblie
s
(as required)
Bottom corner brackets
RH/LH (as required)
Bottom corner brackets
RH/LH (as required)
(1) Step plate
(Outside)
(2) Lift handles
& spacers
(1) Step plate
(Inside)
Strut clips
(as required)
Strut (U-shaped
)
(as required)
Bottom
weather Seal
Cable drums RH/LH
Spring anchor
bracket (as required)
Keys
(as required)
