A. FLAG ANGLES (AS REQUIRED):
A1. Fully Adjustable (F.A.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Fully Adjustable (F.A.) Jamb Brackets
C. TRACK ROLLERS (AS REQUIRED):
C1. Short Stem Track Rollers
C2. Long Stem Track Rollers
D. GRADUATED END HINGES:
D1. Single Graduated End Hinges (S.E.H.), Industry Standard
D2. Double Graduated End Hinges (D.E.H.), Industry Standard
D3. Half Center Hinge(s) (If included)
E. STACKED SECTIONS:
E1. Top Section / E2. Intermediate(s) Section
E3. Lock Section / E4. Bottom Section
F. TOP FIXTURES (AS REQUIRED):
F1. Top Fixture Assemblies
F2. Top Fixture Bases - (L - Shaped)
F3. Top Fixture Slides - (L - Shaped)
G. STRUT(S) (AS REQUIRED):
G1. 2” Strut (U-shaped) / 3” Strut (U-shaped)
H. DRAWBAR OPERATOR BRACKET (FOR TROLLEY OPERATED DOORS):
H1. Top Halve Drawbar Operator Bracket / H2. Bottom Halve Drawbar Operator Bracket
H3. Drawbar Operator Bracket (Supplied By Others)
I. TRACKS (AS REQUIRED):
I1. Left Hand and Right Hand Horizontal Track Assemblies
I2. Left Hand and Right Hand Vertical Tracks
I3. Left Hand and Right Hand Angle Mount Vertical Track Assemblies
J. TORSION SPRING ASSEMBLY (AS REQUIRED):
J1. Left Hand and Right Hand Torsion Springs (As Required)
J2. Counterbalance Lift Cables
J3. Left Hand and Right Hand Head Plates (As Required)
J4. Left Hand and Right Hand Cable Drums
J5. Spring Anchor Bearing (As Required)
J6. Spring Anchor Bracket(s) (As Required)
J7. Torsion Shaft / Torsion Keyed Shaft (As Required)
J8. Torsion Keyed Shafts (As Required)
J9. Keys (As Required)
J10. Center Coupler Assembly (As Required)
K. REAR BACK HANGS:
K1. Left Hand And Right Hand Rear Back Hang Assemblies
L. BOTTOM CORNER BRACKETS (AS REQUIRED):
L1. Left Hand and Right Hand Bottom Corner Brackets
M. BOTTOM WEATHER SEAL:
M1. Bottom Weather Seal (Door Width)
A1.
B1.
B1.
A1.
C1.
E4.
E1.
E2.
E3.
F1.
F3.
I2.
I1.
I1.
I2.
K1.
K1.
J3.
J6.
J3.
J2.
J1.
J4.
J2.
J1.
J7.
I3.
I3.
F2.
F1.
F2.
F3.
C1.
J3.
J3.
J10.
J9.
J8.
J8.
J6.
J5.
J5.
J4.
NOTE: The illustrations shown on this page are
general representations of the door parts. Each
specific door models may have unique variations.
J9.
J9.
J9.
C2.
D1.
D2.
C1.
H1.
H3.
H2.
G1.
M1.
L1.
L1.
D3.
D3.
J6.
J5.
J6.
J5.

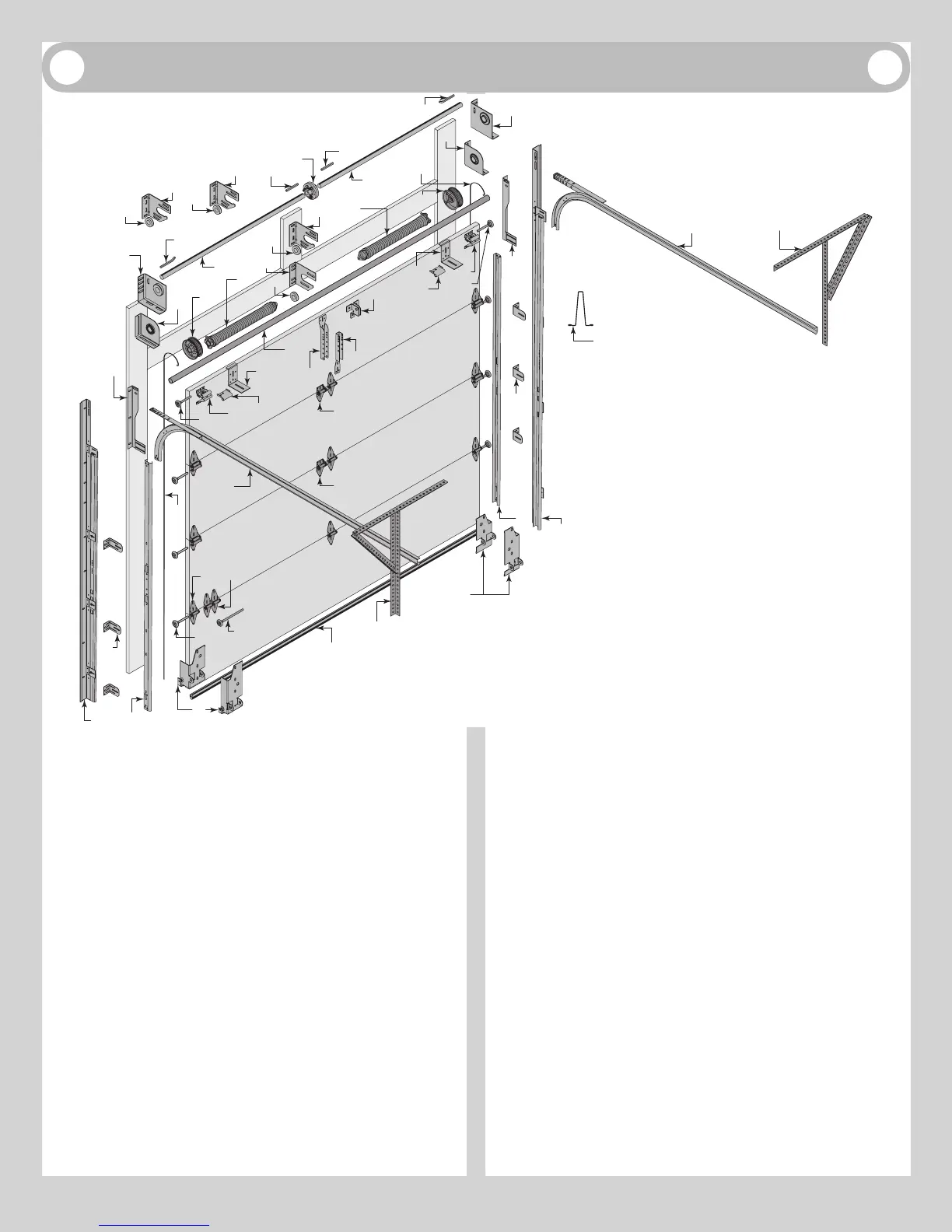

BREAKDOWN OF PARTS
