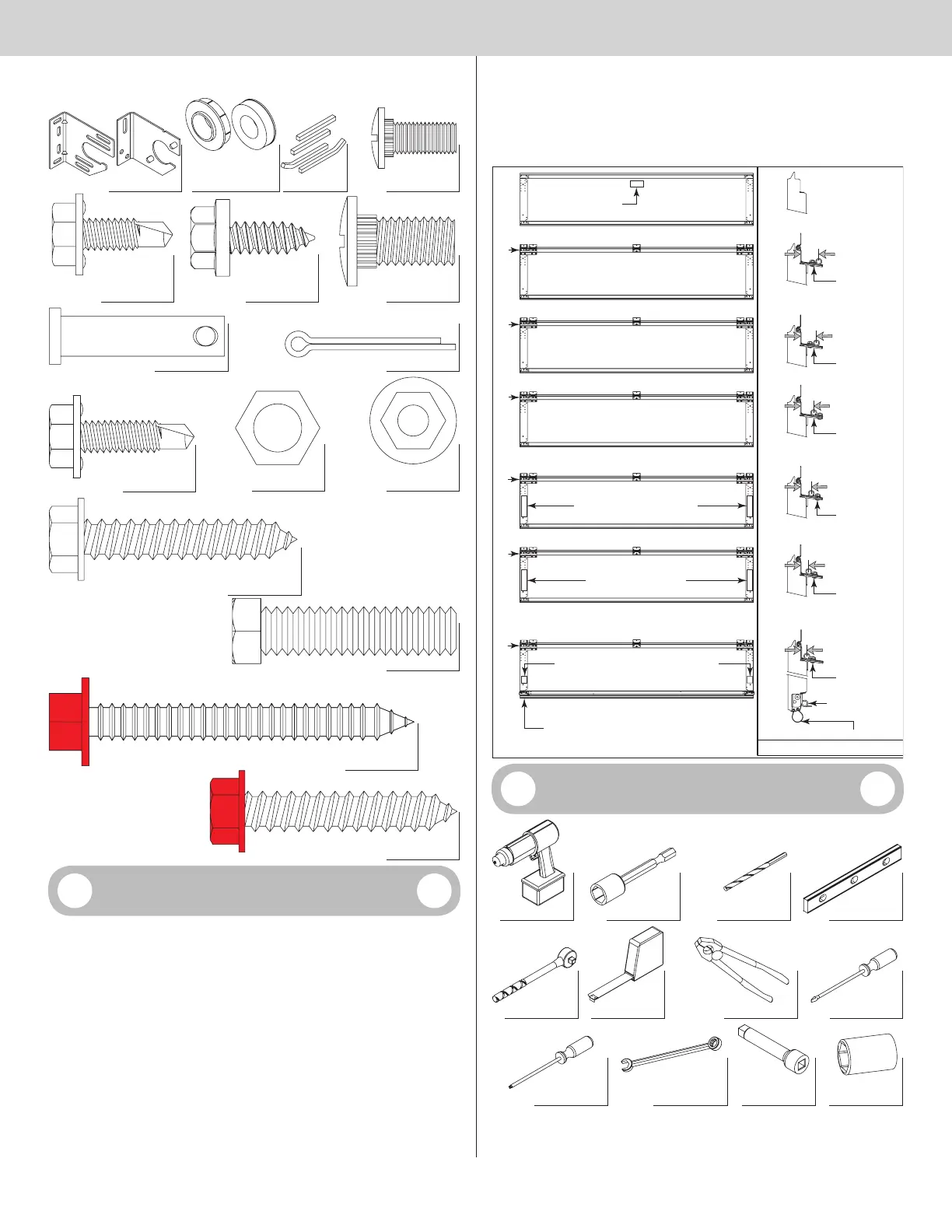

Wayne-Dalton 9700 - Door Section Identification; Tools Required

Center bracket (as required)
Center bracket
bushing
(as required)
1/4”-20 x 9/16”
Track bolts (as required)
1/4”-20 x 11/16” Self
drilling screws (as required)
1/4”-14 x 5/8” Self tapping
screws (as required)
3/8”-16 x 3/4” Truss
head bolts (as required)
Keys
(as required)
5/16” x 1-1/4” Clevis pin Cotter pin
3/8”- 16 Hex nuts
(as required)
1/4”-20 x 7/8” Self
drilling screws (as required)
1/4”- 20 Flanged
hex nuts (as required)
5/16” x 1-5/8” Hex head lag screws
(as required)
3/8”-16 x 1-1/2” Hex bolts
5/16” x 1-5/8” Hex head lag screws
(RED HEAD) (as required)
5/16” x 2-1/2” Hex head lag screws
(RED HEAD) (as required)
Door Section Identification
Graduated end and center hinges are always pre-attached at the top of each section (except
top section) and the graduated end hinges are stamped for identification, #1, #2, #3, #4 and
#5. The stamp identifies the stacking sequence of the section. The sequence is always de-
termined by #1 being the bottom section to #4 or #5 being the highest intermediate section.
If the stamp on the graduated end hinge is illegible, refer to the section side view illustration.
The section side view illustration shows the graduated end hinge profile of all sections, and
can also be used to identify each section.
The BOTTOM SECTION can be identified by #1 graduated end hinges, the factory attached
bottom astragal, the factory attached bottom corner brackets, and by the bottom corner
bracket warning labels on each end stile.
The LOCK SECTION can be identified by #2 graduated end hinges on a 4 section high door
and by #3 graduated end hinges on a 3 section high door. Also, on a 3 section door, the lock
section will come with a warning label attached to the right or left endstile.
The INTERMEDIATE SECTION I can be identified by #3 graduated end hinges (Only on a
4 section high door). The section will have a warning label attached to either the right or left
hand end stile.
NOTE: #4 graduated end hinges are used on the fourth section of five section doors.
The INTERMEDIATE SECTION II can be identified by #4 graduated end hinges.
The INTERMEDIATE SECTION III can be identified by #5 graduated end hinges.
The INTERMEDIATE SECTION IV can be identified by #6 graduated end hinges.
The TOP SECTION can be identified with no pre-installed graduated end or center hinges.
#1 Graduated
end hinge
Bottom corner
bracket
Warning label
Top section
Intermediate I section
Lock section
Bottom section
#1
Section side view illustration
Bottom weather seal
Intermediate II section
Intermediate III section
Intermediate IV section
Bottom
weather seal
27/32”
19/32”
1-3/32”
1-11/32”
1-5/8”
1-27/32”
Bottom corner bracket warning labels
Warning label (Only on
a 3 Section High Door)
Warning label (Only on a 4
Section High Door or Higher)
#2
#3
#4
#5
#6
#2 Graduated
end hinge
#3 Graduated
end hinge
#4 Graduated
end hinge
#5 Graduated
end hinge
#6 Graduated
end hinge
Tools Required
Power drill Socket driver: 7/16” Level
Drill bits: 1/8”, 3/16”,
9/32”, 7/16”, 1/2”
Ratchet wrench Tape measure Pliers / Wire cutters Flat tip screwdriver
Phillips head screwdrive
r
Wrenches: 3/8”, 7/16”,
1/2”, 9/16”, 5/8”
3” Ratchet
extension
Sockets: 7/16”,
1/2”, 9/16”, 5/8”
4
