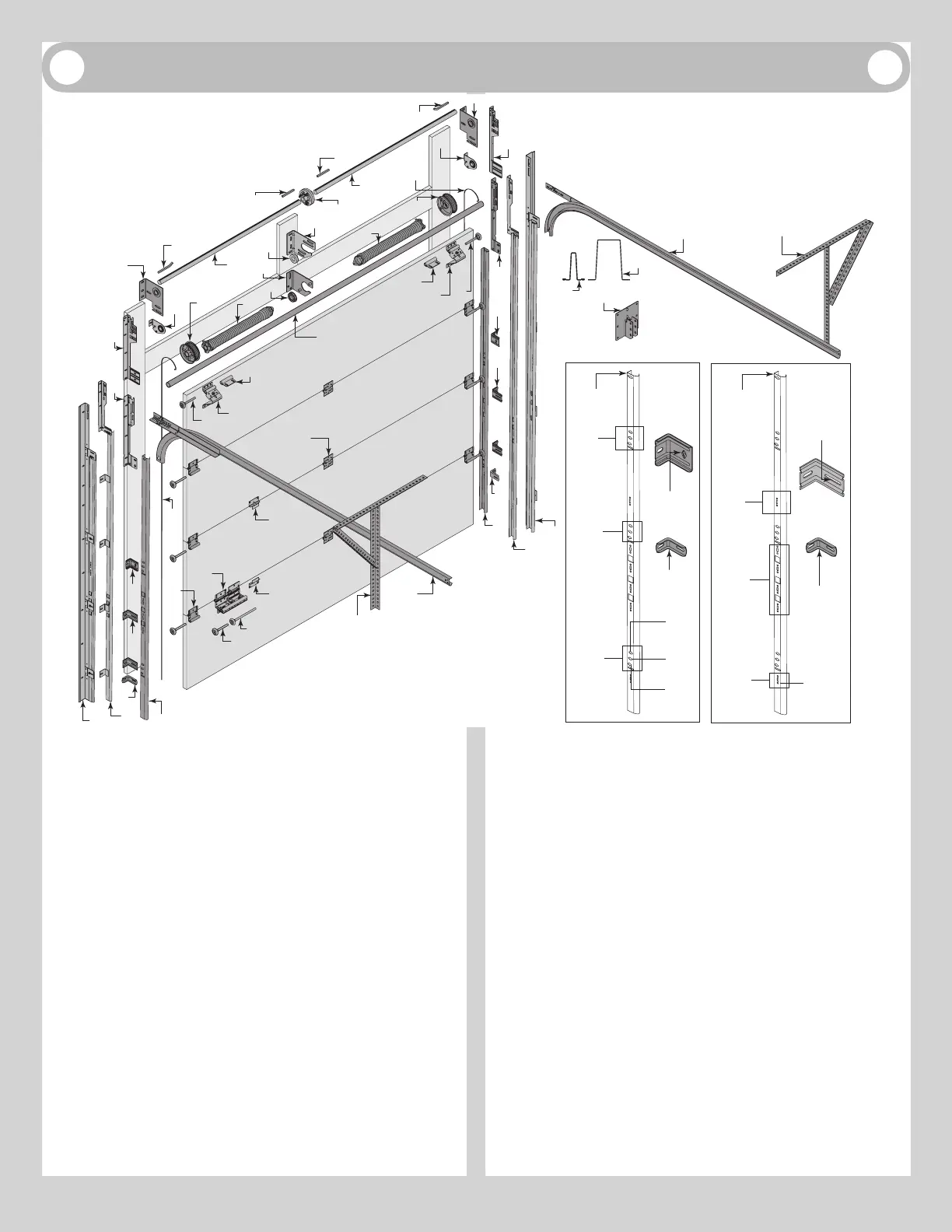

Wayne-Dalton 9700 - Breakdown of Parts

6
A. FLAG ANGLES (AS REQUIRED):
A1. Quick Install (Q.I.) Flag Angles
A2. Fully Adjustable (F.A.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Quick Install (Q.I.) Jamb Brackets
B2. Fully Adjustable (F.A.) Jamb Brackets
B3. Windload Jamb Brackets
C. TRACK ROLLERS (AS REQUIRED):
C1. Short Stem Track Rollers
C2. Long Stem Track Rollers
D. GRADUATED END HINGES (AS REQUIRED):
D1. Single Graduated End Hinges (S.E.H.), Anti-Pinch
D2. Double Graduated End Hinges (D.E.H.), Anti-Pinch
D3. Center Hinge(s)
D4. Hinge Brackets
E. STACKED SECTIONS:
E1. Top Section
E2. Intermediate(s) Section
E3. Lock Section
E4. Bottom Section
F. TOP FIXTURES (AS REQUIRED):
F1. Top Fixture Assemblies
F2. Top Fixture Roller Slides
G. STRUT(S) (AS REQUIRED):
G1. 3” Strut (U-shaped)
G2. 4” Strut (U-shaped)
H. DRAWBAR OPERATOR BRACKET (FOR TROLLEY OPERATED DOORS):
H1. Drawbar Operator Bracket
I. TRACKS (AS REQUIRED):
I1. Left Hand and Right Hand Horizontal Track Assemblies
I3. Left Hand and Right Hand Vertical Tracks
I3. Left Hand and Right Hand Riveted Vertical Track Assemblies
I4. Left Hand and Right Hand Angle Mount Vertical Track Assemblies
J. TORSION SPRING ASSEMBLY (AS REQUIRED):
J1. Left Hand and Right Hand Torsion Springs (As Required)
J2. Counterbalance Lift Cables
J3. Left Hand End Bearing Bracket (As Required)
J4. Right Hand End Bearing Bracket (As Required)
J5. Left Hand Cable Drum
J6. Right Hand Cable Drum
J7. Center Bracket (As Required)
J8. Center Bracket Bearing (As Required)
J9. Torsion Shaft / Torsion Keyed Shaft (As Required)
J10. Torsion Keyed Shafts (As Required)
J11. Keys (As Required)
J12. Center Coupler Assembly (As Required)
K. REAR BACK HANGS:
K1. Left Hand And Right Hand Rear Back Hang Assemblies
A1.
A2.
A1.
A2.
C1.
C2.
C1.
D2.
E4.
E1.
E2.
E3.
G1.
I2.
I1.
I1.
I2.
K1.
K1.
J4.
J7.
J3.
J2.
J1.
H1.
J5.
J2.
J1.
J9.
I4.
I4.
I3.
I3.
C1.
J4.
J3.
J12.
J11.
J10.
J10.
J7.
J8.
J8.
J6.
NOTE: The illustrations shown on this page are
general representations of the door parts. Each
specific door models may have unique variations.
J11.
J11.
J11.
Lower hole
of hole/
slot pattern
3rd
hole set
Top of vertical
track
B2. (Fully
Adjustable
Feature)
2nd
hole set
1st
hole set
B3.
(Windload
Jamb
Bracket)
B3.
(Windload
Jamb
Bracket)
F1.
F1.
F2.
F2.
B2.
B1.
B2.
B1.
B3.
B3.
G2.
D4.
D3.
D4.
B1. (Quick
Install
Feature)
3rd hole
set
Top of vertical
track
2nd
hole set
1st hole
set
Middle
hole
Bottom
hole
Top
hole
D1.
BREAKDOWN OF PARTS
