28

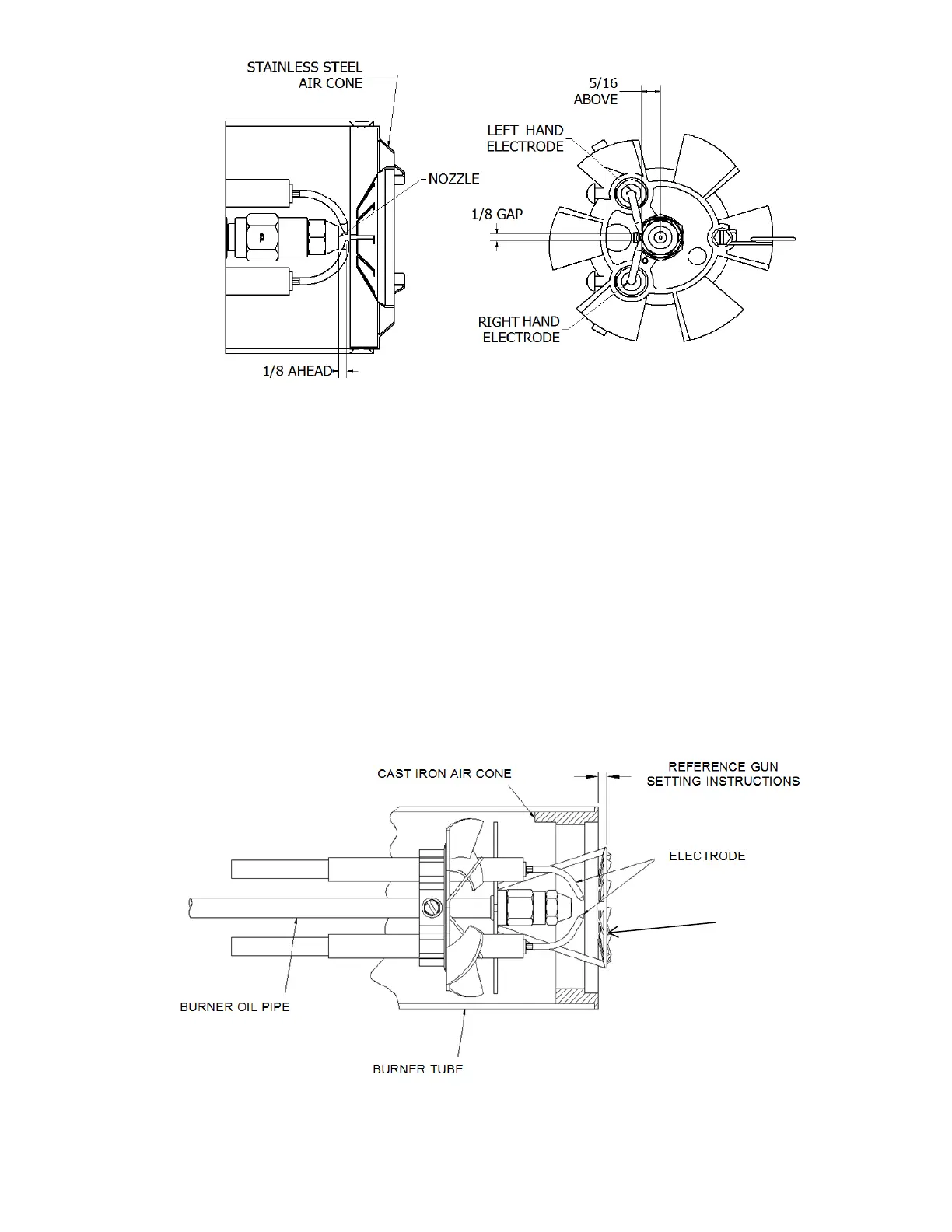

Figure 16–EHASR-DC Electrode Positions, Factory settings
9. At this time position the gun assembly back into the housing in reverse sequence that gun assembly was removed in,
while taking care not to disrupt the electrode spacing.
Note: Re-measure electrodes gap after installing gun assembly in burner to verify that the position has not shifted
SETTING GUN DEPTH
For the oil burner to function properly the distance between the nozzle and the air cone needs to be maintained as shown
in Figure 17 & Figure 18 on pages 28-29.
Suggested startup setting: EH-DC Flamelock 1/8” ahead of cast iron cone face for 3.00 to 4.50 gal/hr or
¼” ahead for 4.50 to 6.00 gal/hr
Figure 17- EH-DC Gun Depth Settings
