Wayne ESP15 User Manual

Operating Instructions and Parts Manual
www.waynepumps.com
6
Maintenance (continued)
Working in the
vicinity of lead acid
batteries can be dangerous. Before making
connections or servicing the batteries, read and
follow instructions in all applicable instruction
manuals. To reduce the risk of battery
explosion, follow the instructions in this manual
and those published by the battery
manufacturer, as well as those of any other
equipment used in the surrounding area.
If battery acid
contacts your eye(s),
flush with cold running water for 10 minutes and
seek immediate medical attention. If acid contacts
your skin or clothing, wash immediately with soap
and water.
Never smoke or allow a
spark or
flame in the vicinity of the battery.
ESP15, ESP25
Avoid dropping
metal tools on the battery
posts because they may spark or short-circuit the
system or battery, causing an explosion.
Follow battery manufacturer’s maintenance
procedures and schedules. Be certain that the
area around the batteries is well ventilated.
Before servicing the batteries, blow away
gasses by waving a piece of cardboard near
the batteries.
For Replacement Parts, call 1-800-237-0987
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
Address parts correspondence to:
WAYNE Water Systems
101 Production Drive
Harrison, OH 45030 U.S.A.

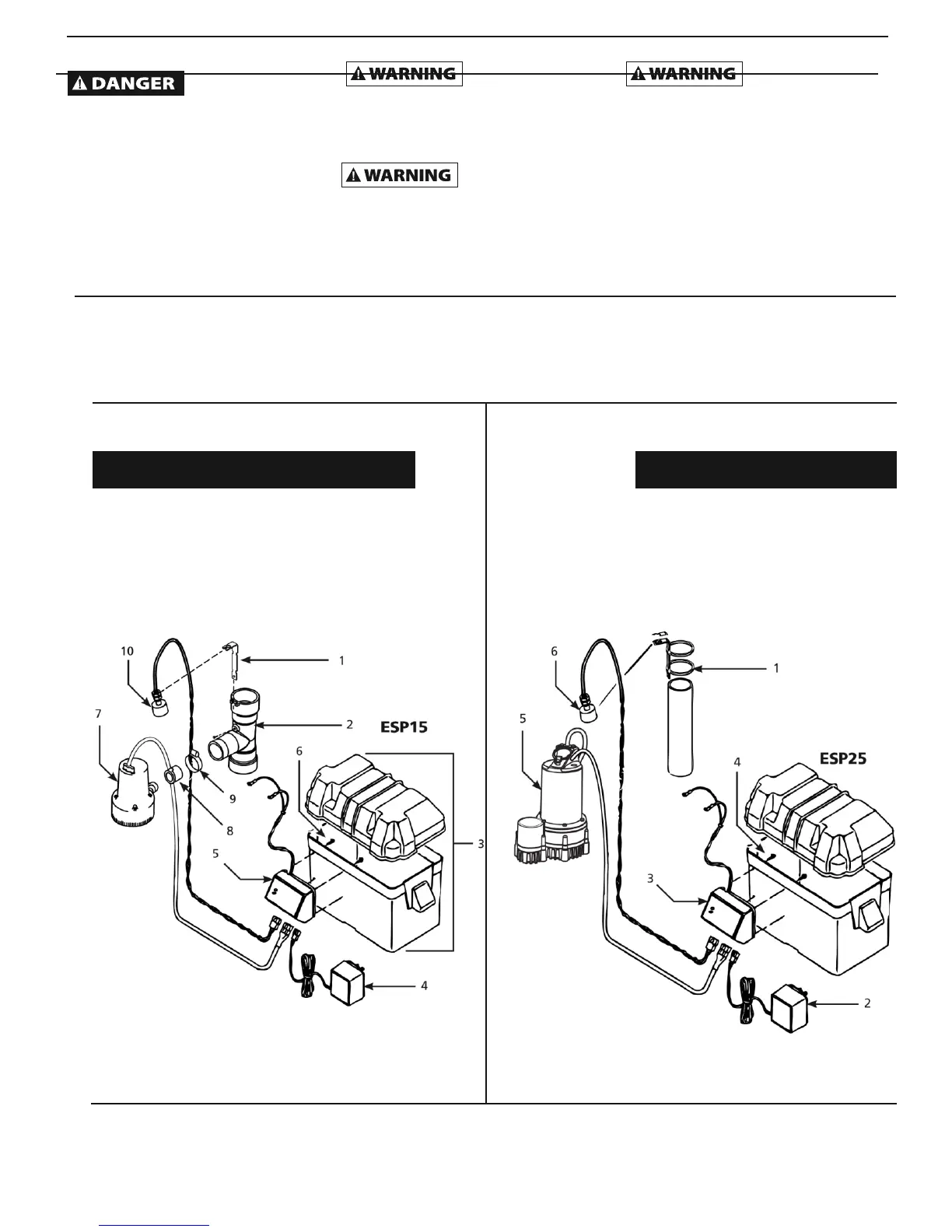

Repair Parts List – ESP15
Repair Parts List – ESP25
Ref.
No. Description Part Number Qty
Ref.
No. Description Part Number Qty
1 Bracket 46049-001 1
2 Tee fitting 17233-002 1
3 Battery box 23217-001 1
4 Charger 17220-004 1
5 Control box 30209-003 1
6 Screw control box 16119-002 4
7 Pump 17218-003 1
8 Flapper valve 17216-001 1 9
Clamp hose 16044-001 1
10 Float switch 30033-001 1
1 Bracket 46049-001 1
2 Charger 30221-001 1
3 Control box 30222-004 1
4 Screw control box 16119-002 4
5 Pump 58324-001 1
6 Float switch 30033-001 1
