4

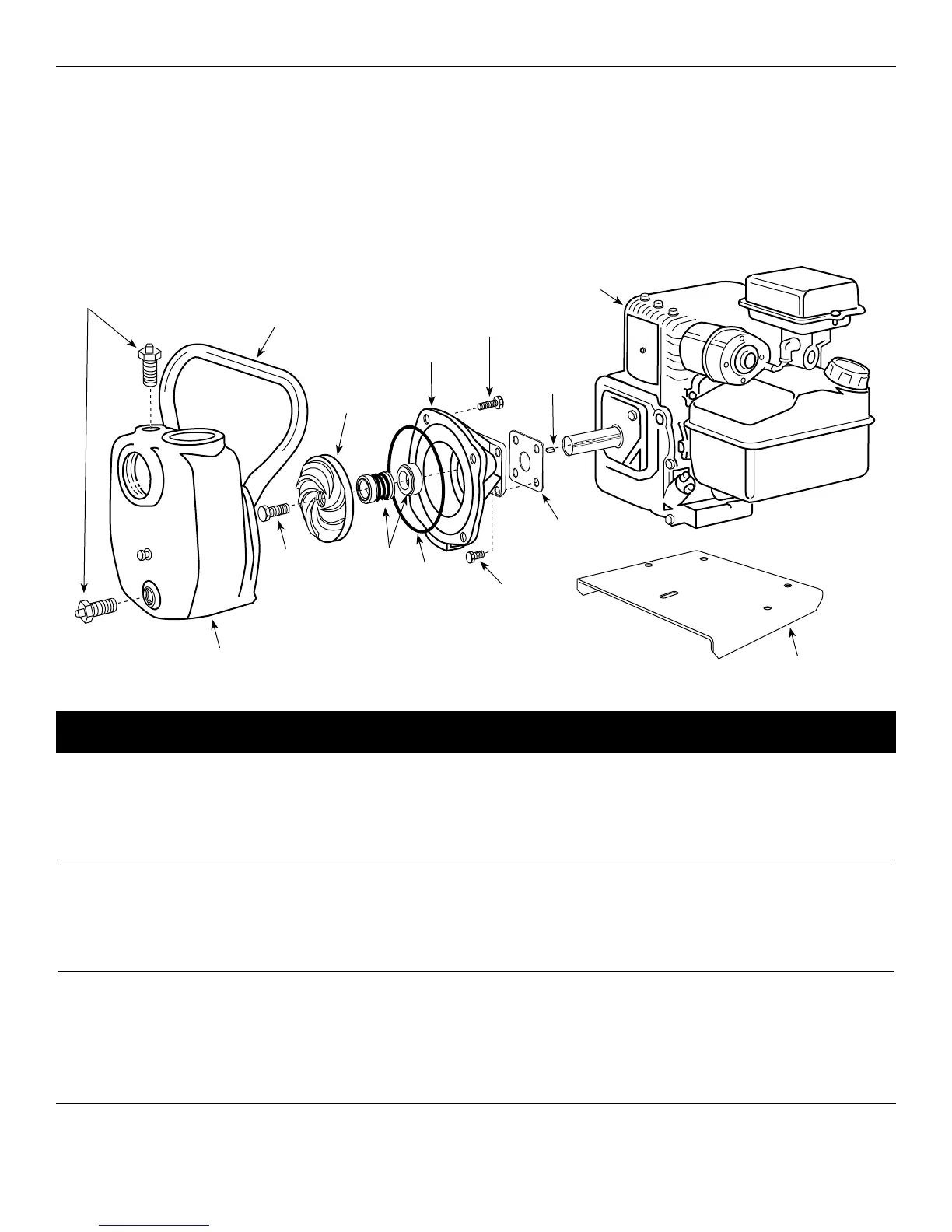

1 Engine 57800-001 1
2 Volute Bracket 56724-001 1
3 Impeller kit 56711 1
4 Screw 17046-001 1
5 Key 16997-001 1
6 Shaft seal kit 56711 1
7 Volute 56723-001 1
8 Pipe plug, 3/4 NPT 15921 2
9 Volute gasket 15556-002 1
10 Cap screw, 5/16 - 18 x 1 12701 5
11 Cap screw, 5/16 - 24 x 7/8 16209 4
12 Lock washer, split 5/16 (not shown) 15916 4
13 Handle 56722-001 1
14 Base 11007-001 1
1
3a
11
5
10
2
3
6
4
13
8
7
14
For Replacement Parts or Technical Assistance,
call 1-800-237-0987
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown
Address parts correspondence to:
WAYNE Water Systems
101 Production Drive
Harrison, OH 45030
Item No. Description Part Number Qty
9
Operating Instructions and Replacement Parts List
