Operating Instructions and Parts Manual
JSU50
8
www.waynepumps.com
For Replacement Parts, call 1-800-237-0987
• Only use factory parts to repair this pump.

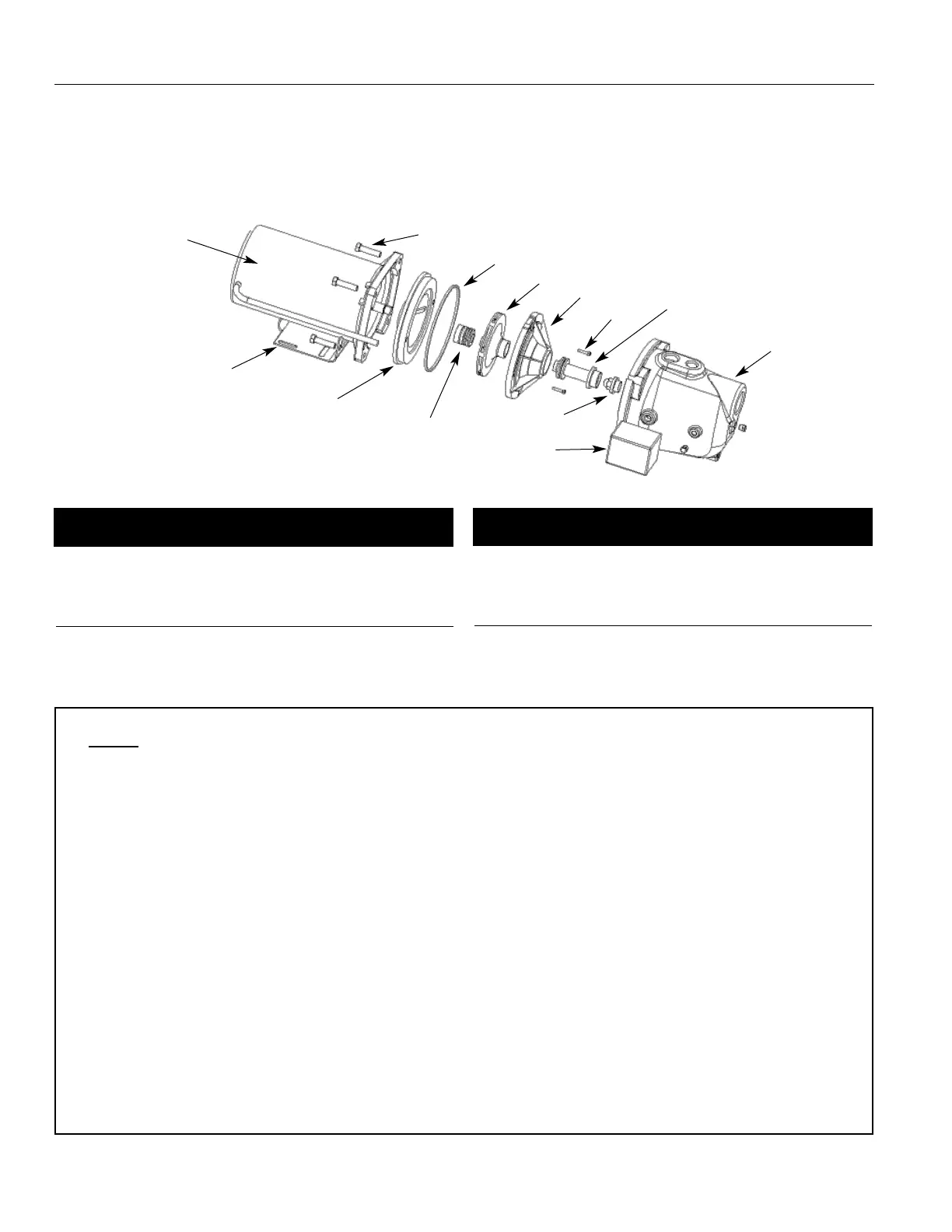

1 Motor 32059-001 1
2 Screw 16636-002 4
3 Square ring rubber gasket 17150-001 1
4 Shaft seal assembly 56393 1
5 Impeller 23285-002 1
6 Diffuser 17148-001 1
7 Screw 17165-001 2
8 O-ring 15557 1
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list
9 Venturi 17151-002 1
10 Nozzle 15672 1
11 ∅ 3/4” Pipe plug 15921 1
12 Pump housing 41033-001 1
13 Base 23029-001 1
14 Pressure switch 30010-001 1
15 Seal Plate 4372-001 1
∅ Not shown
Ref.
No. Description Part No. Qty.
Address parts correspondence to:
Wayne Water Systems
100 Production Drive
Harrison, OH 45030 U.S.A.
Ref.
No. Description Part No. Qty.
Limited Warranty
For one year from the date of purchase, Wayne Water Systems (“Wayne”) will repair or re place, at its option, for the original purchaser any
part or parts of its Sump Pumps or Water Pumps (“Product”) found upon examination by Wayne to be defective in materials or work man ship.
Please call Wayne (800-237-0987) for instructions or see your dealer. Be pre pared to provide the model number when exercising this warran-
ty. All trans por ta tion charges on Products or parts submitted for repair or replacement must be paid by purchaser.
This Limited Warranty does not cover Products which have been damaged as a result of accident, abuse, misuse, neglect, improper installa-
tion, improper main te nance, or failure to operate in accordance with Wayne’s written instructions.
THERE IS NO OTHER EXPRESS WARRANTY. IM PLIED WARRANTIES, IN CLUD ING THOSE OF MER CHANT ABIL I TY AND FITNESS FOR A
PARTICULAR PUR POSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF PUR CHASE. THIS IS THE EXCLUSIVE REM E DY AND ANY LIA-
BILITY FOR ANY AND ALL IN DI RECT OR CON SE QUEN TIAL DAM AG ES OR EX PENS ES WHATSOEVER IS EXCLUDED.
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusions or limitations of incidental or con-
sequential damages, so the above lim i ta tions might not apply to you. This limited war ran ty gives you specific legal rights, and you may also
have other legal rights which vary from state to state.
In no event, whether as a result of breach of contract warranty, tort (in clud ing negligence) or otherwise, shall Wayne or its suppliers be liable
for any special, consequential, incidental or penal damages including, but not limited to loss of profit or revenues, loss of use of the products
or any associated equipment, damage to associated equip ment, cost of capital, cost of substitute products, facilities, services or replacement
power, downtime costs, or claims of buyer’s cus tom ers for such damages.
You MUST retain your purchase receipt along with this form. In the event you need to exercise a warranty claim, you MUST send a copy of
the purchase receipt along with the material or correspondence. Please call Wayne (800-237-0987) for return authorization and instructions.
DO NOT MAIL THIS FORM TO WAYNE. Use this form only to maintain your records.
MODEL NO._____________________ SERIAL NO. __________________________ INSTALLATION DATE _______________
ATTACH YOUR RECEIPT HERE
1
2
3
4
5
6
7
8, 9
10
12
13
14
15
