5 Commissioning
Commissioning - comments
The work described here may only be performed by appropriately trained specialist staff or by a specialist
company. Alternatively, the work may be performed by persons who have completely read and understood
the operating instructions. The systems installed must be inspected for appropriate installation and tightness
before commissioning.
Use the commissioning protocol for the commissioning procedure, see Section 9.3.
The device is provided with factory settings when it is delivered. Adapt the regulation parameters during the
start-up on the desired operating mode.
Commissioning works
Ensure that the device is appropriately installed and connected.
5.2.1 Insert the roller carrier of the hose pump
1. Remove the clipped transparent protective cover (4, not shown in image).
2. Strip the blue lock washer (2).
3. Strip the hose holder (15) from the pump housing.

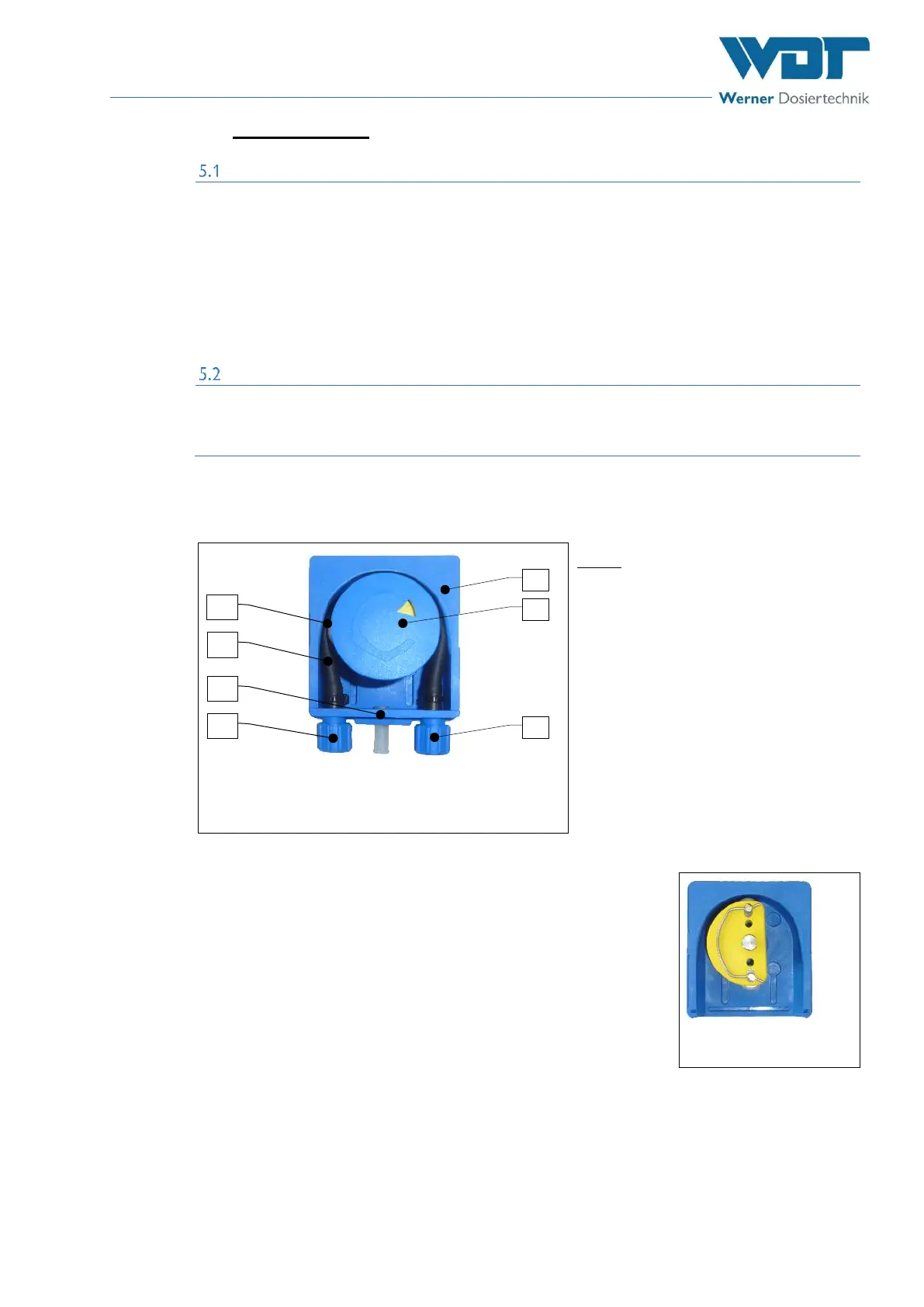

Figure 6, Hose pump
Legend
11 Pump housing
12 Lock washer
13 Pressure connection
14 Suction connection
15 Hose holder with dosing pipe made of
Viton (hose set)
16 Hose
17 Roller carrier (covered by lock washer)
- Transparent protection cover (not
shown)
4. Place the yellow roller carrier (17) on the shaft
Figure 7,
Insert the roller carrier
12
11
13
14
15
16
17
