Fragrances dosing, type DUFTDOS-0-Compact
Index: 01 Change date: 01/12/2017 Operating instructions no.: BA DW 017-01 Duftdos-0-Compact EN 17630.docx Page 12 of 21

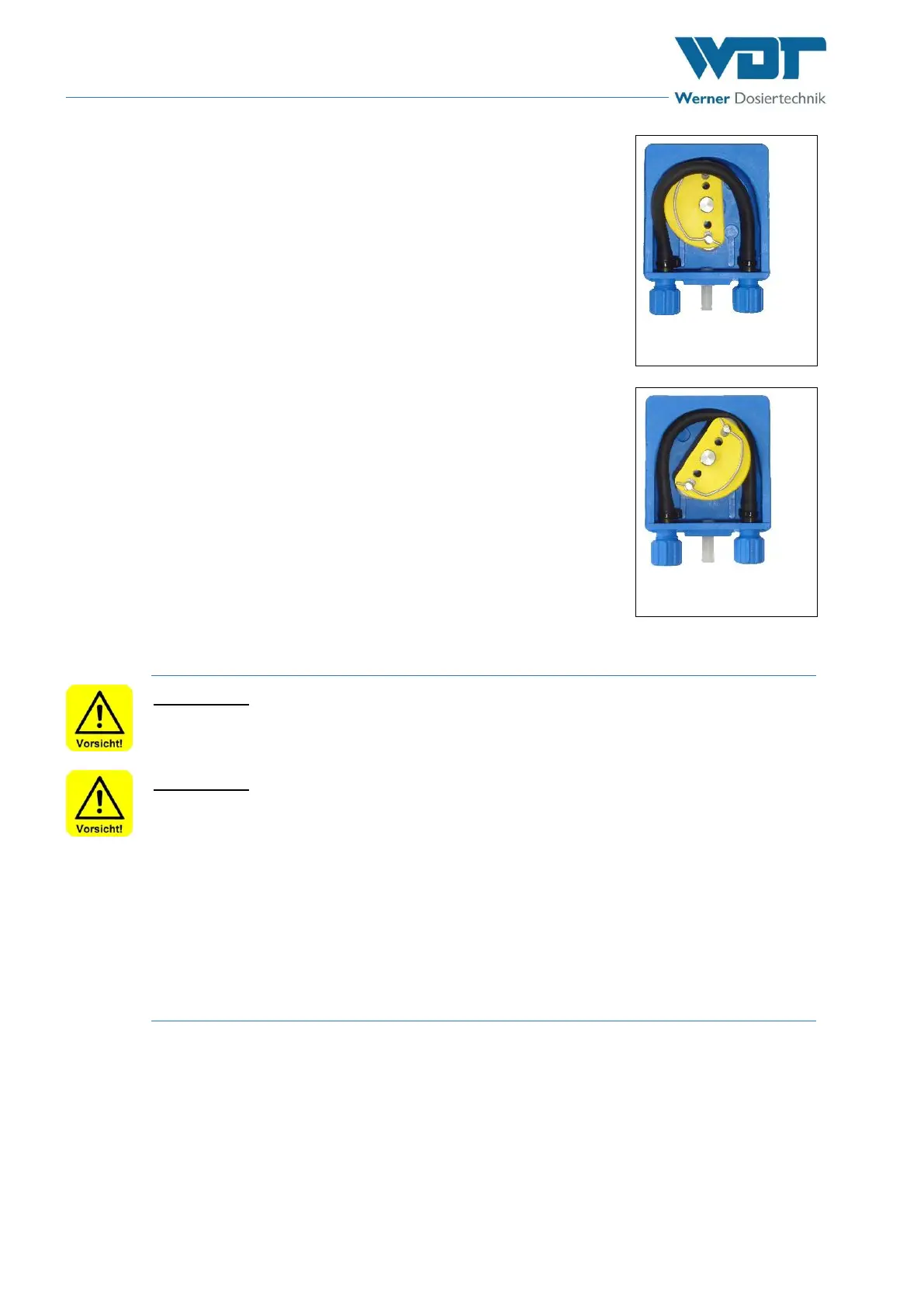

5. Place the hose carrier (15) into the guide of the housing until it clicks in.
6. Turn the roller carrier (17) anticlockwise while carefully pushing the hose
into the housing until it is completely within the housing.
6. Insert the lock washer (12) again.
7. Attach the transparent protective cover again. The installation of the roller
carrier is finished.
The disassembly of the roll carrier and of the hose holder in reverse order.
5.2.2 Prepare the fragrance concentrate
CAUTION !
Many fragrance concentrates are highly flammable!
CAUTION !
Fragrance concentrates can be harmful for the health!
Wear protective gloves and protective glasses.
See the safety data sheet of the manufacturer of the fragrance.
1. Screw off the cover at the fragrance concentrate container.
2. Bore a hole with a diameter of 7mm in the cover.
3. Screw the cover again.
4. Place the container under the device.
5. Glide the suction pipe into the container so that the end of the suction pipe touches the container bottom.
5.2.3 Connect the device and aerate the dosing pipe
Realise the power supply (see Section 3.4 “Technical data“).
1. Wait until the fragrance concentrate is pumped upwards.
2. Wait until the pumped up fragrance concentrate fills the dosing pipe completely.
3. The dosing pipe is deaerated as soon as there are no air bubbles in the pipe any more.
