Fragrances dosing, type DUFTDOS-0-Compact
Index: 01 Change date: 01/12/2017 Operating instructions no.: BA DW 017-01 Duftdos-0-Compact EN 17630.docx Page 6 of 21
3 Product description - delivery scope
Delivery scope / accessories
The device mainly consist of the following components:
Hose dosing pump SA, approx. 3 l/h
Connection cable 4 x 1mm
2
- 3m
Roller carrier SA yellow
Dosing hose 3.2 x 1.6 Viton with hose holder on 4 x 1 mm
Suction hose PE 4 x 1 - 1.5 m
The following options are available as accessories:
Dosing set
Console for round jar with wide neck, 1.5 litres
Console for canister, 10 litres
Order numbers see Section 9.6 “Spare parts list, wearing parts list, consumables list“.
Product description
The fragrance dosing type DUFTDOS-0-Compact refers to a dosing system for the dosed introduction of
fragrance concentrate in the steam pipe of steam rooms.
Function
The fragrance concentrate is dosed through the hose pump passing the dosing pipe into the steam pipe. The
pump must be connected in such a way that it can only dose during the steam production. The dosing power
depends only on the diameter of the dosing hose. The dosing pipe is made of transparent PTFE, so that during
the deaeration the air bubble in the pipe can be observed.
The optional dosing valve is assembled into the dosing pipe to connection the dosing power.
ATTENTION !
The device must be connected in such a way that dosing is only done during the steam
production of the steam generator.

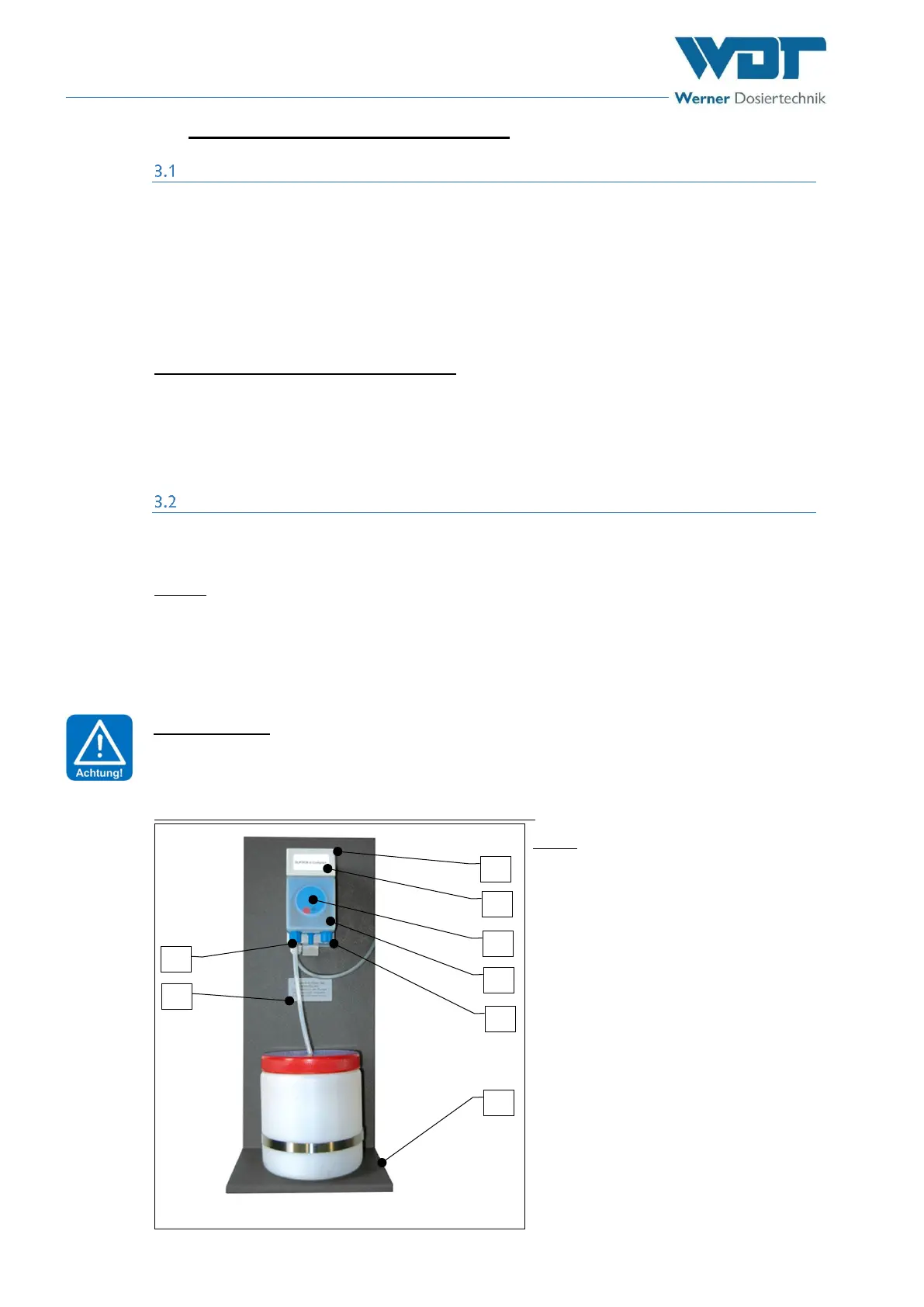

Overview of the fragrance dosing type: DUFTDOS-0-Compact
Legend
1 Housing
2 Housing cover
3 Hose dosing pump
4 Transparent protection cover
5 Pressure connection for dosing pipe to
the steam pipe
6 Console for round jar with wide neck
7 Warning sign
8 Suction connection for hose pipe to the
fragrance concentrate container
