SECTION 10: FILTER SECTION
21
SECTION 10: FILTER SECTION
10.1 Filter Section Support Assembly Installation
(XT-115 - XT-130)
It is best to assemble the support base and support arms to the filter section prior to attaching the filter
section to the air handler but can also be assembled to a previously installed filter section.
Attach the support
legs to the bottom of the filter section (air entering edge) using the hardware supplied.
Refer to Page 21, Figure
10.

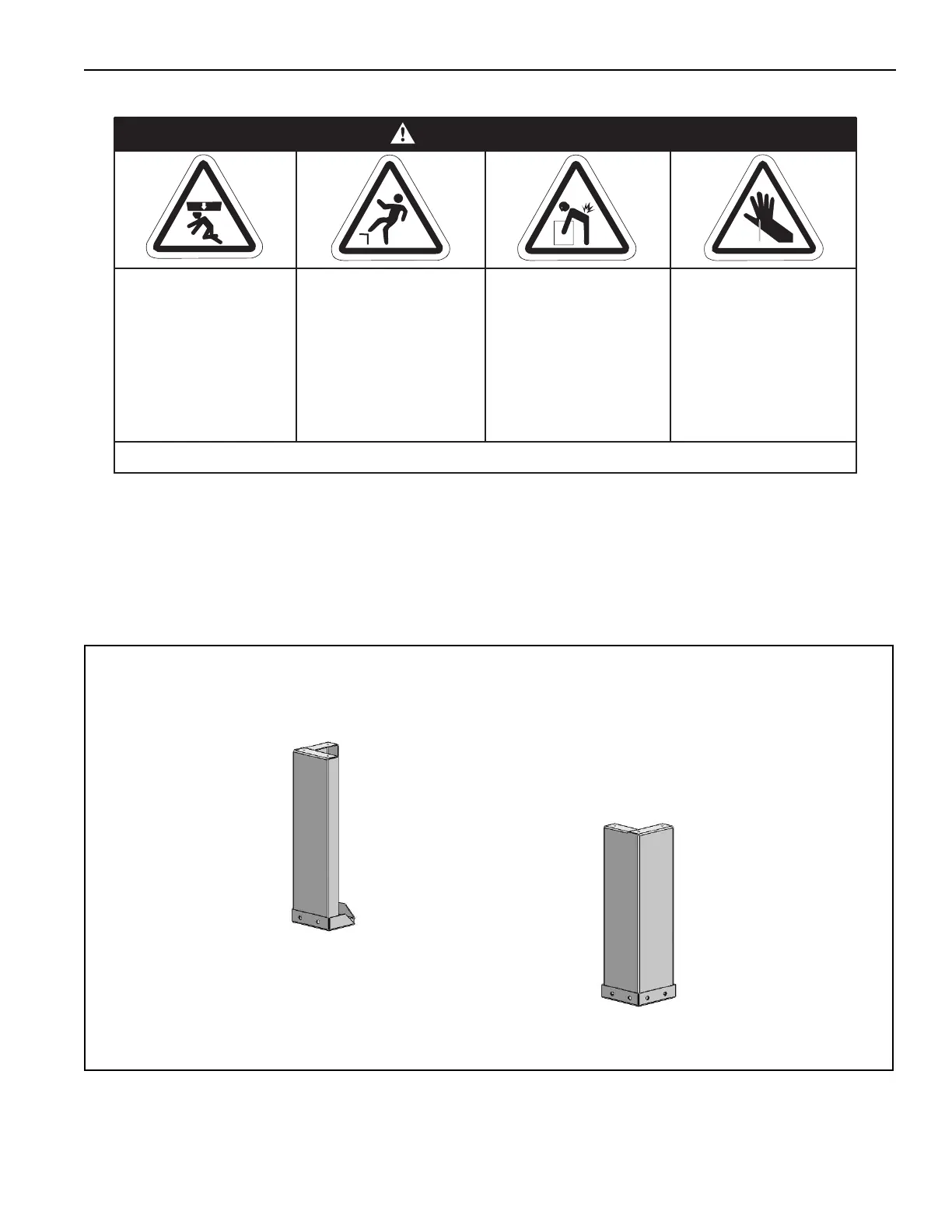

FIGURE 10: Filter Section Support Assembly
Crush Hazard
Use proper lifting
equipment and
practices.
Falling Hazard
Use proper safety
equipment and prac-
tices to avoid falling.
Severe Injury Hazard
Use proper lifting
practices and equip-
ment.
Equipment and
accessories are
heavy.
Cut/Pinch Hazard
Wear protective gear
during installation,
operation and
service.
Edges are sharp.
WARNING
Failure to follow these instructions can result in death, injury or property damage.
NOTE: 1) CONTRACTOR/INSTALLER MUST MAKE
APPROPRIATE ALLOWANCES FOR DUCT
CONNECTIONS.
2) SUPPORT LEG IS REQUIRED WHEN A FILTER
SECTION AND INLET HOOD ARE ORDERED.
3) SUPPORT LEG IS PROVIDED FOR USE WITH
STANDARD 19" (50 cm) ROOF CURB. SUPPORT
LEG FOR USE WITH STANDARD 46" (116.8 cm)
LEGS PROVIDED BY OTHERS.
