SERIES XT INSTALLATION, OPERATION AND SERVICE MANUAL
28

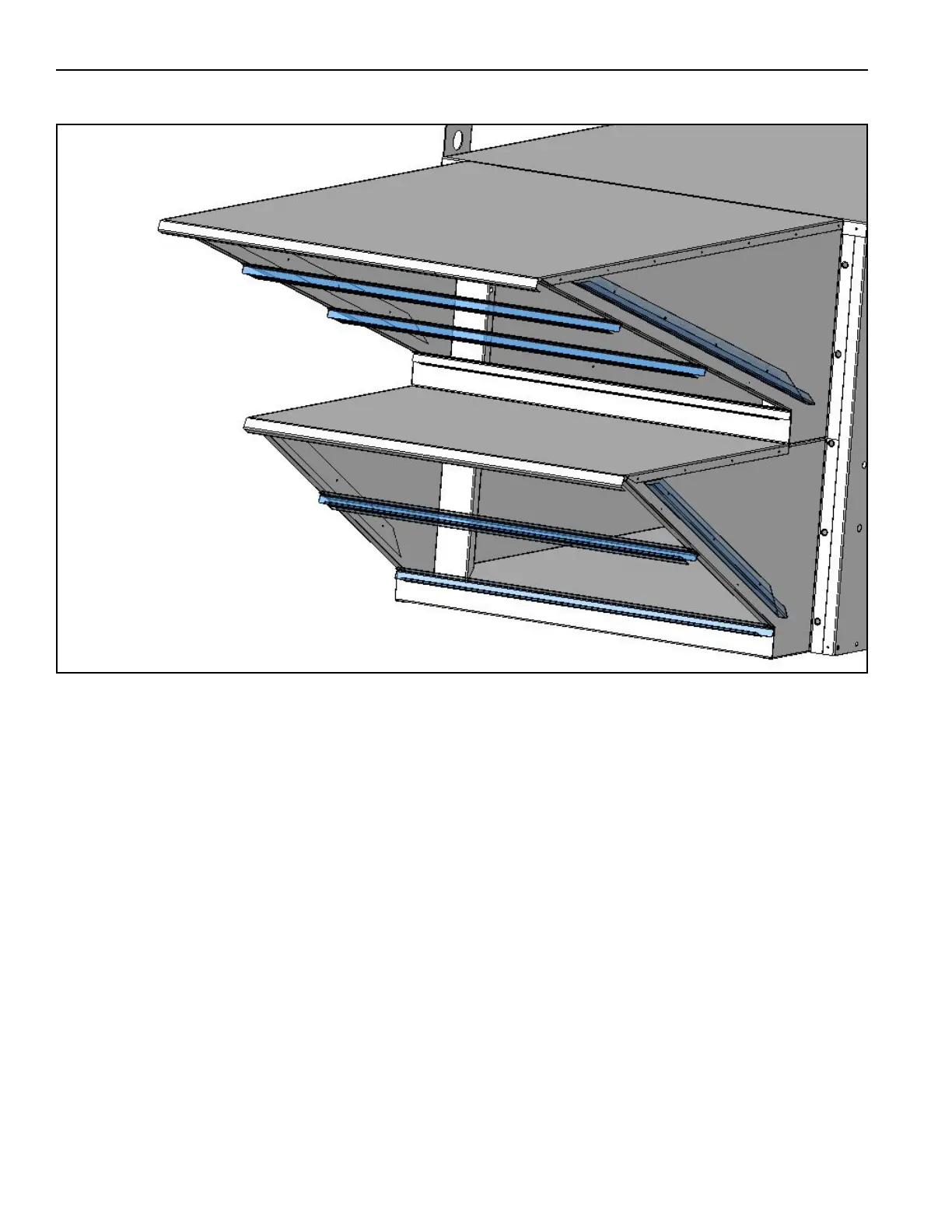

Step 11.2.8 Attach the remaining filter rails and the rain gutters to the upper and lower hood sides with the
provided rivets.
Step 11.2.9 Attach filter retaining latches with the provided rivets.
Step 11.2.10 Caulk seam between air handler and inlet hood.
Step 11.2.11 Load filters into the inlet hood, checking to see that each filter is in the proper orientation by ver-
ifying that the arrow on the side of the filter points in the direction of air flow. All of the arrows should be point-
ing towards the air handler when installed in the proper orientation. Once filters are installed, close filter clips
installed previously
