SERIES XT INSTALLATION, OPERATION AND SERVICE MANUAL
34

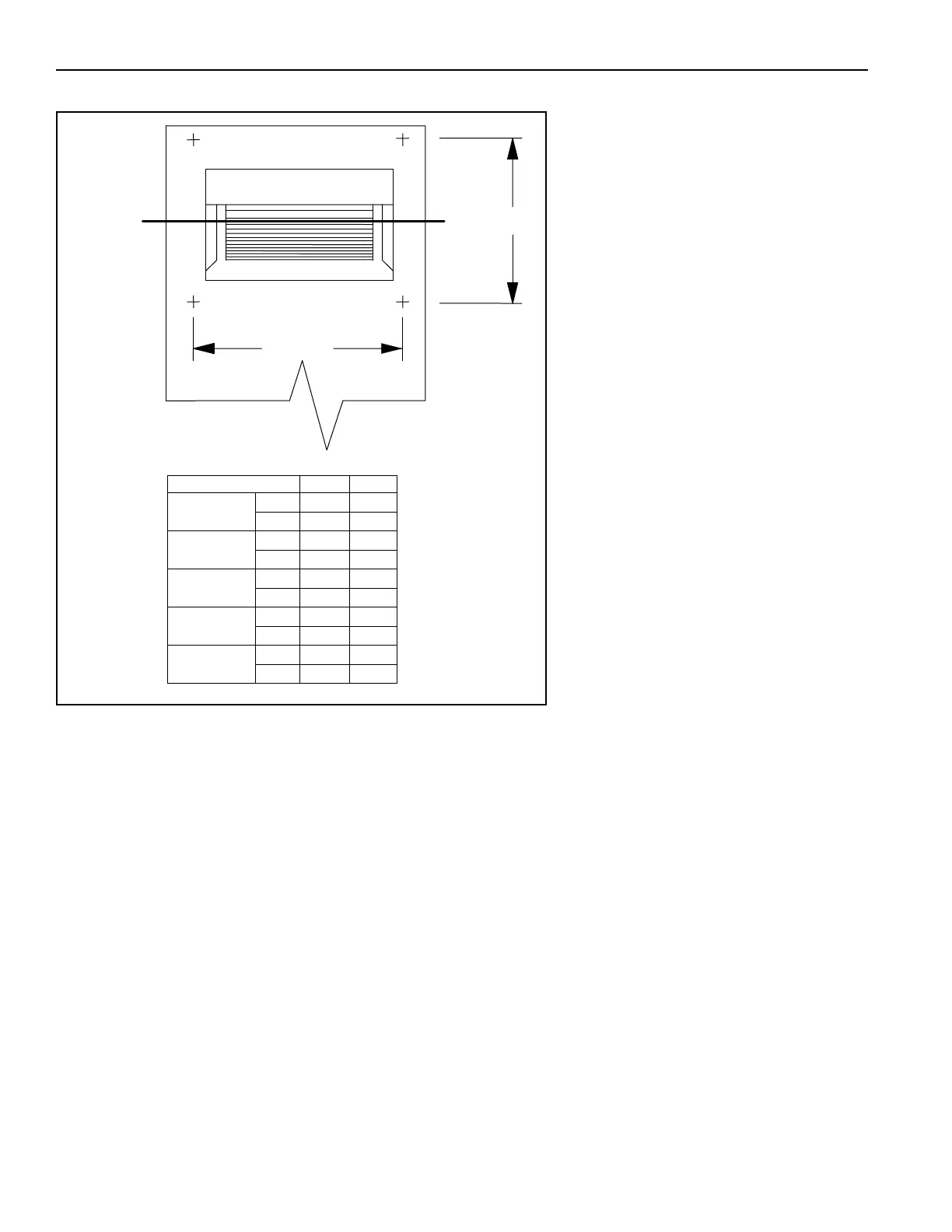

FIGURE 17: Mounting Hole Locations
A
B
Blower
Discharge
Centerline
Model A B
XT-112
(in)
24.6 22.5
(cm)
62.5 57.1
XT-115
(in)
32.1 34.0
(cm)
81.5 86.4
XT-118
(in)
36.6 36.8
(cm)
93.0 93.4
XT-125
(in)
40.6 40.3
(cm)
103.1 102.3
XT-130
(in)
45.7 45.7
(cm)
116.0 116.0
