BlueCool S Series 7 Wiring diagrams
25

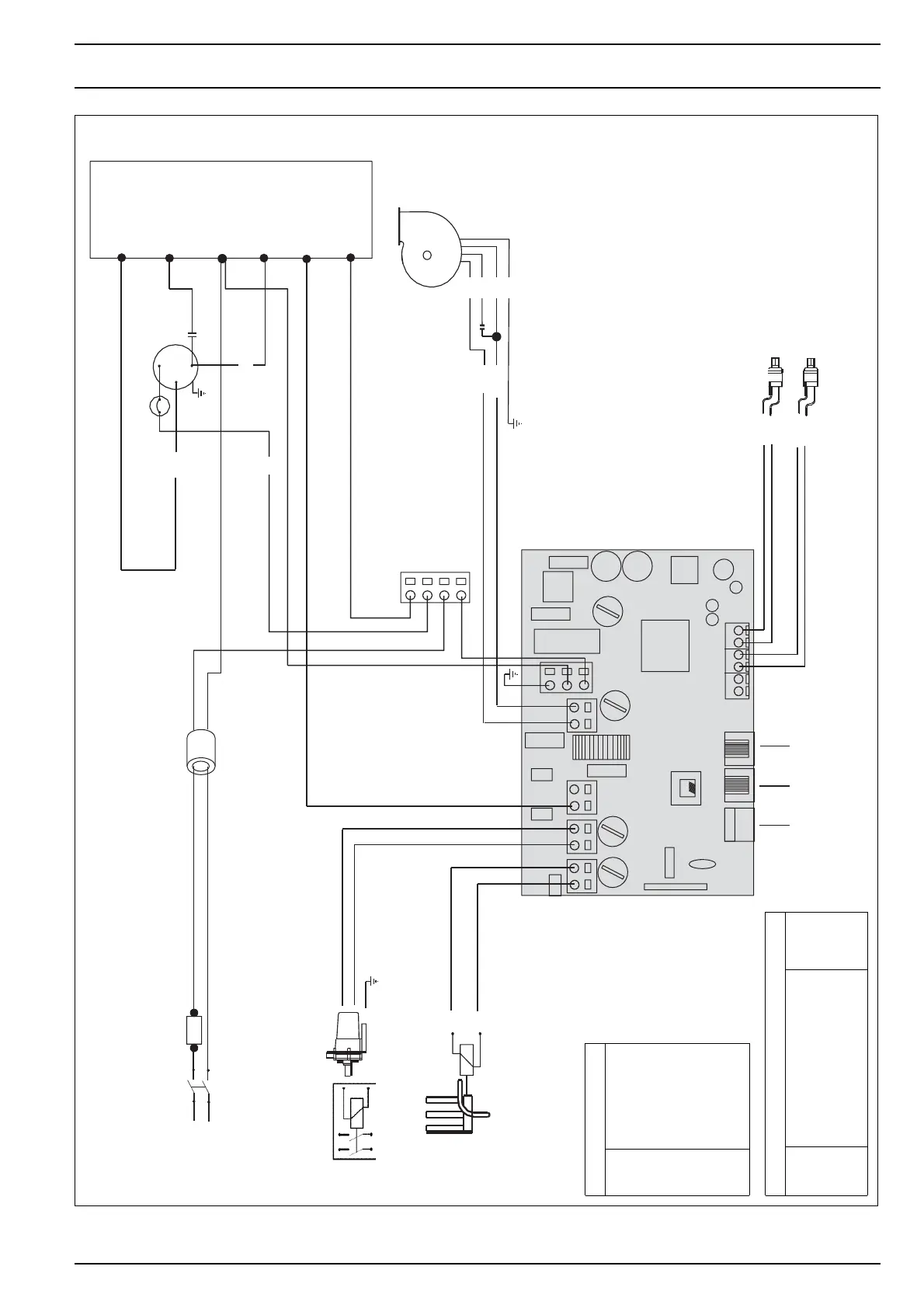

Fig. 17 BlueCool S27, with Soft Start
CB
gr
ge
vi
sw sw
rt
F105 F104
F103
F102
L
N
N
PE
Mains
F101
bl
bl
br
sw
gn
ws
Run Winding Run Cap Active Start Winding On Comp. Com
sw
bl bl
OLP
c
r
s
230 V AC switchboard
Sea water pump
4-way reverse valve
Ferrite
Fan
Low-pressure switch
High-pressure switch
Evaporator temperature sensor
USB connection
Digital display
Cabin tempera-
ture sensor
Cable colours
bl br ge gn gr rt sw vi ws
blue brown yellow green grey red black purple white
Fuses
F101 F102 F103 F104 F105
PCB Fan Compressor Sea water pump 4-way reverse valve
0.5 A 3.15 A 10 A 5A 3.15 A
Soft Start with relay
