4.4 Type label
The type label is located on the evaporator of the unit (see
Fig. 4).
You will find the output, order number and registration data
there.

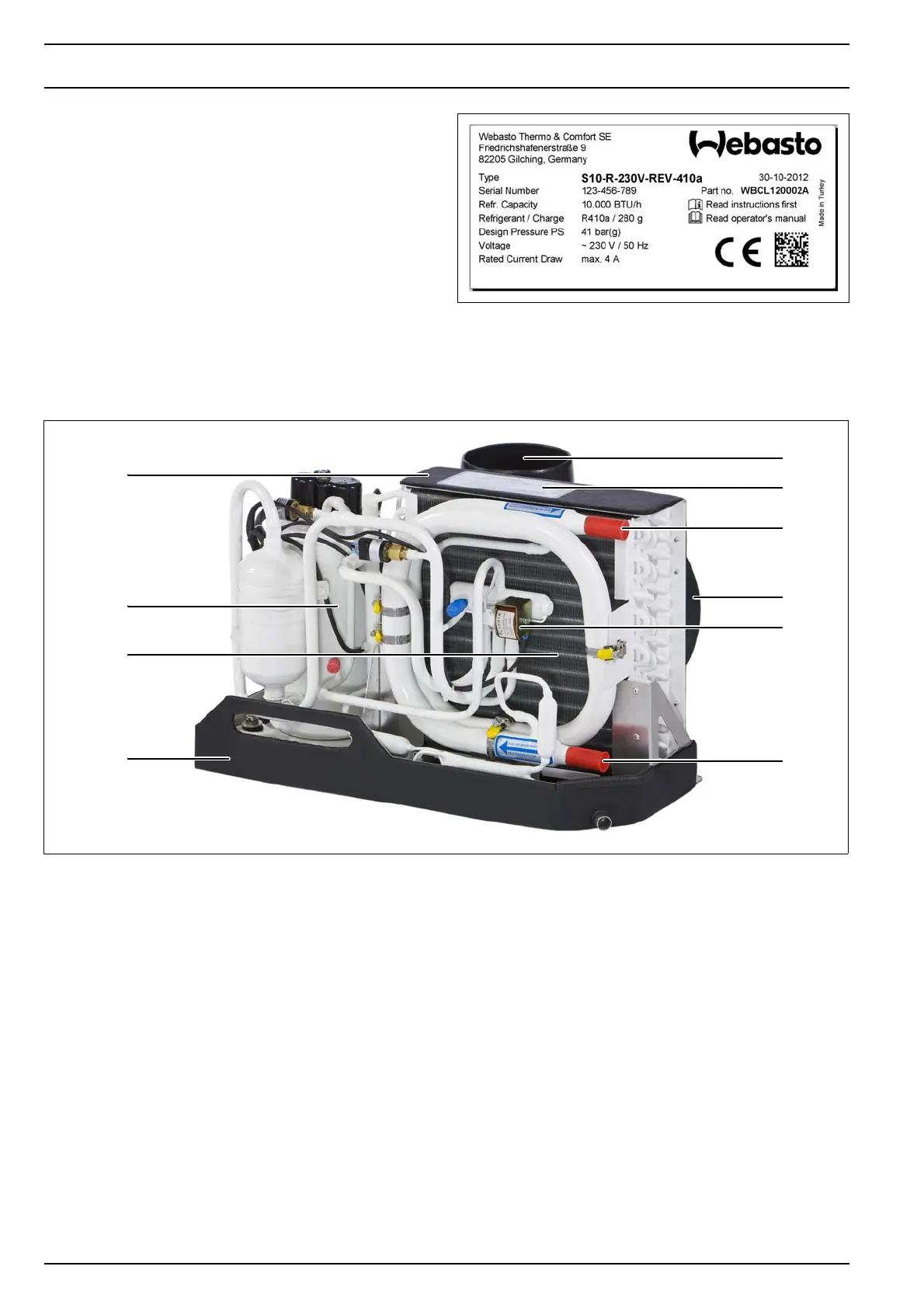

4.5 Unit description
Fig. 3 Example of type label
Fig. 4 Unit BlueCool S
6
1
2
3
4
9
5
8
7
10
1 = Fan outlet
2 = Type label
3 = Sea water outlet
4 = Fan motor
5 = 4-way reverse valve (cooling/heating)
6 = Sea water inlet
7 = Condensate tray (stainless steel)
8 = Air filter
9 = Compressor
10 = Evaporator
