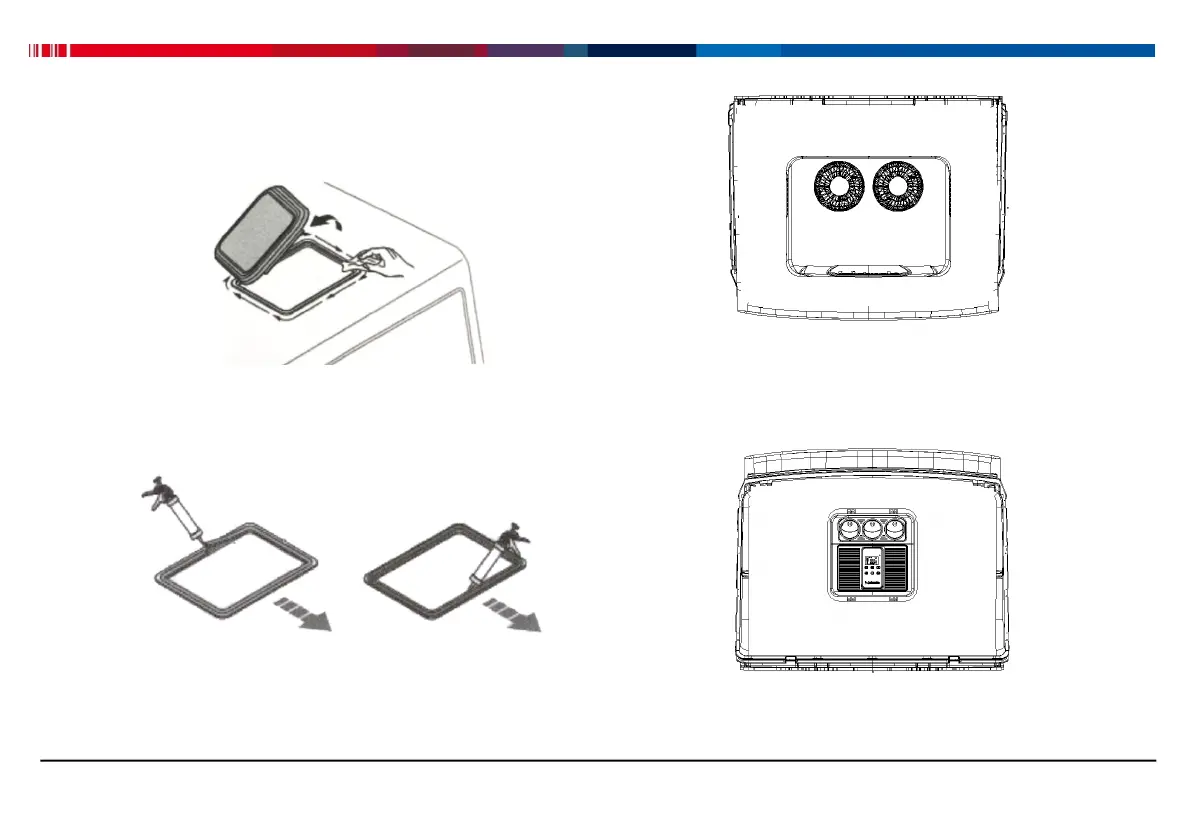

Fig.15 Clean roof perimeter zone
Step-2: Paste roof sealing sponge and glue at outside
and upside of foam. Details refers to section 4.4.
Fig.16 Roof foam pasting and gluing
Step-3:
Place A/C in center of roof opening (avoid any
damages during installation).
Fig.17 A/C locating in center of roof opening
Step-4: Fix A/C main assembly based on truck
models. Special installation refers to section 9.3.
Fig.18 Fixing A/C main assembly
To Next Page
