Webasto Cool Top 23 RT-E - General Installation & Notes; Fixing Holes Selection

9
Roof top 23 RT-E

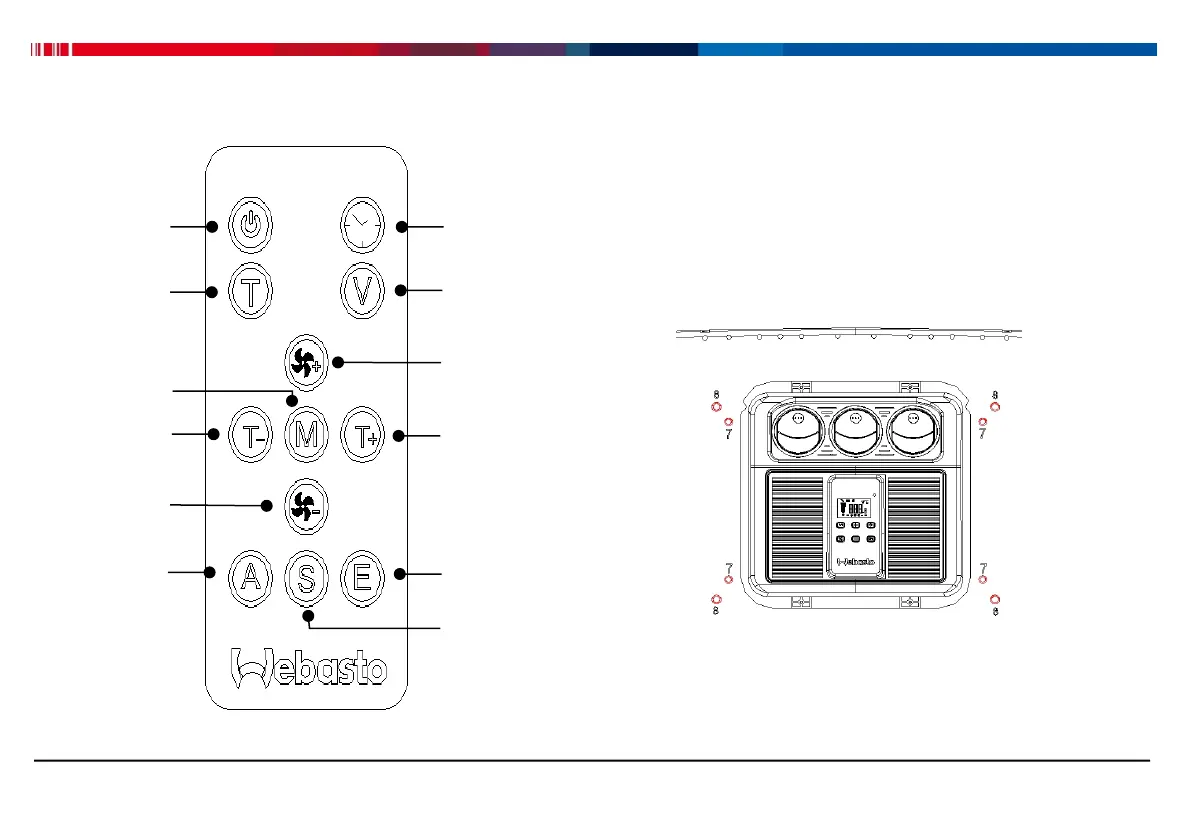

Fig.10 Remote control panel
4. General installation&notes
4.1 Fixing holes selection
Tianlong 2007/2010/2015 Model，Delong M3000、
F3000、Auman ETX、Hongyan GENLYON、C&C、Scania
R/P series and trucks in need of cutting roof.
Fig.11
Hole pattern 7 for interior plate (4xM6 nuts)
Hole pattern 8 for fixing brackets (4xM8 nuts)
Voltage query
Temp“-”
On-Off
Temp query
Airflow
“-”
Auto mode
Timer
Airflow“+”
Temp
“+”
Eco mode
Power model
Mode
