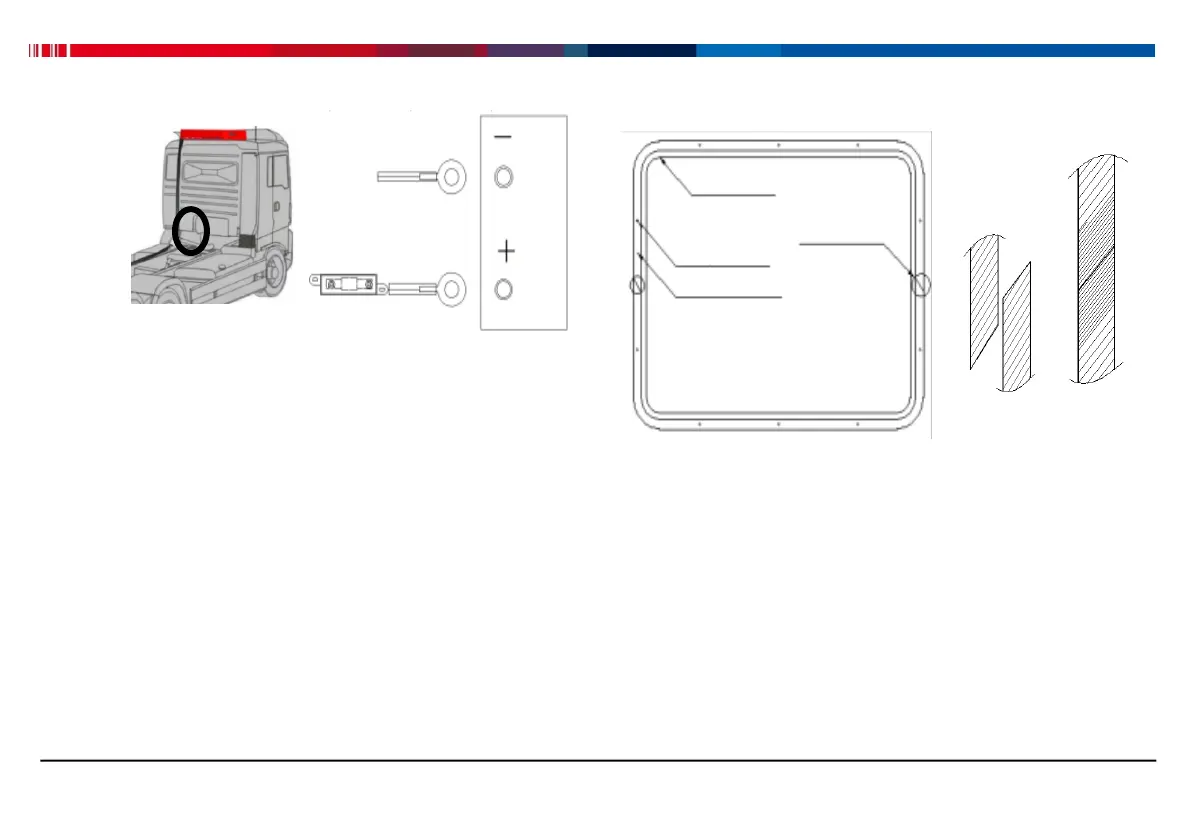

Fig.21 Harness connection schematic
Note：
(1) Connect red harness end to battery positive end,
and connect black harness to battery negative end
instead of ground electrode (GND) on truck frame.
(2) Disconnecting power harness to engine starter
In order to avoid overload voltage.
(3) Paste the sealing foam firmly in order to avoid any
water leakage into cab (referring to section 4.4).
4.4 Roof hatch sealing operation
Fig.22 Roof sponge cutting notes
Roof sealing sponge installation and notes:
(1) After confirming that the sponge can completely
cover the edge of the sunroof, use the art knife (lb50h)
as shown in the figure to cut the sealing sponge
obliquely, stagger obliquely by 1cm, and squeeze and
paste it; according to the actual installation, one side or
both sides can be selected to cut obliquely, and the
cutting edge is required to be neat.
