Webasto Cool Top 23 RT-E - Fixing Brackets Cutting & Notes

Roof top 23 RT-E
16

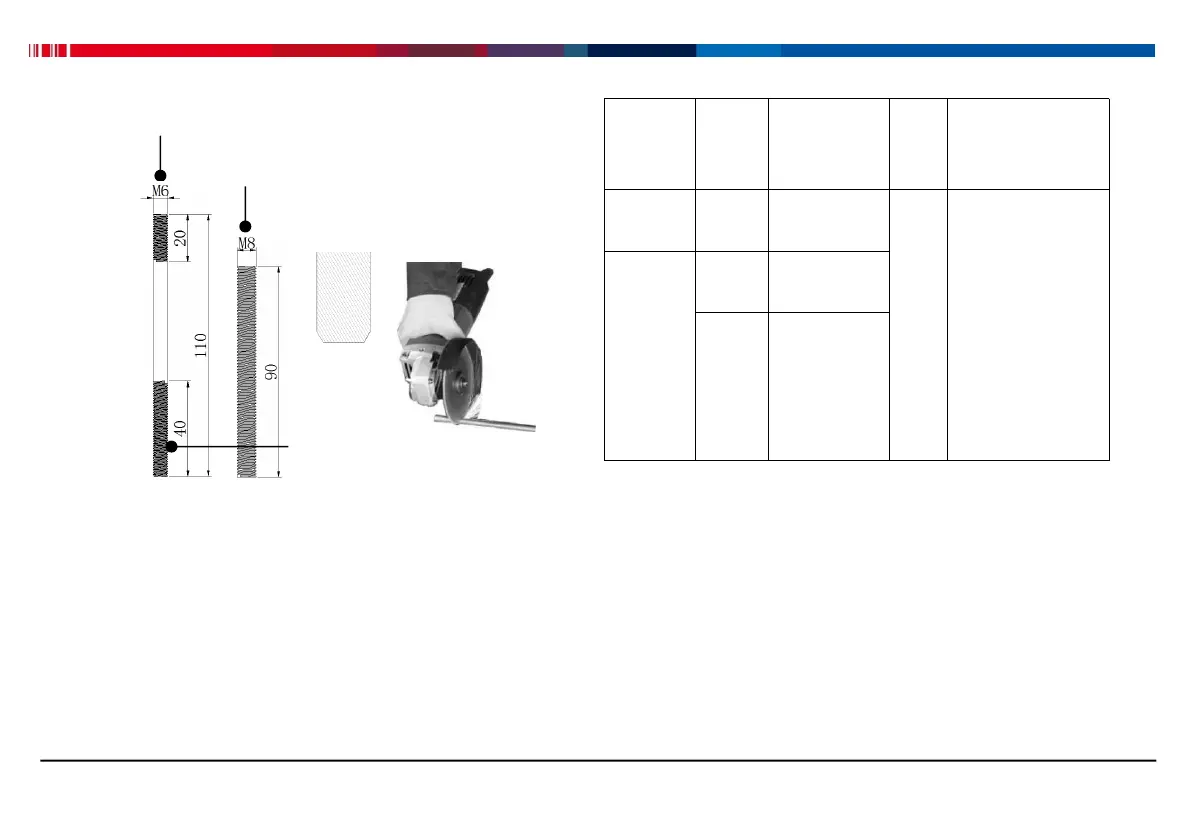

Fig.24 Stud screws cutting schematic
M8x90 screws cutting and notes:
The M8x90 full tooth bolt is used to fix the bracket.
When installing the bracket, measure the length first,
and select the cutting length according to the actual
installation situation.
4.7 Fixing brackets cutting&notes
(1) It is necessary to confirm the installation size before
cutting. If the size is too small after cutting, it will not be
able to install and fix.
(2) The grinder is used for cutting from both sides, and
the chamfering and deburring of the cutting end are
carried out.
Part
Name
Screw
tooth
length
Installation
position
Tool
Comment
M8*90
Screw
90
M8 nut
grin
der
The cutting
length should be
selected
according to the
actual situation;
the m6x110 stud
should be cut
within the thread
length of 40
M6*110
stud bolt
20
M6 nut
40
Fixed
universal
interior plate
M8x90 full tooth bolt cutting
Cutting of M6x110 stud
Chamfer cutting end
Cutting
