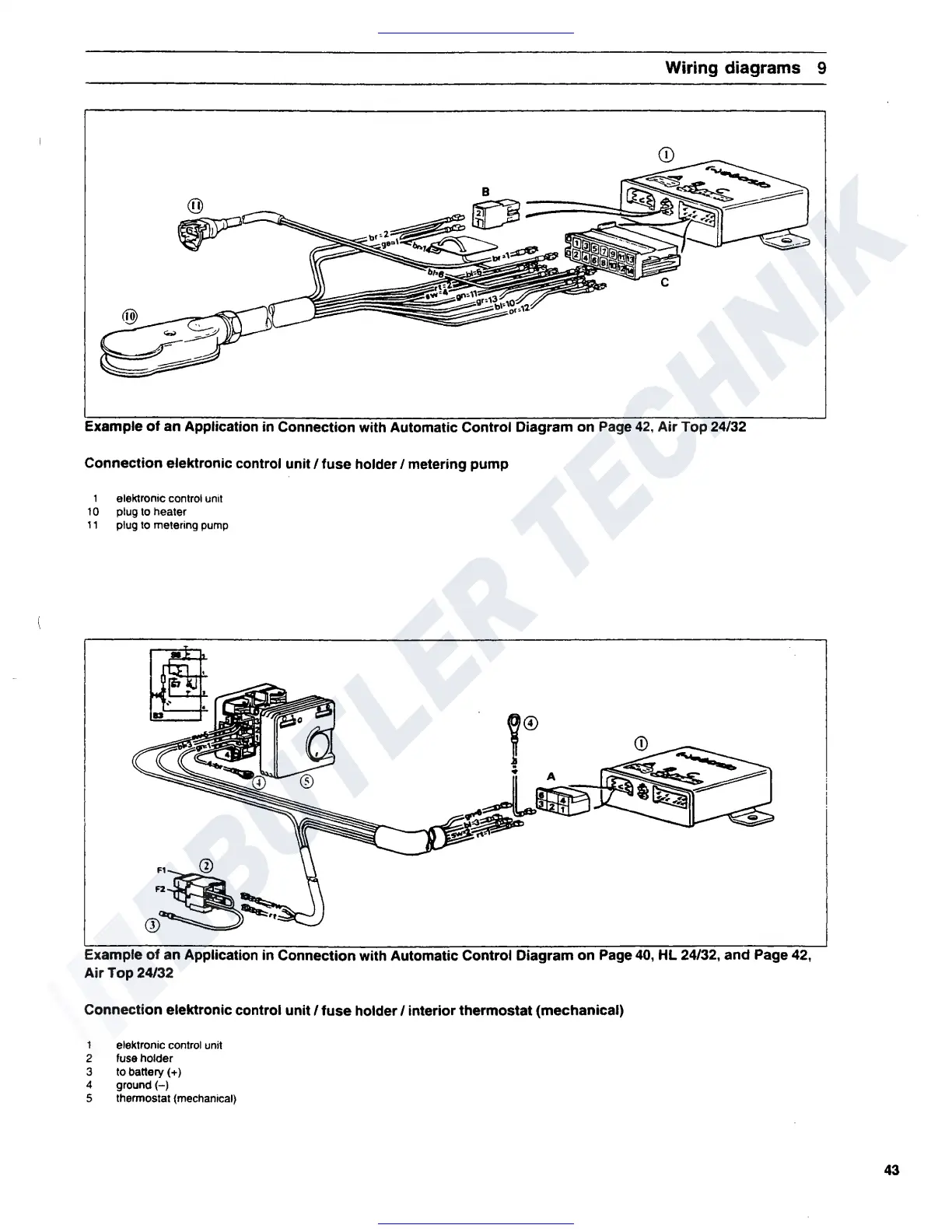

Wiring diagrams 9
Example
of
an Application in Connection with Automatic Control Diagram on Page
42,
Air
Top 24/32
Connection elektronic control
unit/
fuse
holder/
metering pump
1 elektronic control
unit
1 O plug
to
heater
11
plug
to
metering
pump
Example
of
an Application in Connection with Automatic Control Diagram on Page
40,
HL 24/32, and Page 42,
Air
Top 24/32
Connection elektronic control unit /
fuse
holder/
interior thermostat (mechanical)
1 elektronic control
unit
2
fuse
holder
3
to
battery(+)
4
ground(-)
5 thermostat (mechanical)
43
