Webasto TSL 17 Coolant Heater
Webasto Product N.A., Inc. 13 www.webasto.us

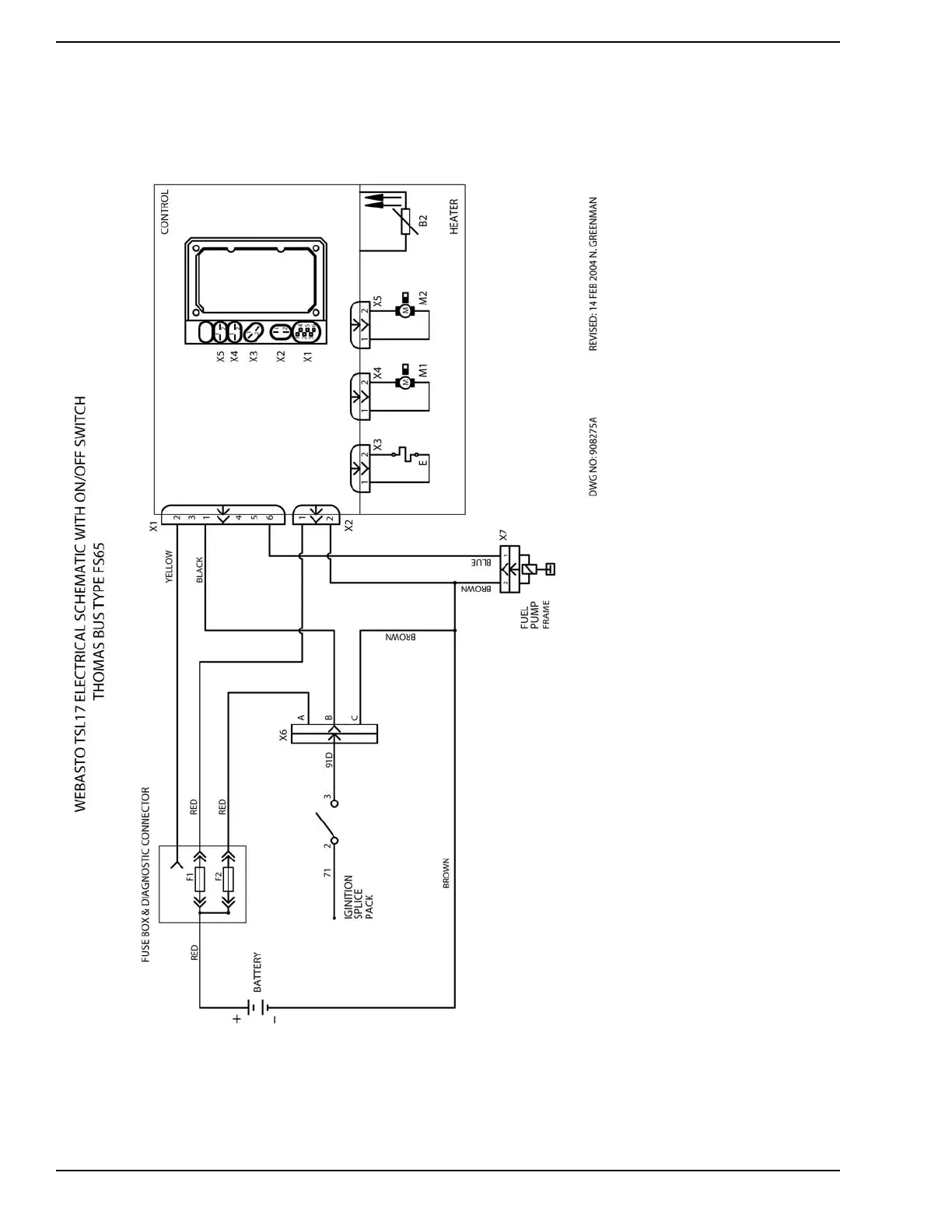

Figure 5.
Schematics
B2 Temperature Sensor
E Ceramic Igniter/Flame Sensor
F1 20A Fuse
F2 2A Fuse
M1 Combustion Air Fan
M2 Coolant Circulation Pump
X1 Connector 6–Way
X2 Connector 2–Way
X3 Connector 2–Way
X4 Connector 2–Way
X5 Connector 2–Way
X6 Connector 3–Way
X7 Connector 2–Way
