o Adding Extra Elevator Banks
LA-LS Boards

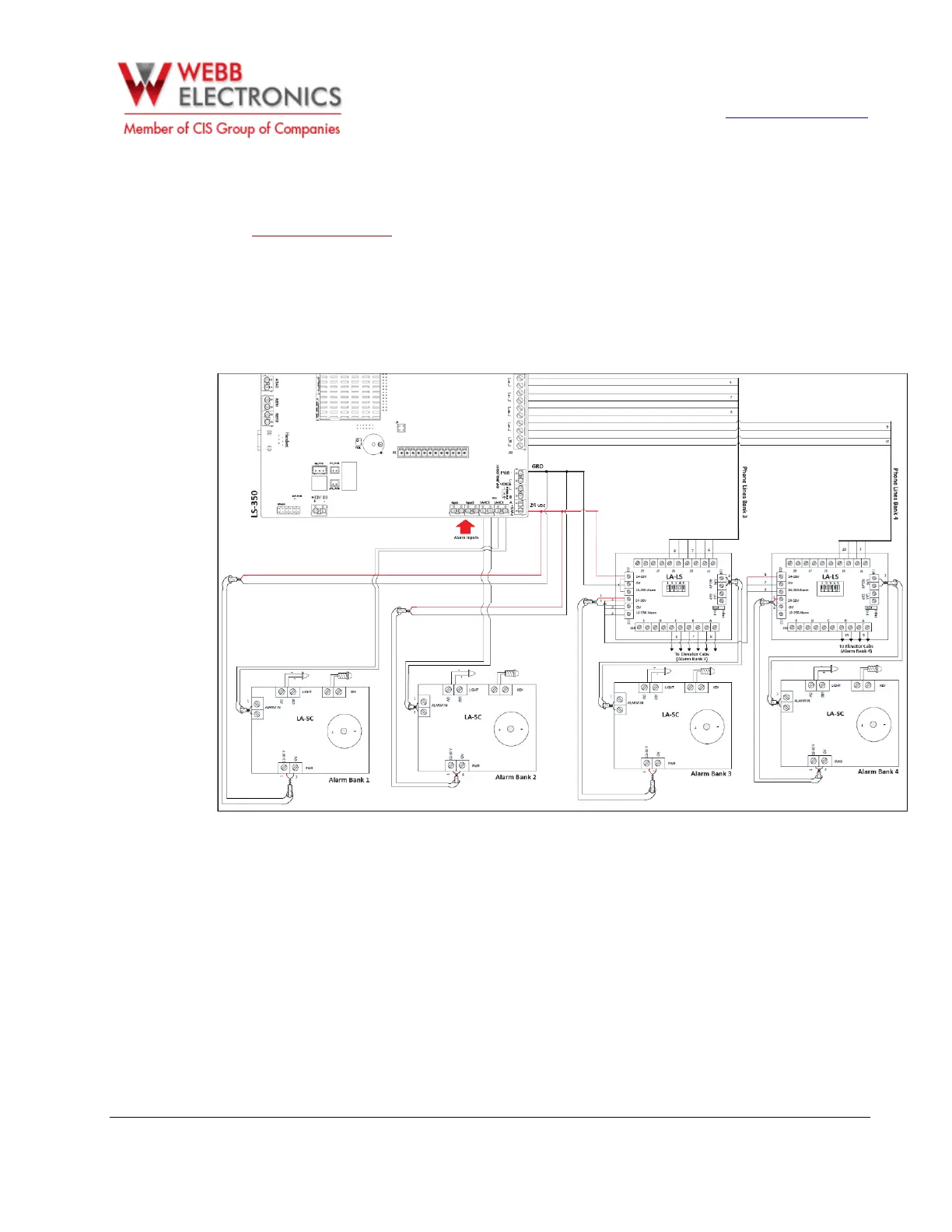

It’s possible to use legacy LA-LS and LA-SC modules to support extra elevator banks. When doing
so, use the wiring schematic below as reference.
In order to reflect the alarm coming from an external LA-LS module on the LS-350 screen, connect
it to alarm output to the alarm input mentioned earlier on the Alarm Connections section.
