o Line Output

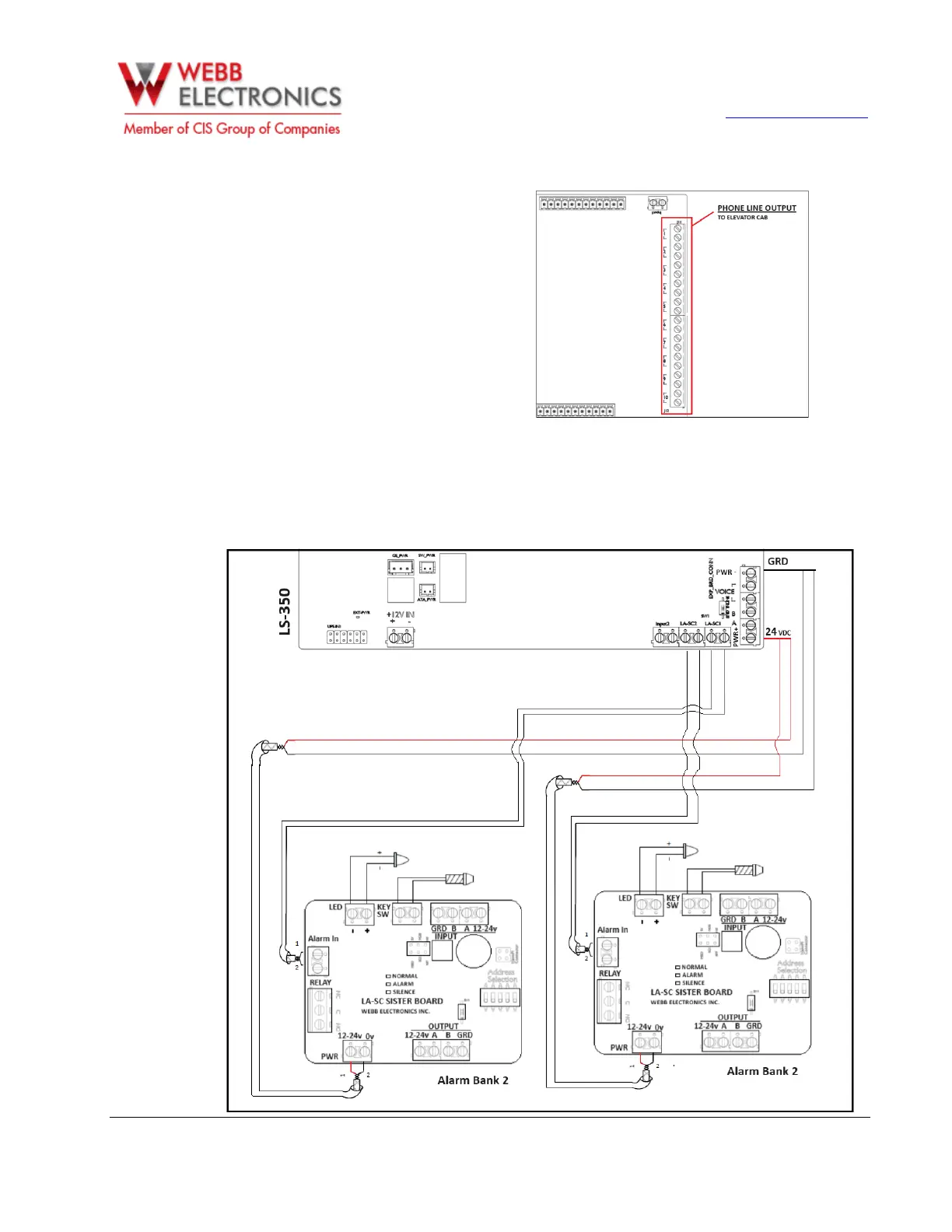

The line outputs for both models of
LS-350 serve up to 10 elevator phones
and the phone line outputs are
located on the right side of the main
board. See connectors highlighted:
• Alarm Connections
The LS-350 has two-line monitoring alarm outputs (dry contact – two banks). Please find typical wiring
below:
