Webb WEER33 - Parts Diagram

PARTS LIST
ITEM
PARTNUMBER
DESCRIPTION
QTY
ITEM
PARTNUMBER
DESCRIPTION
QTY
1
WE124-4080062
SwitchBoxAssembly
1
34
WE124-105990072A
RibbedBelt
1
2
WE124-104030424
ST4.2*25Screw
2
35
WE124-103050242
Bearing
1
3
WE124-103080038
TopHandleAssembly
1
36
WE124-103990417
BearingHolder
4
4
WE124-301070859
CableHanger
1
37
WE124-301070918
RearWheel
2
5
WE124-301070858
CableClip
2
38
WE124-103990797
AxleClamp
4
6
WE124-104040122
M6X45Bolt
2
39
WE124-103050251-1
BackAxle
1
7
WE124-103020131
RightLowerHandle
1
40
WE124-301070857
AxleBracket
1
8
WE124-301070851
HandleKnob&Nut
2
41
WE124-301070914
LowerDeck
1
9
WE124-103020132
LeftLowerHandle
1
42
WE124-301070703
Lockpin
2
10
WE124-301070912
HandleAdjustmentButton
2
43
WE124-301070706
LockpinSeat
2
11
WE124-103060194
HandleAdjustmentSpring
2
44
WE124-301070849-1
ConnectingRod
1
12
WE124-301070826
Pin
2
45
WE124-103990861
SupportBar
1
13
WE124-301070827
RightSupportSeat
1
46
WE124-103040135
ST4.2X12Screw
3
14
WE124-301070396F
MotorCoverCarryHandle
1
47
WE124-103060299
TensionSpring
1
15
WE124-301070910
MotorCover1
1
48
WE124-301070915
FrontWheel
2
16
WE124-301070911
MotorCover2
1
49
WE124-103050250
FrontAxle
1
17
WE124-301070913
UpperDeck
1
50
WE124-103990812
LocatingPin
1
18
WE124-301070854
LeftSupportSeat
1
51
WE124-301070845
HeightAdjuster
1
19
WE124-4070212
MotorAssembly
1
52
WE124-301070861
SafetyCover
1
20
WE124-301070572
MotorFan
1
53
WE124-103030126
Blade33cm
1
21
WE124-103070119
Pulley
1
54
WE124-104040205
BladeBolt
1
22
WE124-301070860
DustCap
1
55
WE124-301070856
HousingInsert
1
23
WE124-104020020
Locknut
1
56
WE124-104050028
ShaftRing
2
24
WE124-103050243
Bearing
1
57
WE124-103050260
RotationShaft
1
25
WE124-301070575A
MotorBracket
1
58
WE124-103060300
TorsionalSpring
1
26
WE124-103060208
Spring
1
59
WE124-301070916
GrassFlap
1
27
WE124-105990189
BrakeBlock
1
60
WE124-103020124
CollectorFrame
1
28
WE124-104030378
ST4.8×18Screw
5
61
WE124-301070917
CollectorTop
1
29
WE124-104030162
ST4.2X18Screw
7
62
WE124-301070580P
CollectorCarryHandle
1
30
WE124-103050244
Bearing
1
63
WE124-301062859
FullIndicatorFlap
1
31
WE124-104030042
ST3*8Screw
4
64
WE124-105011066
BottomCollector
1
32
WE124-103040115
BrakeBlock
1
65
WE124-104030136
ST4.2x15Screw
19
33
WE124-301070855
PulleyAssembly&Axle
1





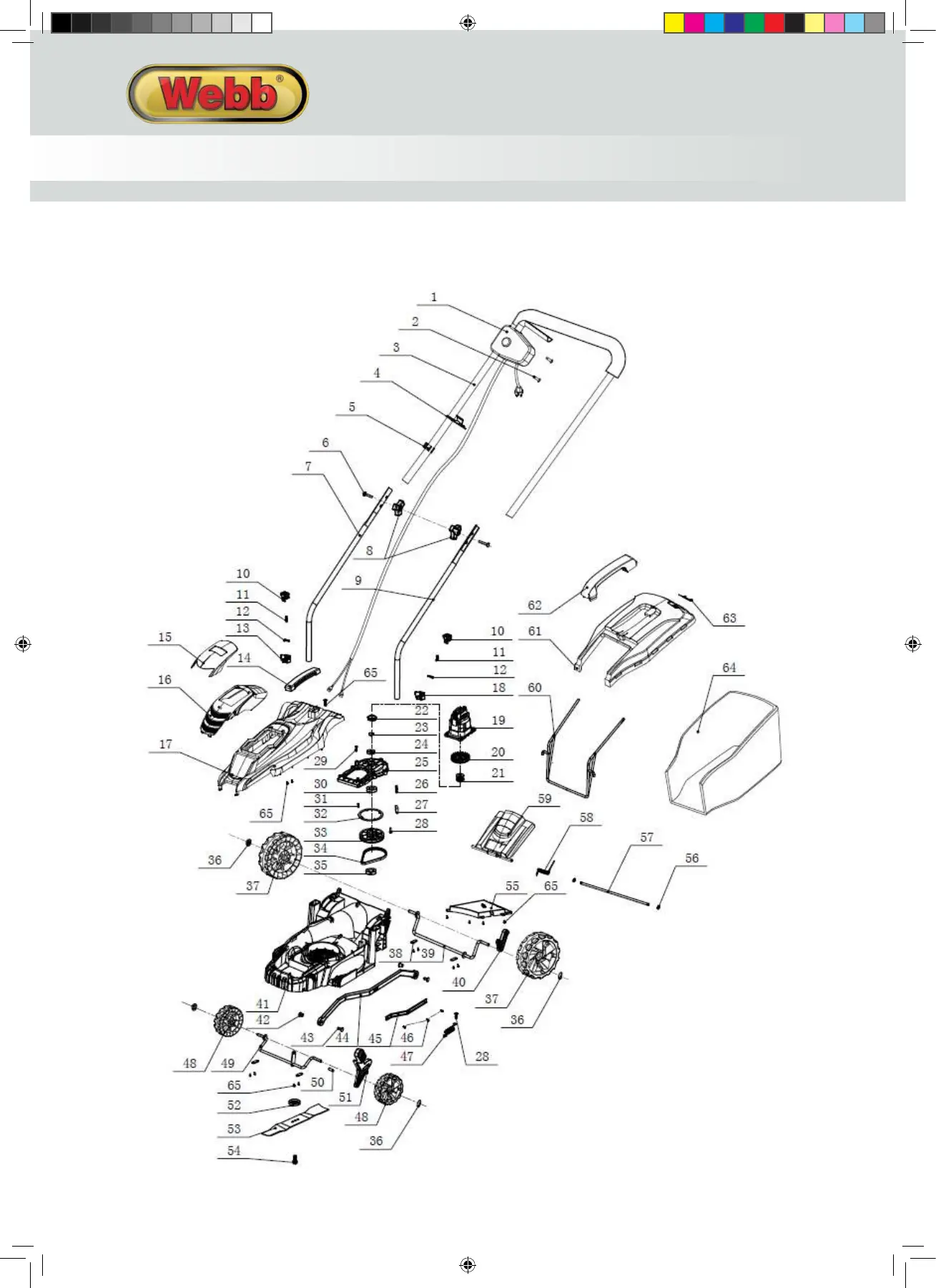

PARTS DIAGRAM
INSTRUCTION MANUAL
