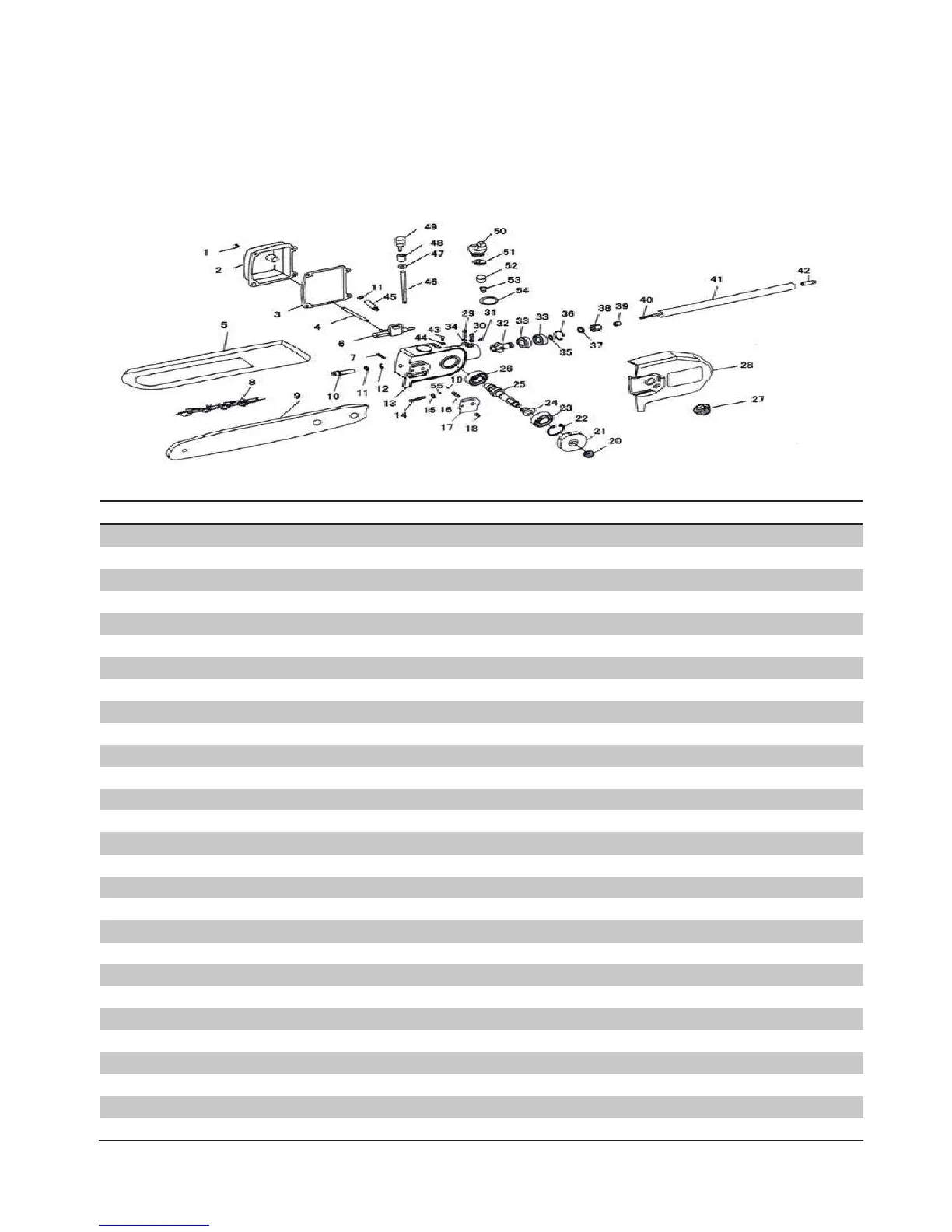

PARTS DIAGRAM - WEMC26 Pruner
PARTS LIST - WEMC26 Pruner
Item No Handy Part No. Webb Description Qty
Item No Handy Part No. Webb Description Qty
1 WE03020020032 Screw M4X12 4
28 WE70030030334 Gear Case cover 1
2 WE70030060064 Case Cover 1
29 WE03010010010 Screw M5X25 1
3 WE02070010130 Gasket 1
30 WE03010010008 Screw M5X10 1
4
Pipe 1 1
31 WE03040050060 Washer 1
5 WE70030030338 Chain/Bar Cover 1
32 WE02020090074 Gear 1
6 WE02050130001 Oil Pump 1
33 WE03090010011 Bearing 609z 2
7 WE02030010007 Pipe 1
34 WE03050010014 Washer φ5 2
8 WE02050110001 Chain 1
35 WE03120010008 Retaining Ring φ9 1
9 WE02050110003 Chain Bar 1
36 WE03120020006 Retaining Ring φ26 1
10 WE03010110030 Chain Adjustment Bolt 1
37 WE02020150010 Washer 1
11 WE03110020027 O-ring 2
38 WE02080020082 Rubber Cover 3
12 WE03120030005 E-Ring φ6 1
39 WE02040010005 Oil-Bearing 3
13 WE70070010016 Gear Case(φ24) 1
40 WE02020060021 Driveshaft 1
14 WE03020020037 Screw M5X40 1
41 WE02010010115 Shaft 1
15 WE03030070040 Nut M5 1
42 WE02020160294 Joint B 1
16 WE03010050009 Bolt 1
43 WE03010060048 Screw M6×10 1
17 WE02050110002 Washer 1
44 WE03040020015 Washer φ6 1
18 WE03010110107 Screw M6X8 1
45 WE03010110029 Bolt 1
19 WE03060020010 Pin 1
46
Pipe 2 1
20 WE03030060002 Nut M6 1
47 WE03040010009 Washer 5 1
21 WE02050110010 Sprocket 1
48 WE02050120014 Sieve 1
22 WE03120020003 Retaining Ring φ28 1
49 WE02050120013 Oil Filter 1
23 WE02060040144 Bearing 1
50 WE70030060050 Oil Filler Cap A 1
24 WE02020090023 Gear 1
51 WE70030060051 Oil Filler Cap B 1
25 WE02020090049 Shaft 1
52 WE02090010033 Sleve 1
26 WE03090010039 Bearing 1
53 WE02080040001 Valve 1
27 WE03030050009 Nut M8 1
54 WE03110010001 O-ring 1
55 WE03040020019 Washer 1
