14 CR 1_CR 2R
1
2
2
1
1
2

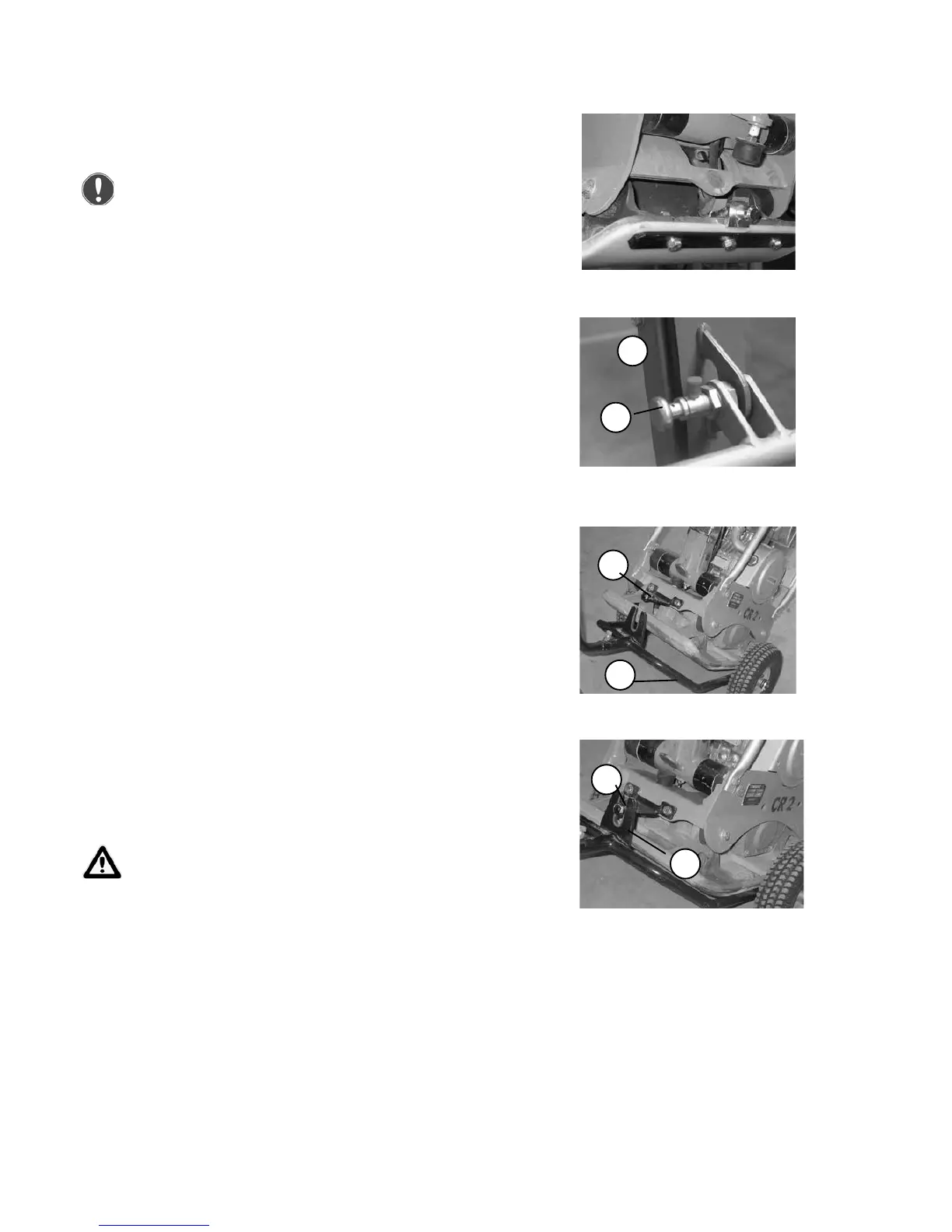

Installing the protective mat
Fasten the protective mat with holder, screws, spring-lock
washers and nuts on the base plate front and rear.
Ensure that the protective mat rests under the base plate.
Transport with hand truck
Mount the retaining pin (1).
Slide the hand truck (2) under the base plate.
Engage the retaining pin (1) in the retaining element (2) of
the undercarriage.
The retaining pin must be correctly engaged in the
retaining element, otherwise there is danger of injury due
to the compactor sliding off.
Arrest the manual guidance rod (1) with the spring bolt (2).
