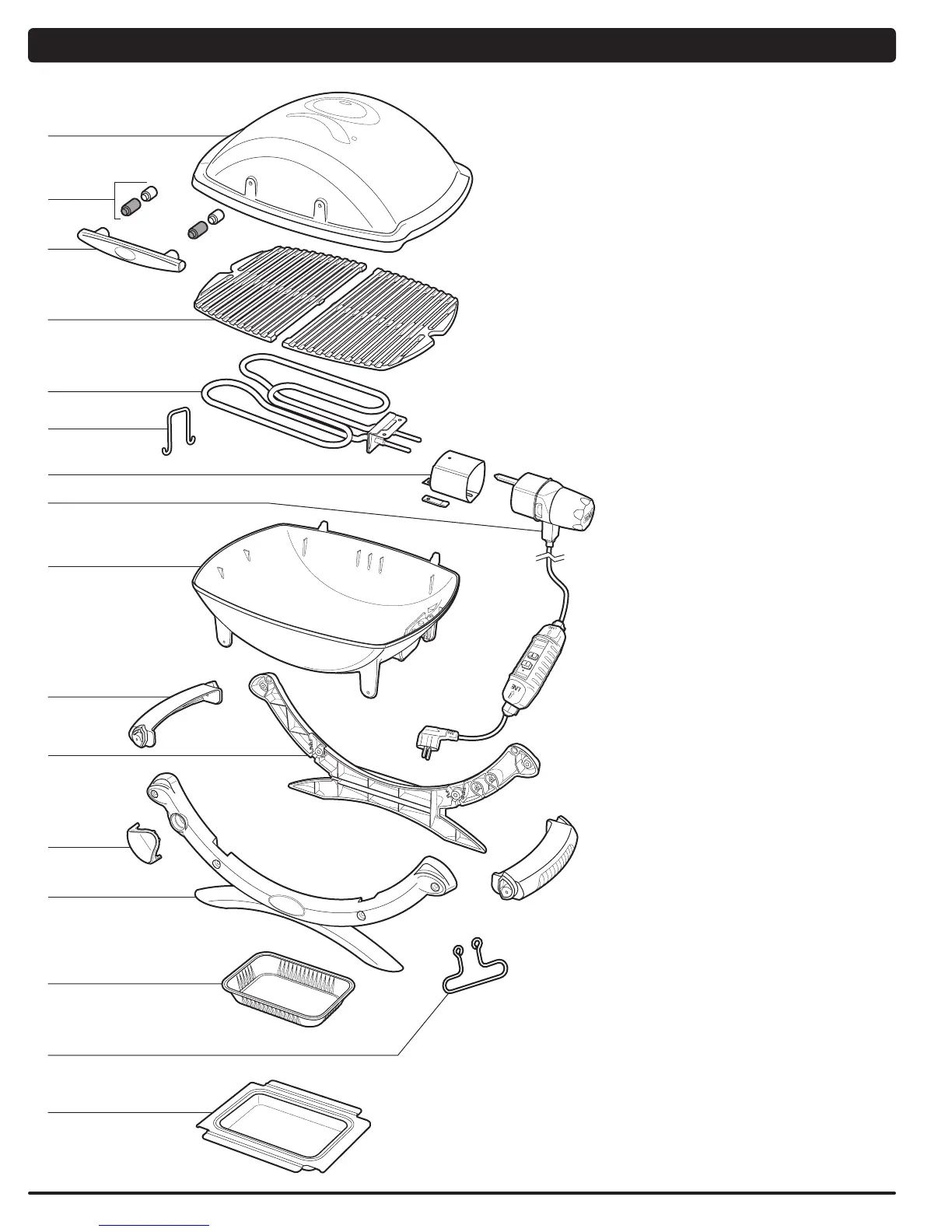

Weber 2400 - Exploded Views and Parts Identification; Exploded View - Q 1400 Model

4
1. Lid
2. Ceramic Spacer/Plastic Spacer
3. Handle
4. Cooking Grate
5. Heat Element Assembly
6. Heat Element Support
7. Controller Bracket Sleeve
8. Temperature Controller
9. Cookbox
10. Carrying Handle
11. Rear Cradle
12. Cradle Logo
13. Front Cradle
14. Disposable Drip Pan
15. Wire Hanger
16. Catch Pan
EXPLODED VIEW - Q
™
1400
™
Q
™
1400
™
_ELECTRIC_EURO_061015
1
2
3
4
7
5
6
8
10
11
13
12
9
14
16
15
