LPG CYLINDER INSTALLATION

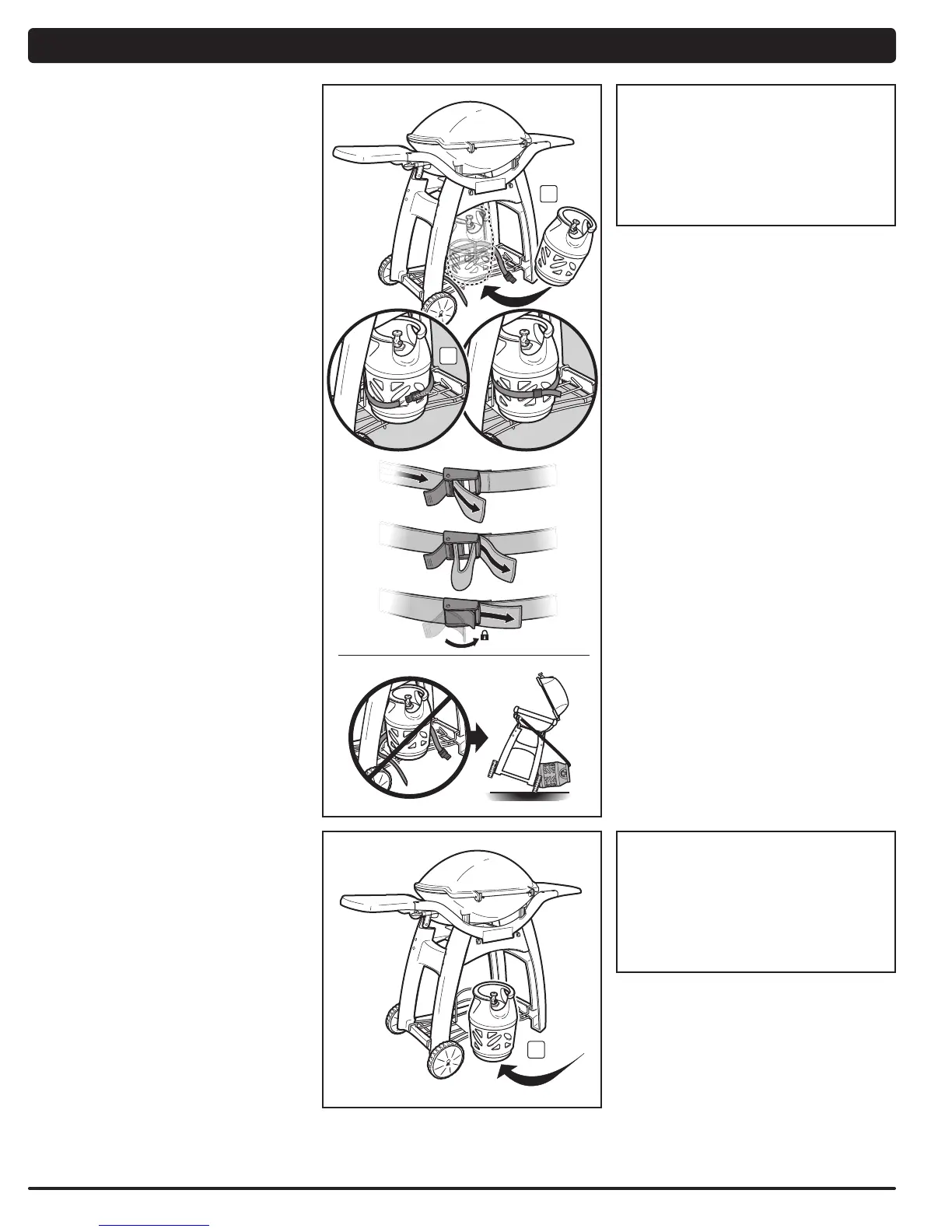

INSTALLATION ON CART
A) Make sure the cylinder rest is installed to prevent
scratching the bottom rack. Lift and place the LPG
cylinder on the cylinder rest (1).
B) Turn the cylinder so the opening of the valve is facing
the right side or back of grill.
C) Secure the cylinder to the cylinder bracket using the
cylinder strap (2).
m WARNING: The cylinder must be secured
to the cylinder bracket when grill is in
use.
D) Connect the regulator to the cylinder. Refer to
“CONNECTING THE REGULATOR TO THE LPG
CYLINDER.”
Maximum LPG cylinder
capacity when INSTALLED ON
CART under the grill is 6kg.
The length of hose must not
exceed 1.5 metres.
REQUIREMENTS FOR INSTALLATION
ONGROUND
If the LPG cylinder you have exceeds the maximum size
requirements for installation on cart, the cylinder must be
placed on the ground behind the grill. The maximum size
requirements for cylinders installed on ground are:
Cylinder Capacity: 13 kg maximum
Cylinder Height: 587 mm maximum
Cylinder Width: 306 mm maximum
INSTALLATION ON GROUND
A) Place the LPG cylinder on the ground, behind the
grill(3).
B) Turn the cylinder so the opening of the valve is facing
the right side or back of grill.
C) Connect the regulator to the cylinder. Refer to
“CONNECTING THE REGULATOR TO THE LPG
CYLINDER.”
Maximum LPG cylinder
capacity when INSTALLED ON
GROUND is 13 kg.
The length of hose must not
exceed 1.5 metres.
