Weber 42372 - Burner Replacement Guide; Replace Main Burners

28
1 = Grounding Wire
2 = Solid Red Wire
3 = Green Tab with Black Wire
4 = White Tab with Black Wire
5 = Yellow Tab with Black Wire
6 = Blue Tab with Black Wire
-
+
5
-
+
6
4
2
3
1
1 = Solid Blue Wire
2 = White Tab with Black Wire
3 = Yellow Tab with Black Wire
4 = Blue Tab with Black Wire
-
+
-
+
2
3
4
1
D4
D6
REPLACE MAIN BURNERS
1. Your Summit
®
gas grill must be OFF and cool.
2. Turn gas OFF at source.
3. Disconnect regulator.
4. Remove cooking grates.
5. Remove Smoker box.
6. Remove Flavorizer
®
bars.
7. To remove control panel refer to “Remove the control panel” under “Check for Gas Leaks.”

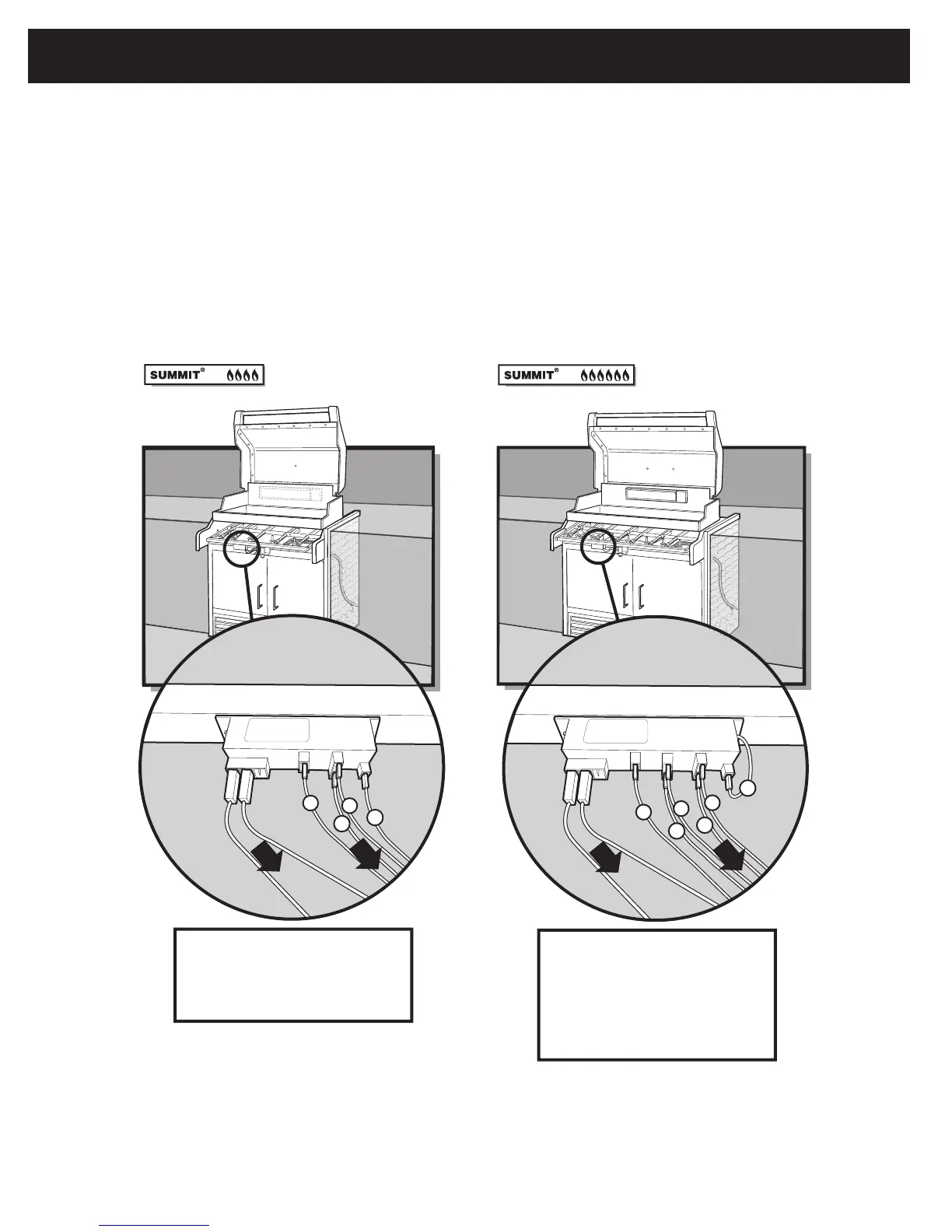

8. Disconnect all ignition wires from the Ignition Module.
MAINTENANCE
