Weber 42372 - Manifold and Thermocouple Maintenance; Remove Manifold Assembly

29 29

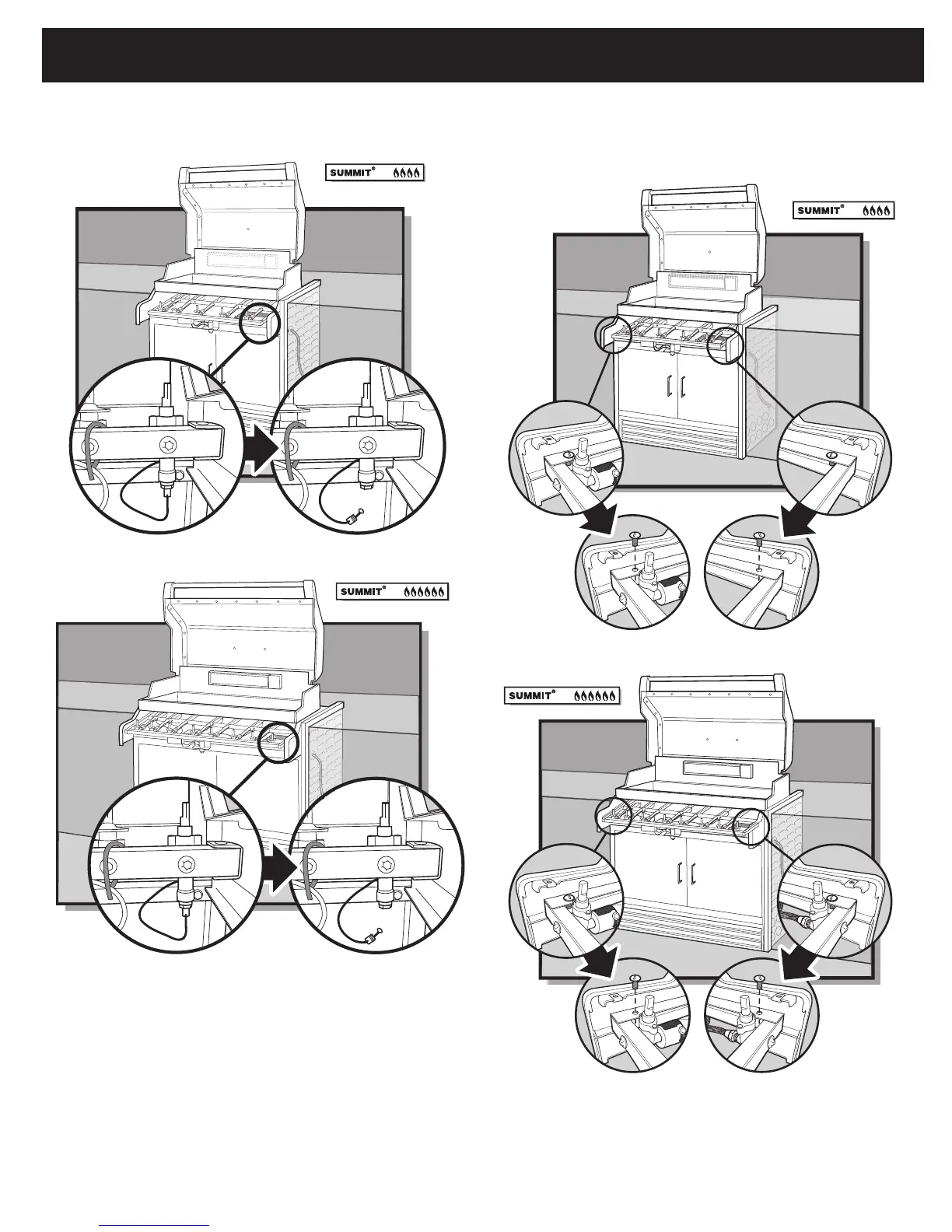

9. Disconnect the Thermocouple from the IR Burner valve. 10. Remove screws from the manifold assembly: (a) Locate the screws on
both sides of the manifold frame.
(b) Remove the screws from manifold frame.
