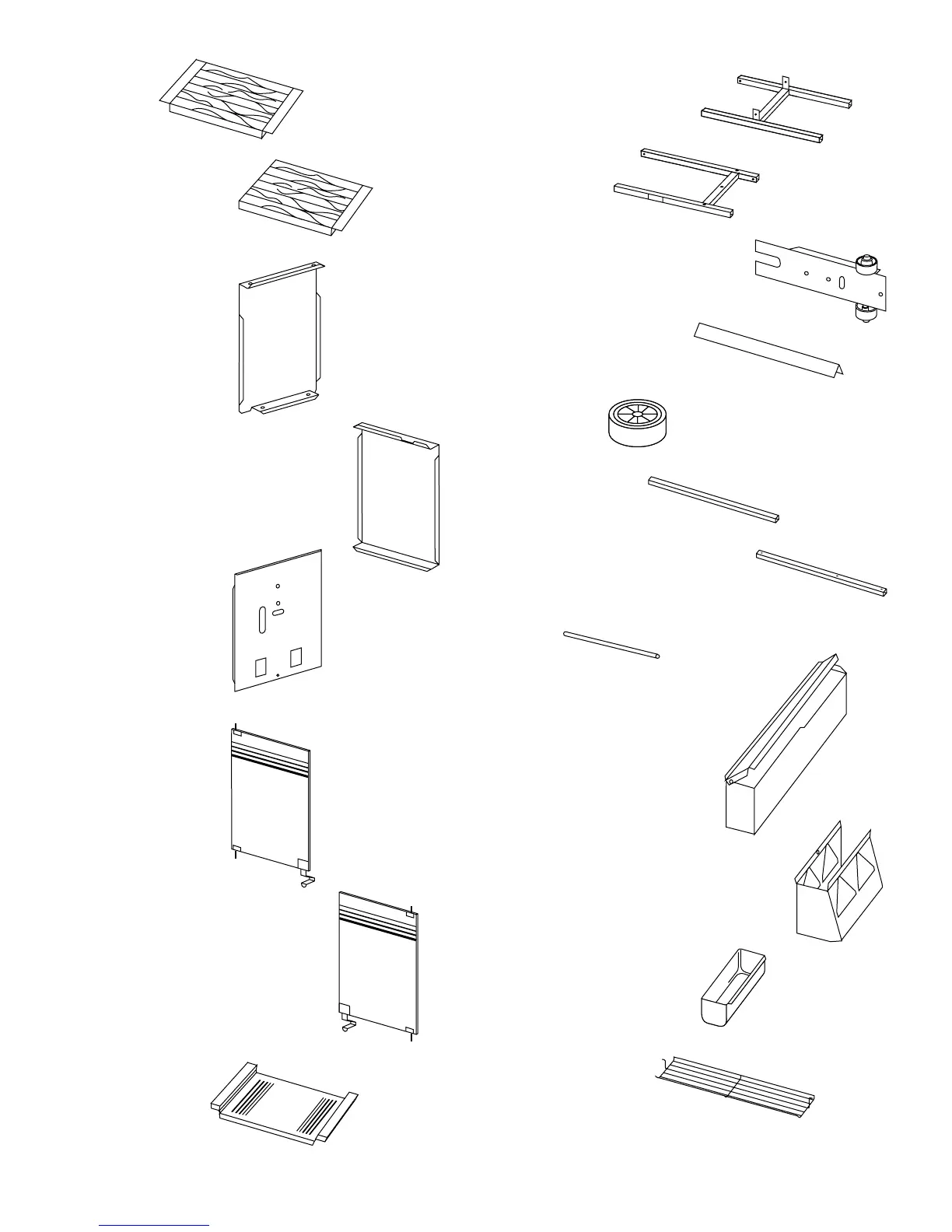

Left frame
Wheel frame
Tank panel assembly
Five long Flavorizer Bars
Two wheels
Frame connector
Frame connector with bushings
Axle
Steam-N-Chips Smoker body
Steam-N-Chips Smoker flue
Steam-N-Chips Smoker
water pan
Warm-Up Basket
Work table
Two swing tables
Left end panel (#1)
Panels and doors are
identified with
removable stickers.
Please leave on during
assembly.
Three back panels (#2)
Right end panel (#3)
Left hand glass door
assembly (LH)
Two right hand glass door
assemblies (RH)
Serving tray
