Step 11
Install igniter
Note - The igniter wires are already attached to the Gas
Catcher Ignition Chamber and the igniter. This was done to
factory test the ignition system.
The igniter lock nut is on the igniter.
Insert the top of the igniter up through the large part of
the keyhole in the frame brace. Figure 12 (b). Loosen the
igniter lock nut and slide the igniter into the small part of
the keyhole. Figure 12 (c). Tighten the igniter lock nut.
Figure 12.
Note - If the igniter works loose, carefully tighten the igniter
lock nut with an adjustable wrench or pliers.

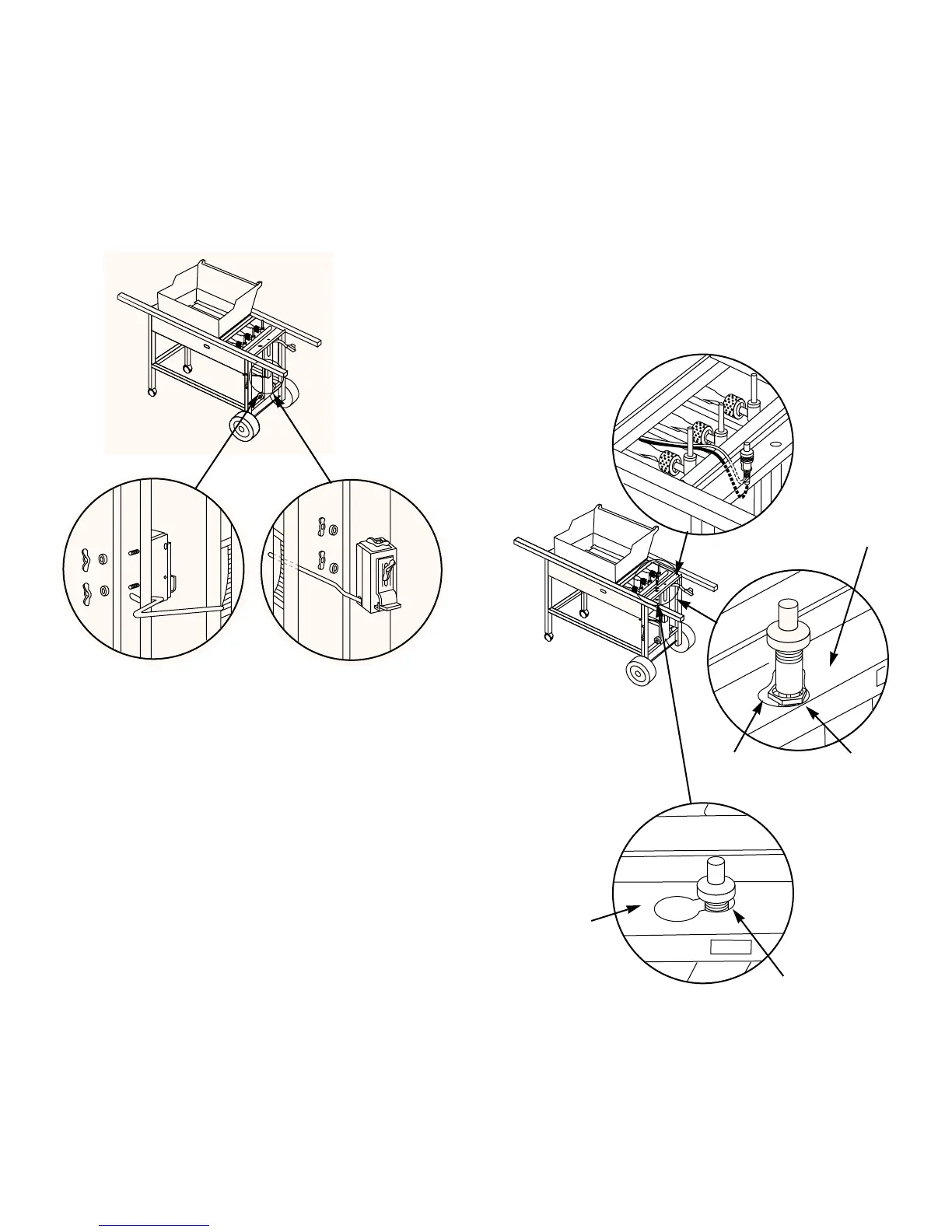

Figure 12
Igniter lock nut
Keyhole in
frame brace
Step 10
Add fuel scale
You will need: fuel scale, two 1/4-20 wing nuts and two
nylon washers.
Slip the bolts on the back of the fuel scale assembly through
the two small holes in the tank panel. Make sure indicator
rod of fuel scale is on the left side of the wheel frame.
Add washers, then wing nuts and tighten. Figure 11.
