C-5

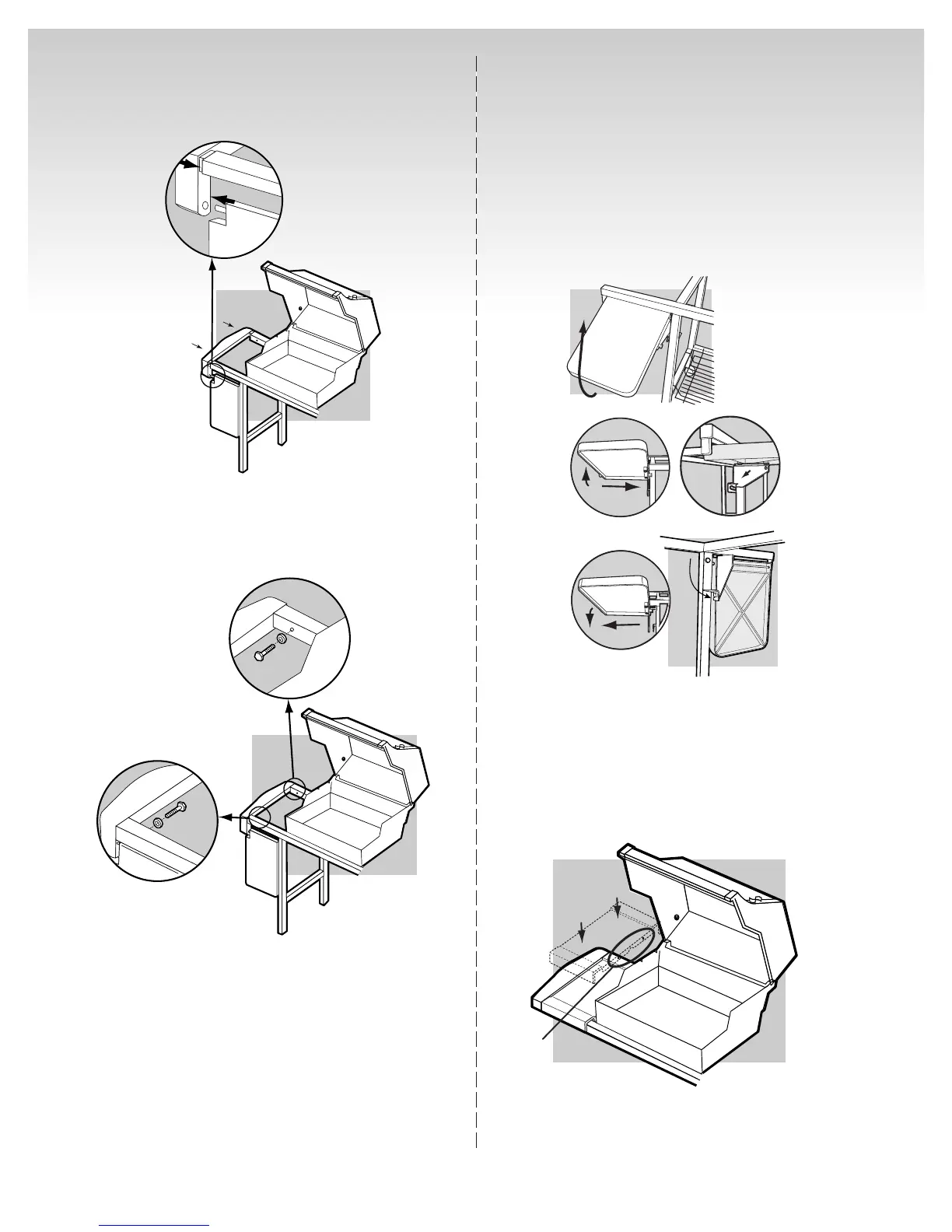

Install the work surface
You will need: work surface.
Place the work surface, so that the front and back
edges fit over the frame, in the area between the left
trim piece and the cooking box as shown.
Do not use the work surface as a cutting board.
(1)
(1) Make sure that the tabs on the side table are to the
right, next to the cooking box.
4.) While holding swing-up work surface in position,
insert the other end of the swing-up work surface
rod into the left end trim piece. Push the trim piece
into the frame.
5.) Add a washer to the bolt and insert it through the
hole in the frame and the hole in the trim piece.
Tighten with a wrench.
To raise swing-up work surface: Lift table all the way up
and slide it to the right, then lower table until you feel it
lock in the up position.
To lower swing-up work surface: Lift table up until it
disengages and slide it to the left. Then lower it all the
way down so that the locking pin on the right side of
the table fits into the locking bracket on the leg, which
will secure the table in the down position.
Do not use the swing-up work surface as a cutting
board.
