11
Getting Started
Refilling or Replacing an LPTank
How Much Fuel is in the Tank?

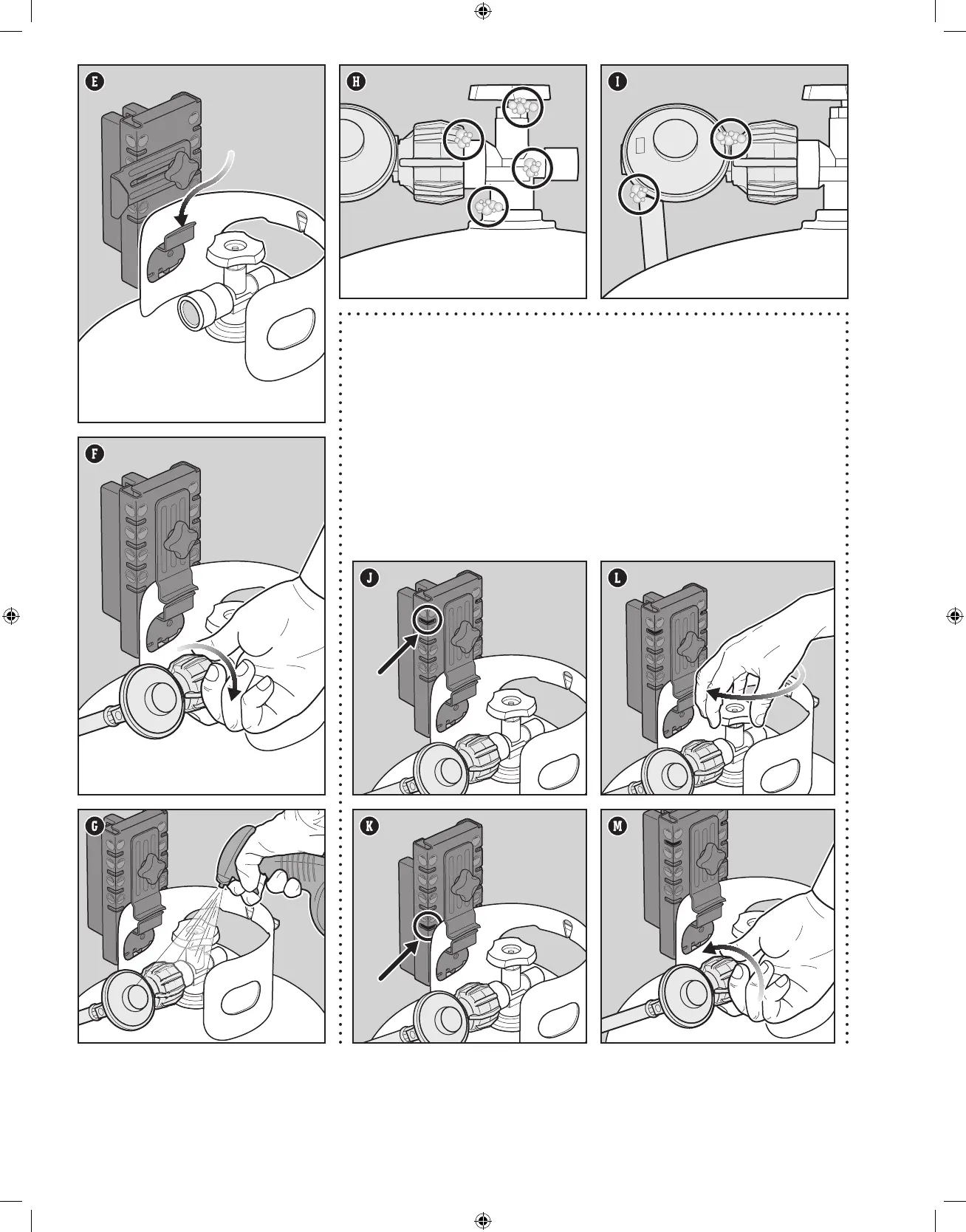

The tank scale indicates the amount of fuel in a standard 20 lb. tank once the tank is hung from the scale.
The fuel level is checked by viewing the red level indicator line, located on scale. When the indicator line
is at the top, the tank is full (J). When it is at the bottom, the tank is empty(K) and needs to be removed to
replace or refill.
Removal of the LP Tank
1) Confirm that the tank valve is fully closed. Close by turning valve clockwise (L).
2) Unscrew regulator coupling by turning counterclockwise by hand (M).
3) Loosen tank hand nut and turn tank lock up out of the way.
4) Lift tank o tank scale.
68021_Gen_II_LP_080116_US.indd 11 8/15/16 10:05 AM
