Fuse Replacement
If your SMOKEFIRE grill is non-responsive even after securing all electrical
connections, it is possible that the grill’s fuse has blown. The grill’s power
supply utilizes a 5 Amp, 120 Volt Cartridge Fuse. This simple and inexpensive
part can be easily replaced with the following instructions:
CAUTION: Only use the properly sized and rated fuse when replacing. Failure to do
so will void your warranty. The correct fuse is:
5x20mm FAST BLOW
1.6A @ 240 VAC

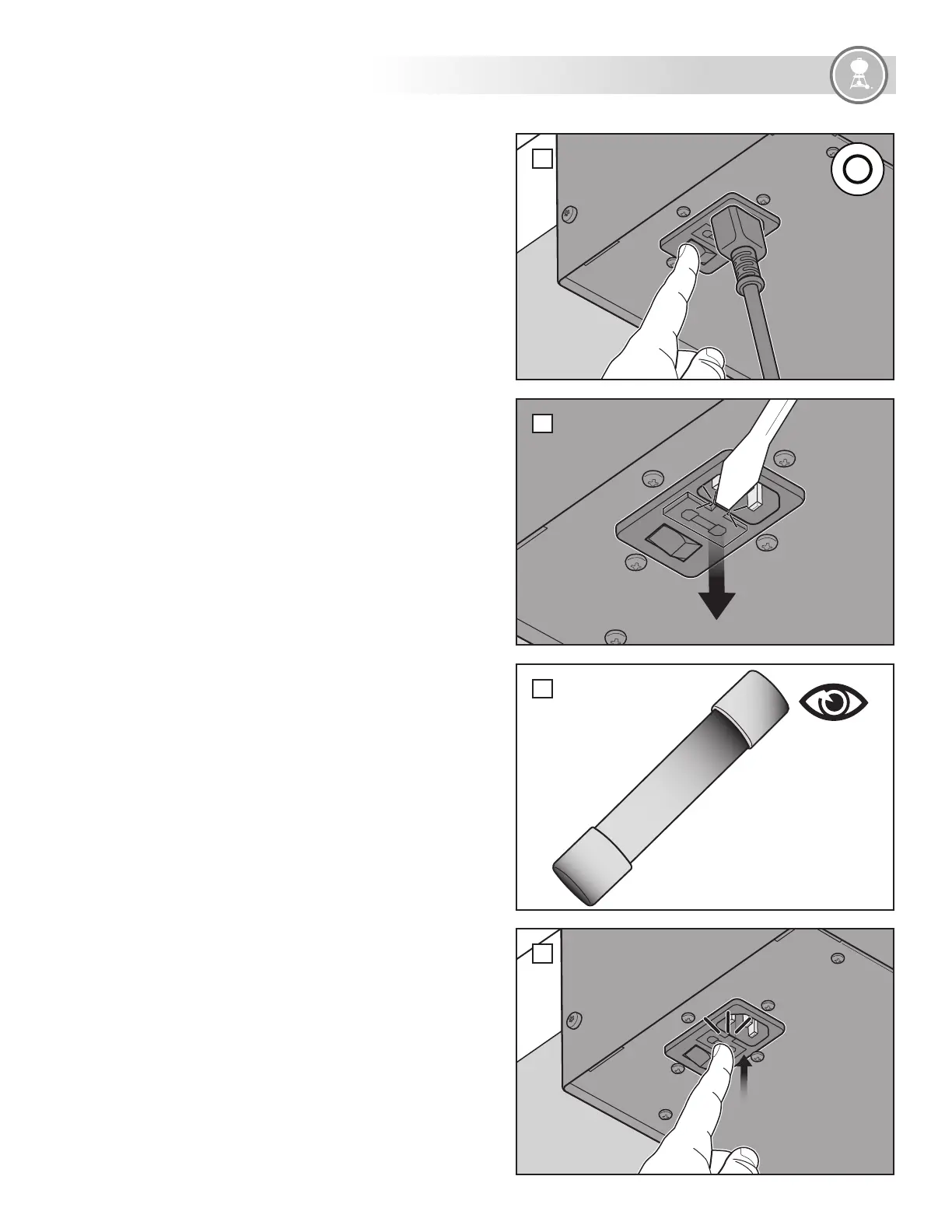

1. Make sure that the grill is completely cool, then power o and unplug the
grill from the power source (A).
2. The fuse is installed inside the fuse holder located on the underside of
the hopper. Use a flathead screwdriver to gently pry open the fuse holder
and remove the fuse (B).
3. Visually inspect the fuse to confirm that it has blown (C).
NOTE: If the fuse has blown, it will look slightly burned or split.
4. Install a new fuse into the fuse holder and reinstall the fuse holder into
the power module (D).
CAUTION: Make sure the fuse holder is fully installed and closed before operating
your grill.
5. Plug in, power on the grill, and begin a cook to allow the controller to run
diagnostics.
