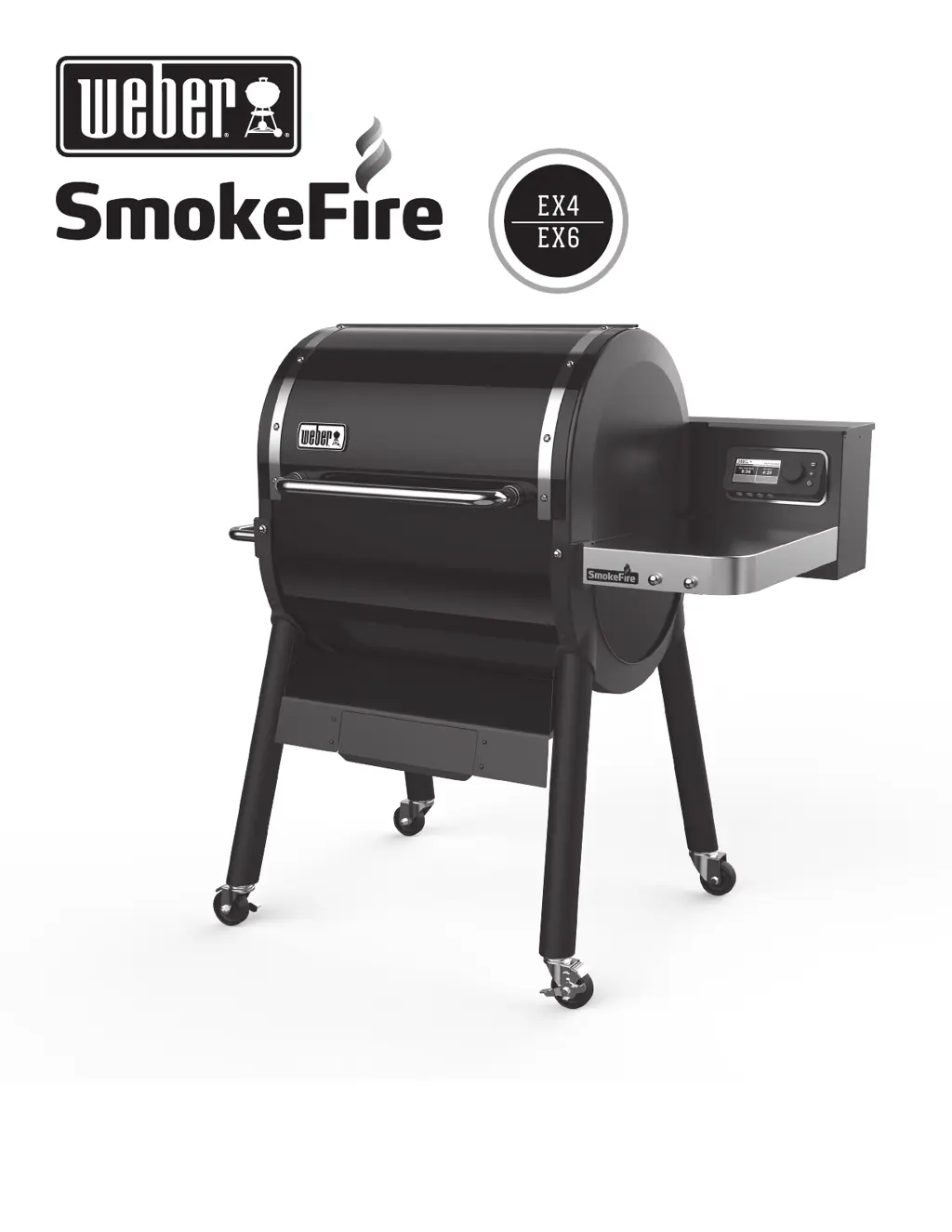

EX4
EX6
OWNER’S MANUAL
A MAJOR CAUSE OF FIRES IS FAILURE TO
MAINTAIN REQUIRED CLEARANCES (AIR SPACES)
TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST
IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY
IN ACCORDANCE WITH THESE INSTRUCTIONS.
Wood Pellet Grill
51779
US
01/14/20

Table of Contents

Other manuals for Weber SMOKEFIRE EX4

Preview: Assembly Guide
Assembly Guide28 pages

Questions and Answers

  • M
    Michael FernandezAug 20, 2025
    What to do if my Weber SMOKEFIRE EX4 is too hot?
    • K
      Kristin TaylorAug 20, 2025
      If your Weber Grill is overheating, follow these steps: 1. Allow the barbecue to complete the shutdown procedure and cool down completely. Keep the lid closed and do not unplug or power it off during this process. 2. Once cool, power off the grill and unplug it. 3. Open the lid and remove the cooking grates, FLAVORIZER BARS, heat diffuser, and heat baffle. 4. Clean the cookbox and burn pot of ash and debris, directing it into the ash and grease system. Ensure the ash is fully extinguished before cleaning. 5. Reinstall the heat baffle, heat diffuser, FLAVOURISER bars, and cooking grates. 6. Clean the ash and grease system, reinstall the drawer, and replace drip pans if needed. 7. Plug the grill back in and power it on.
  • H
    Holly LawsonAug 25, 2025
    What to do if my Weber SMOKEFIRE EX4 Grill displays E1 error?
    • C
      cruzashleyAug 25, 2025
      If your Weber Grill displays an E1 error, it indicates an auger jam. The grill will attempt to clear the jam automatically. If the grill is still hot, it will run the shutdown procedure, so open the lid and wait until it has cooled completely. Do not unplug the grill during this process. Once cooled, power off the grill and unplug it. Remove the cooking grates, FLAVORIZER bars, heat diffuser, and heat baffle. Clean the cookbox and burn pot of any ash or debris. Reinstall the heat baffle, heat diffuser, FLAVORIZER bars, and cooking grates. Clean the ash and grease system, reinstall the drawer, and replace grease drip pans if needed. Finally, plug the grill back in and power it on.
  • L
    Laura ThomasAug 26, 2025
    What does E3 error mean on my Weber SMOKEFIRE EX4 Grill and how to fix it?
    • R
      Robert BrownAug 26, 2025
      An E3 error on your Weber Grill indicates that the grill flame is out. The grill will automatically start the shutdown procedure if it's still hot, so open the lid and allow it to cool completely without unplugging it. Once the shutdown is complete, power off the grill and unplug it from the power source. Remove the cooking grates, FLAVORIZER bars, heat diffuser, and heat baffle from the cookbox. Clean any ash or debris from the cookbox and burn pot. Then, reinstall the heat baffle, heat diffuser, FLAVORIZER bars, and cooking grates. Clean the ash and grease system, reinstall the drawer, and replace the grease drip pans as needed. Finally, plug the grill back into the power source and power it on to begin cooking.
  • K
    Kristen BennettAug 29, 2025
    What does E4 error mean on my Weber SMOKEFIRE EX4 Grill?
    • S
      samanthacoleAug 30, 2025
      The E4 error code on your Weber Grill indicates a communication failure. If the grill is still hot, it will automatically run the shutdown procedure. Open the grill lid and wait until the grill has completed the shutdown procedure and completely cooled. Do not unplug the grill during this process. Once the shutdown procedure is complete, power off the grill and unplug it from the power source. Wait one minute, then plug the grill back in and power it on to begin your cook.
  • M
    Melvin NguyenSep 3, 2025
    What does E7 error mean on my Weber SMOKEFIRE EX4?
    • A
      Ariel Bennett DVMSep 3, 2025
      The E7 error on your Weber Grill indicates a motor failure. If the grill is still hot, it will automatically run the shutdown procedure. Open the grill lid and wait until the grill has completed the shutdown procedure and completely cooled. Do not unplug the grill during this process.
  • W
    William AdkinsSep 4, 2025
    What does E9 error mean on my Weber SMOKEFIRE EX4 Grill?
    • S
      shannon87Sep 5, 2025
      The E9 error on your Weber Grill indicates a low fuel detection error. If the grill is still hot, it will automatically run the shutdown procedure. Open the grill lid and wait until the grill has completed the shutdown procedure and completely cooled. Do not unplug the grill during this process.
  • R
    Rebecca ReyesSep 7, 2025
    What does E8 error mean on my Weber SMOKEFIRE EX4?
    • K
      Kim HallSep 7, 2025
      The E8 error code on your Weber Grill indicates a thermocouple error. If the grill is still hot, it will automatically run the shutdown procedure. Open the grill lid and wait until the grill has completed the shutdown procedure and completely cooled. Do not unplug the grill during this process.
  • E
    Elizabeth HooperSep 8, 2025
    What to do if my Weber Grill shows E1 error?
    • B
      baileyjessicaSep 9, 2025
      An E1 error on your Weber Grill indicates an auger jam. The grill will attempt to clear it automatically. If that doesn't work: 1. Allow the barbecue to complete the shutdown procedure and cool down completely. Do not unplug or power it off during this process. 2. Once cool, power off the grill and unplug it. 3. Remove the cooking grates, FLAVORIZER BARS, heat diffuser, and heat baffle. 4. Clean the cookbox and burn pot of ash and debris, directing it into the ash and grease system. Ensure the ash is fully extinguished before cleaning. 5. Reinstall the heat baffle, heat diffuser, FLAVORIZER bars, and cooking grates. 6. Clean the ash and grease system, reinstall the drawer, and replace drip pans if needed. 7. Plug the grill back in and power it on.
  • T
    tracy78Sep 12, 2025
    What to do if my Weber SMOKEFIRE EX4 shows E4 communication failure error?
    • C
      Carrie LoveSep 12, 2025
      If your Weber Grill displays an E4 error, which indicates a communication failure, here’s what to do: 1. Allow the barbecue to complete the shutdown procedure and cool down completely. Do not unplug or power it off during this process. 2. Once the shutdown procedure is complete, power off the barbecue and unplug it from the power source. 3. Wait one minute, then plug the barbecue back into the power source and power on the barbecue to begin your cooking session.
  • B
    Brian WhitneySep 13, 2025
    What does E9 mean on my Weber Grill?
    • L
      Lisa JordanSep 13, 2025
      An E9 error code on your Weber Grill indicates a low fuel detection error. The barbecue will automatically run the shutdown procedure if the barbecue is still hot. Open the barbecue lid and wait until the barbecue has completed the shutdown procedure and completely cooled. Do not unplug the barbecue or power it off during the shutdown procedure.

Summary

SAFETY

Installation and Usage Instructions

Emphasizes reading all instructions before installing and using the appliance.

Specific Grill Operation Warnings

Details warnings about water, extension cords, temperature probes, and hopper levels.

Hazard Statement Definitions

Carbon Monoxide Safety

Provides guidelines to prevent carbon monoxide poisoning and its symptoms.

General Grill Safety Warnings

Lists various warnings for safe grill operation, including outdoor use and clearances.

WARRANTY

Weber Voluntary Warranty Terms

Outlines the voluntary warranty provided by Weber for defects in material and workmanship.

Owners Warranty Responsibilities

COOKING SYSTEM

SPECIAL FEATURES

WEBER CONNECT Controller Features

Introduces the controller for managing grill operations like startup and temperature settings.

WEBER CONNECT Controller Interface

Details the functions of the Dashboard, Selection Dial, Main Menu, and Cook Program.

Wireless Connectivity Options

Guided Cook Program Function

Temperature Monitoring Probes

BEFORE IGNITING

Choosing a Safe Grill Location

Provides crucial safety guidelines for selecting an outdoor location for the grill.

Pre-Cook Grill Preparation

Outlines routine checks and preparations required before each grilling session.

WEBER CONNECT App Setup

Guides users on downloading and registering the WEBER CONNECT app.

First-Time Grill Startup Preparation

Lists essential steps for initial setup, including unpacking and initial component checks.

Power Cord Handling and Safety

Grill Network Connectivity

GRILL OPERATION

Initial Grill Startup and Seasoning

Details the initial steps for preheating and seasoning the grill for the first use.

Using Temperature Probes for Cooking

Guides on using food temperature probes for precise monitoring and optimal cooking results.

Proper Grill Shutdown Procedure

Details the correct procedure for safely powering down and cooling the grill.

Pellet Changing and Hopper Purging

Standard Grill Startup Procedure

Explains the standard procedure for preheating the grill before each cooking session.

CONTROLLER SETTINGS

Grill Controller Dashboard

Guided Cook Program Functions

Explains how to select and customize guided cook programs for different foods.

Controller Main Menu Navigation

Setting Up a Cook with Probes

Guides on connecting probes and setting desired temperatures or cook programs.

Probe Cook Settings Configuration

TROUBLESHOOTING

Troubleshooting Auger Jam (E1)

Explains the cause and solution for an Auger Jam error code (E1).

Troubleshooting Communication Failure (E4)

Troubleshooting Motor Failure (E7)

Guides on checking motor connections to resolve an E7 Motor Failure error.

Manual Auger Jam Clearing (E1)

Detailed step-by-step guide for manually clearing an E1 Auger Jam error.

Auger;Motor Assembly Handling

Reassembling Auger;Motor and Connections

Hopper Management After Jam Clear

Checking Fan Electrical Connection (E2)

Checking Motor Electrical Connection (E7)

Cleaning Fuel Sensor Window (E9)

Handling Low Fuel Notifications

Glow Plug Replacement Procedure

Detailed instructions for replacing the glow plug assembly.

Reinstalling Glow Plug Assembly

Troubleshooting Grill Power Issues

Troubleshooting steps for when the grill fails to power on, including fuse checks.

Grill Fuse Replacement Steps

Step-by-step guide for replacing a blown fuse in the grill.

Troubleshooting Fan Error (E2)

Details how to check fan connections to resolve an E2 Fan Error.

Troubleshooting Grill Overheating (E5)

Troubleshooting Thermocouple Error (E8)

Correcting Improper Shutdowns

Troubleshooting Flame Out (E3)

Provides steps to address an E3 error indicating the grill flame is out.

Troubleshooting Startup Failure (E6)

Details troubleshooting steps for E6 Start Up Failure, including glow plug checks.

Troubleshooting Low Fuel Detection (E9)

Provides instructions for cleaning the fuel sensor window to clear E9 error.

Glow Plug Replacement Guidance

MAINTENANCE

Recommended Grill Cleaning Schedule

Detailed Grill Component Cleaning

Weber SMOKEFIRE EX4 Specifications

General IconGeneral
Primary Cooking Area432 sq in
Temperature Range200-600°F
Fuel TypeWood Pellets
Warranty5 years
MaterialPorcelain-enameled steel
