weBoost DRIVE X User Manual

DRIVE X VEHICLE SIGNAL BOOSTER
5
ENGLISH
______
Step 3: Connect Coax Cables
To Booster

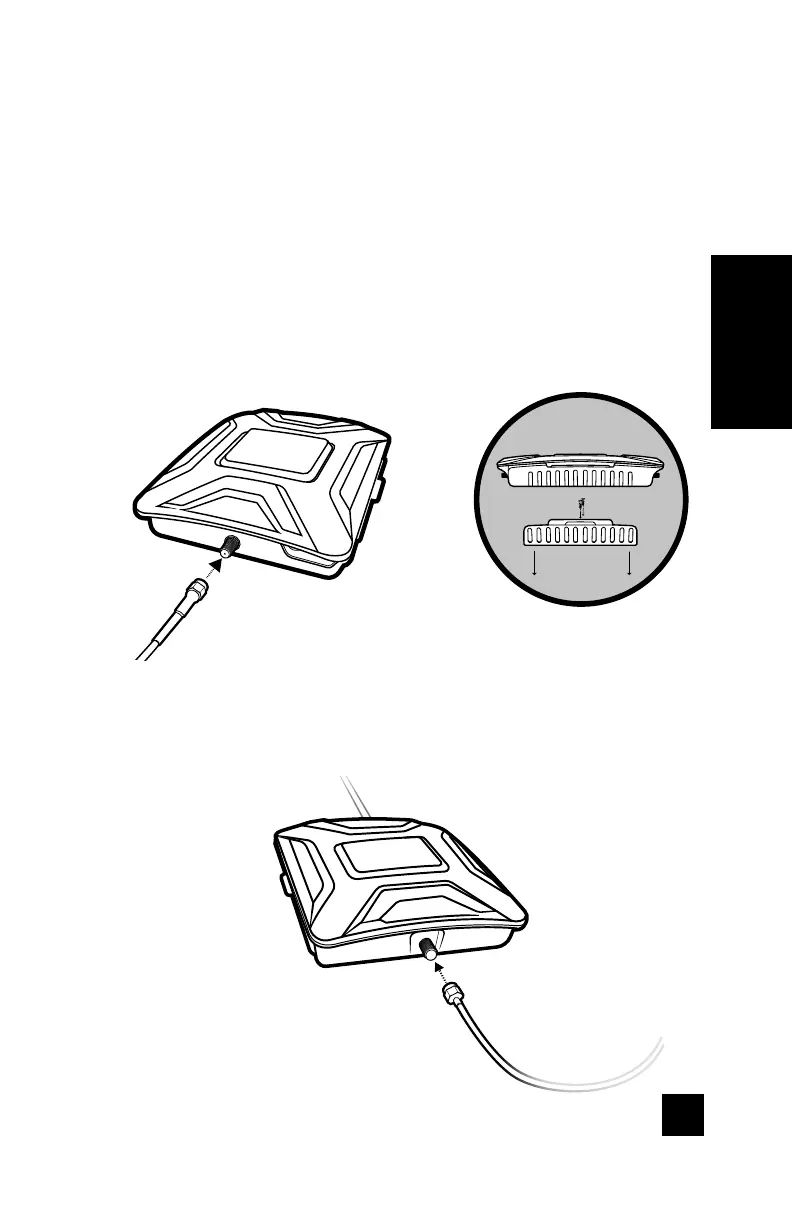

Connect the cable from the Mini-Mag Mount Antenna to the
port labeled “Outside Antenna” on the Drive X booster.
Connect the cable from the In-Vehicle Antenna to the port
labeled “Inside Antenna” on the booster.
In-Vehicle
Antenna
from Outside Antenna
from Inside Antenna
NOTE: Bracket can be used to fasten booster in a specific location if desired.

weBoost DRIVE X Specifications

General

Max Gain	50 dB
Impedance	50 Ohms
Connectors	SMA Female
Power Supply	12V DC
Cable Length	12 feet
Downlink	698-960 MHz, 1710-2700 MHz
Compatibility	All US carriers
Dimensions (Antenna)	6.5 x 4.5 x 1.5 inches
Weight (Antenna)	1.5 lbs
