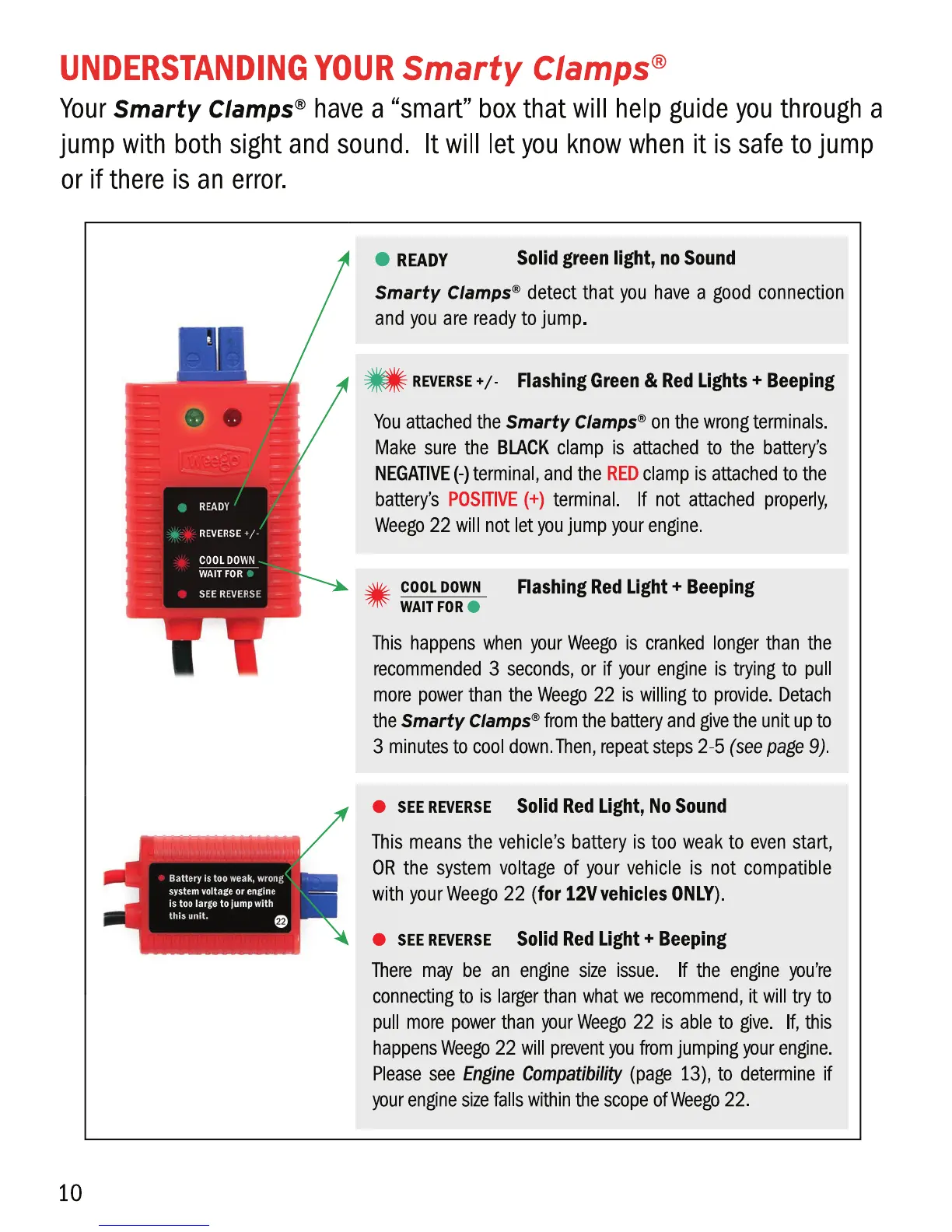

UNDERSTANDING YOUR Smarty Clamps®
Your Smarty Clamps• have a "smart" box that will help guide you through a
jump with both sight and sound. It will let you know when it is safe to jump
or if there is an error.
10
e READY
Solid green light, no Sound
Smarty Clamps• detect that you have a good connection
and you are ready to jump.
- REVERSE+/. Rashlng Green a Red Ughts + Beeping
You attached the Smarty Clamps• on the wrong terminals.
Make sure the BLACK clamp is attached to the battery's
NEGAnYE (-)terminal, and the RED clamp is attached to the
battery's POSI11VE (+) terminal. If not attached properly,
Weego 22 will not let you jump your engine.
~ COOL DOWN Rashlng Red Light+ Beeping
~ WAITFOR e
This happens when your Weefp is cranked longer than the
recommended 3 seconds, or if your engine is trying to pull
more power than the Weefp 22 is willing to provide. Detach
the Smarty Clamps• from the battery and give the unit up to
3 minutes to cool down.lhen, repeat steps 2-5 (see page 9).
e SEE REVERSE Solid Red Light, No Sound
This means the vehicle's battery is too weak to even start,
OR the system voltage of your vehicle is not compatible
with your Weego 22 (for 12V vehicles ONLY).
e SEE REVERSE Solid Red Light+ Beeping
There may be an engine size issue. If the engine you're
connecting to is larger than what we recommend, it will try to
pull more power than your Weego 22 is able to ~· If, this
happens Weefp 22 will prevent you from jumping your engine.
Please see Engine Compatibility (page 13), to determine if
your engine size falls within the scope ofWeego 22.
